Home > Industrial Computer
EC2000 AI Industrial Computer Android Industrial Computer
EC2000 AI Industrial Computer Android Industrial Computer EC2000 AI Industrial Computer Android Industrial Computer EC2000 AI Industrial Computer Android Industrial Computer

EC2000 AI Industrial Computer Android Industrial Computer

2*HDMI, 1* SIM Slot, 2*RS232
1*RS485, 1*Type-C , 4*USB2.0, 1*USB3.0（5G type is not available）
1 *3.54mm Speaker Port（supports three-segment headphone plug）
1*TF Slot, 1*Reset Button, 1*User-Defined Button, 1*Power Switch
Request Quote Need technical support
Description Feature Technical Specification Applications FAQ
Description
 Toputel EC2000 Industrial Computer is the Edge Computing product developed by Toputel Technology for all industries, based on the Rockchip RK3399 ARM architecture, supporting 4G/5G wireless access technology. supports both Android and Ubuntu operationg system for users to choose.


EC2000 industrial computer has rich external ports and excellent image processing capability, can provide high-reliability, cost-effective embedded edge-computing. Can be widely used in intelligent manufacturing, smart energy, intelligent transportation, intelligent security, smart park, smart retail, smart express cabinet, smart healthcare, smart media,and the next generation of IoT industries.

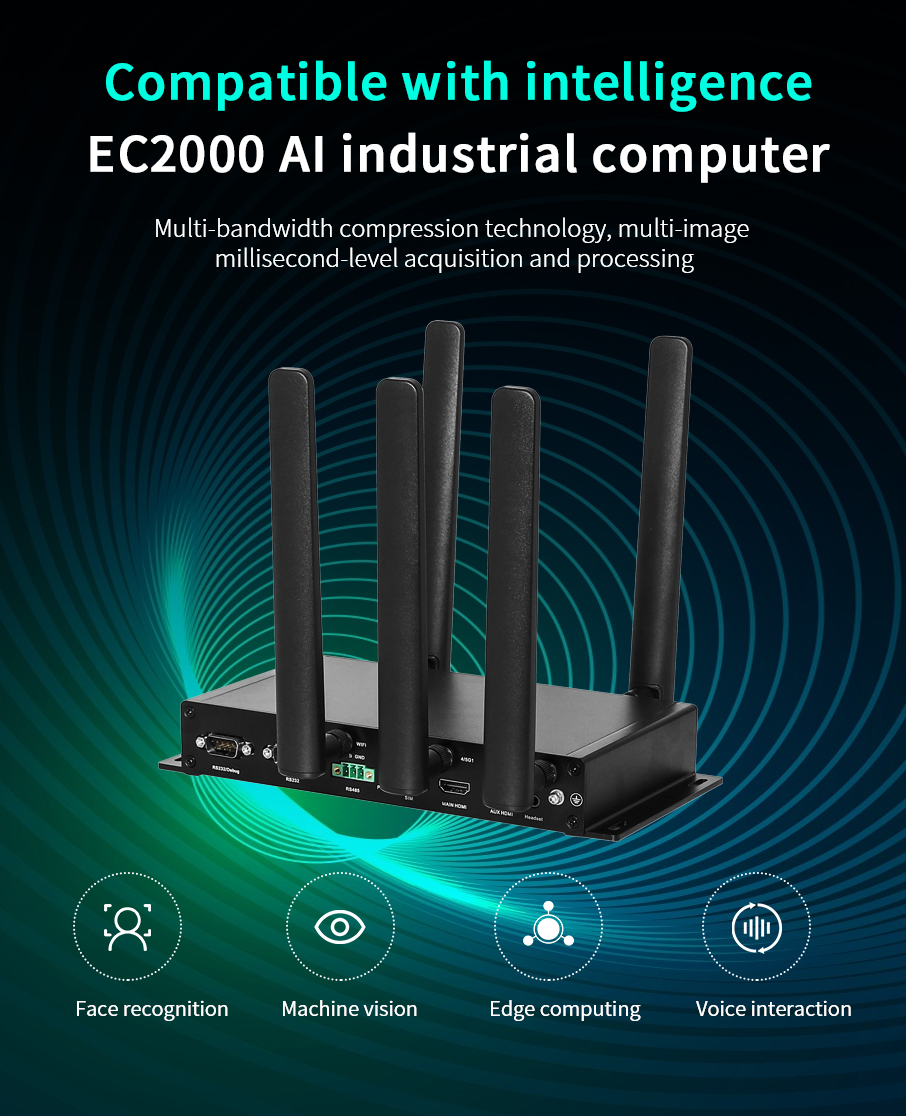

Compatible with intelligence EC2000 5G 4G Al industrial computerEC2000 AI Industrial Computer Android Industrial Computer with strong CPU and GPUHigh performance memory EC2000 AI Industrial Computer Android Industrial Computer EC2000 AI Industrial Computer Android Industrial Computer processing ability
EC2000 AI Industrial Computer Deeply optimized Android systemEC2000 AI Industrial Computer Super audio, video and imageprocessing capabilities EC2000 AI Industrial Computer Multiple link protection mechanism




Feature
Ultra-Powerful Small core CPU architecture + Ultra-powerful Mali-T860MP4 GPU

The RK3399 processor uses big.LITTLE size core architecture, 2*Cortex-A72 processor + 4*Cortex-A53 processor structure, has greatly optimized integers, floating points, memory etc., The overall performance, power consumption and core area  has revolutionary improvement.

RK3399’s GPU uses 4*core ARM new generation of high-end image processors Mali-T860, integrating more bandwidth compression technologies such as smart superimposing, ASTC, local pixel storage etc., and supports more graphics and computing ports, the overall performance enhancing 45% from the previous generation.

  1. Ultra-Powerful Ability in Audio&Video and Image Processing

Supports H.264/H.265/VP9 4K@60fps HD video decoding and display, as well as 10-bit Deep Color HD decoding and image enhancement technology

Dual ISP pixel processing power of up to 800MPix/s, support dual camera data simultaneous input, support 3D, depth information extraction and other advanced processing.

HDMI/eDP port, support 2560×1600 screen display and dual screen display

  1. Super Compatibility and Scalability


 RK3399 has the hardware advantages of 20ms delay, 90Hz refresh rate, 4K UHD decoding, 2K Low Persistence screen, high-precision positioning tracking system, ultra-strong HDR camera technology, superior 3D processing power, and ultra HD H.265/H.264 video resolution.

RK3399 processor provides faster computing speed and visuals effect for the terminals by its powerful CPU, CPU, faster interface standards & transmission speed. support H.265/VP9 encoding-enabled 4K@60fps10bit video playback and output capabilities, better image decoding, rich gaming engine, and 3D image processing ability.



Technical Specification
Function
Modules		 Function Description
Operation System Available OS: Android 7.1/Ubuntu 16.04
Supports Android Marketplace app installation, self-developed app installations, background service monitoring app, specifying app full-screen auto-open and exception auto-recovery
5G/4G/Wifi Support 5G/4G Automatic dial-up, Support 802.11 B/G/N
Supports the link detection function,realizes the mutual backup of wired and wireless links
State Statistical Record the diagnostic information of each function module, support peripheral hardware detection, traffic Statistics, APP running monitoring
Clock synchronization NTP Clock synchronization and remote management platform clock synchronization,
time zone can be set
Safety Management Secure access control and  firewall support
Remote Management Support remotely upgrade the system, remote APP upgrade and rollback,  remote cloud platform statistics and analysis device & running status reporting, cloud platform management for devices fault
Time Switch Support time switch
Audio&Video Output Supports 2*HDMI port,  max. resolution 4K*2K@60Hz,
1*eDP 1.3 (4-wire, 10.8Gbps), max. resolution 4K*2K@60Hz
Support dual screen synchronous/asynchronous display（HDMI+HDMI，HDMI+eDP）
Can be extensible to support 1*LVDS Port, supports 3.5mm headphone jack standard output


Product Model EC2000-4G EC2000-5G
CPU Rockchip RK3399 based on 28nm HKMG Processing,
ARM 6*core 64-bit processor: 2* Cortex-A72+4* Cortex-A53,highest main frequency 2.0GHz
GPU 4*core ARM Mali-T860
Support OpenGL ES1.1/2.0/3.0/3.1/3.2, OpenCL1.2, DirectX11.1 etc.,
Support AFBC（Frame cache compression）
Memory 2GB LPDDR4 Dual-channel high-speed memory（Optional：4GB）
Storage 8GB EMMC5.1 High-speed storage（Optional: MAX.128GB）
Display 2*HDMI Ports，support max. resolution 4K*2K@60Hz
1*eDP 1.3（4 wires，10.8Gbps），support max. Resolution 4K*2K@60Hz
Support dual screen synchronous/asynchronous display（HDMI+HDMI，HDMI+eDP）
Can be extensible to support 1*LVDS Port
Wireless Network LTE-FDD:B1/B3/B5/B8
LTE-TDD:B34/B38/B39/B40/B41
WCDMA:B1/B8 ; TD-SCDMA:B34/B39
EVDO/CDMA:BC0; GSM: 900/1800MHz		 5G NR: N1，N28，N41，N78，N79
LTE-FDD：B1/B3/B5/B8
LTE-TDD：B34/B38/39/B40/B41
WCDMA：B1/B8
WIFI/Bluetooth 802.11 b/g/n，BT4.0
RJ45 1*100/10Mbps 1*1000/100/10Mbps

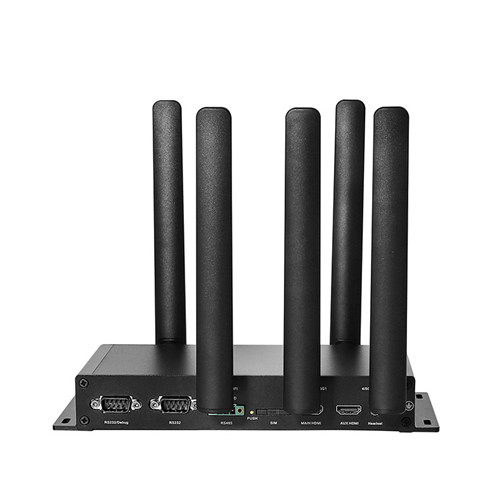

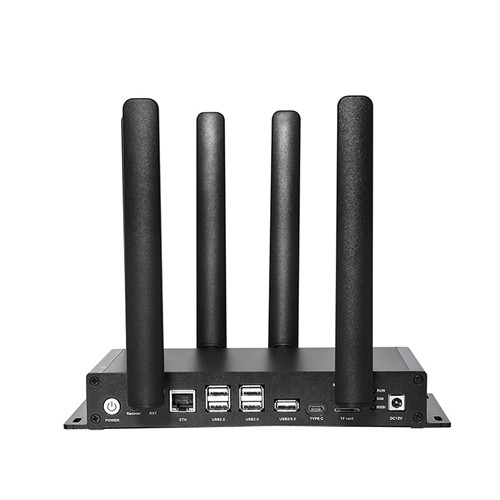

Standard Ports		 2*HDMI Port, 1* Standard SIM Slot, 2*RS232 Series Port
1*RS485 Series Port, 1*Type-C Port, 4*USB2.0, 1*USB3.0（5G type is not available）
1 *3.54mm Speaker Port（supports  three-segment headphone plug）
1*TF Slot, 1*Reset Button, 1*User-Defined Button, 1*Power Switch
Power Input DC12V 2A
Dimension 235*115*35mm ((excluding antenna & pendant))
Power Consumption ≤24W
Housing High strength metal house
Operationg Humidity 10～95%RH
Operating Temp. -30～+85°C
Storage Temp. -40～+85°C
Mounting desktop、wall-mounted


Applications

 Application


Intelligent manufacturing: data acquisition, communication coordination and control between large-scale machines (including robots), remote control and maintenance of equipment；

Smart energy: real-time data acquisition and transmission, remote scheduling and coordinated control, multi-system high-speed interconnection, intelligent distributed feeder automation of power grid；

Smart transportation: 5G communication, big data, cloud services and artificial intelligence will create a new generation of smart transportation systems；

Intelligent Security: HD video surveillance and transmission；

Smart logistics: whole-process logistics monitoring and tracking, DRONE delivery, intelligent storage；

Intelligent warehousing: AGV vehicle coordination, 5G machine vision application, warehouse management system remote scheduling；

Smart Industrial Park & Community: Massive sensor data collection and processing, AI video monitoring, smart factory, smart travel, smart medical care, smart home, smart finance and other scenarios integration；

Smart Healthcare: telemedicine monitoring, telemedicine real-time consultation, telemedicine emergency rescue guidance；

Intelligent self-service terminal：unmanned new retail，data interconnection between commodity origin and retail terminal, intelligent transfer of goods, virtual experience;

Smart media: HD live video, virtual studio, news content production.

Typical topology

Smart transportation: 5G communication, big data, cloud services and artificial intelligence will create a new generation of smart transportation systems
FAQ
Q
What is the price?
A
  • Our prices will be adjusted according to raw material cost and other market factors. Please kindly contact us for the latest price list.
Q
What is your MOQ?
A
  • No MOQ for sample. Generally, the larger the quantity, better the unit price and freight will be
Q
​​​​​​​What is your Trade terms?
A
  • Trade terms EXW as default. More trade terms such as FOB, FCA etc for optional. We need to make official export declaration for the goods
Q
Which payment method is accepted?
A
  • For small batch, customer can order the product from our website directly.
    For big batch, we accept the payment term by T/T. 30% downpayment, and 70% of the balance paid before shipment.
More
Q
​​​​​​​What's the lead time?
A
  • Sample order: 5-14 days
  • The bulk order: about  2-4 weeks, depends on the raw material leadtime, especially up to the chipset.
Q
How about the shipment?
A
  • By Express, such as DHL, Fedex, TNT, UPS, EMS etc
  • By Sea
  • By Air
  • By railway
  • Forwarder
  • We will help to select the most economical way for your reference
Q
What certification you obtained for your products?
A
  • Some products win approval of CE, ROHS, Weee etc. If you have specific approval requirements, please kindly feel free to contact us.
Q
How long is the product warranty period?
A
  • Warranty period is 1 year, calculated from the date of delivery. During the warranty period, we will provide replacement parts for free for the product quality problems caused by its own design failure.
Less
