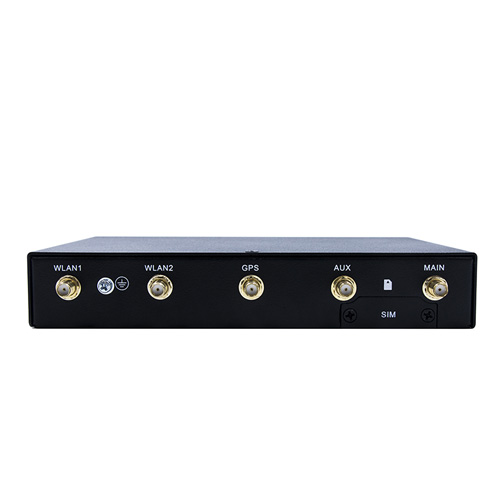

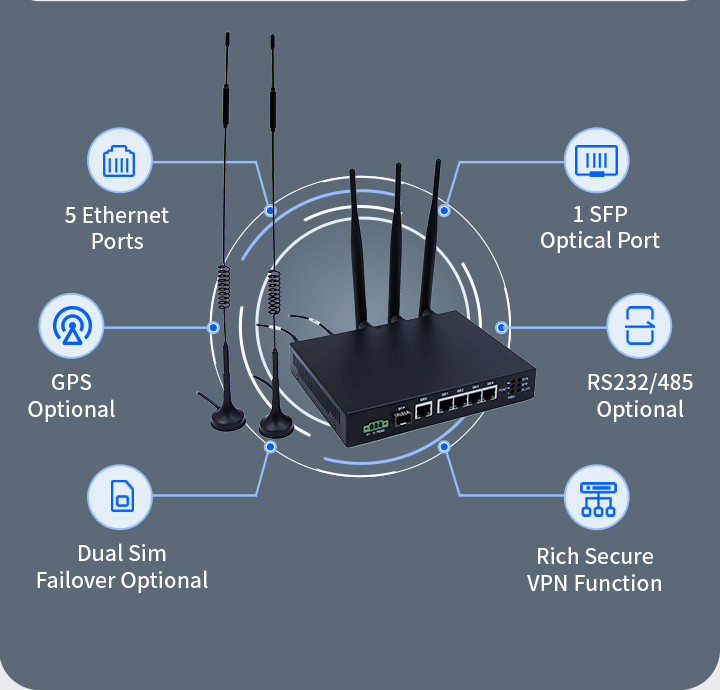

RG4000 Quint Ethernet Industrial Wireless WIFI LTE Router

5*1000M ethernet ports
1*1000M SFP port
1*SIM Card Slot port
2*4G antenna ports
2*WIFI antenna ports
1*GPS antenna ports(optional)
1*FUNC button;1*standard 3-core power port
1*SIM port (optional); 1*USB2.0 (optional)
1*RS232/RS485 (optional)
Description Main Features Technical Specification Applications FAQ
Description

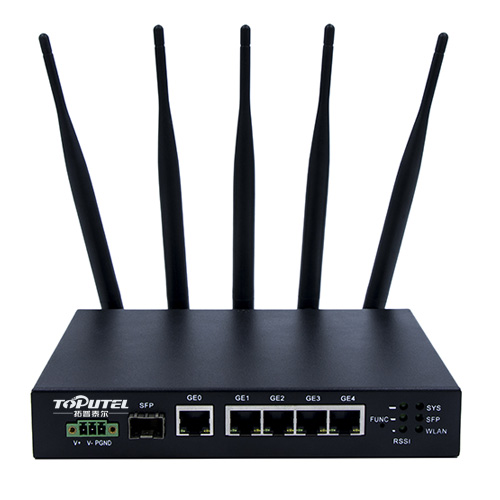

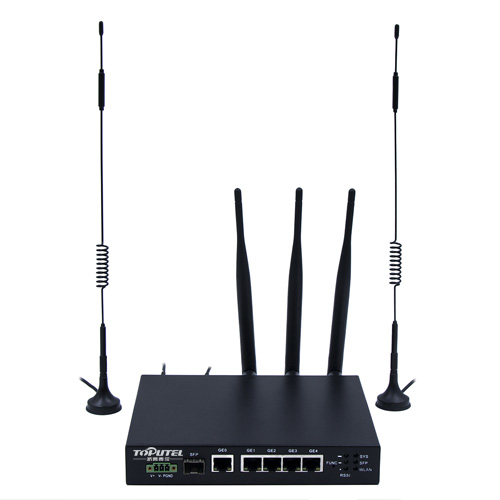

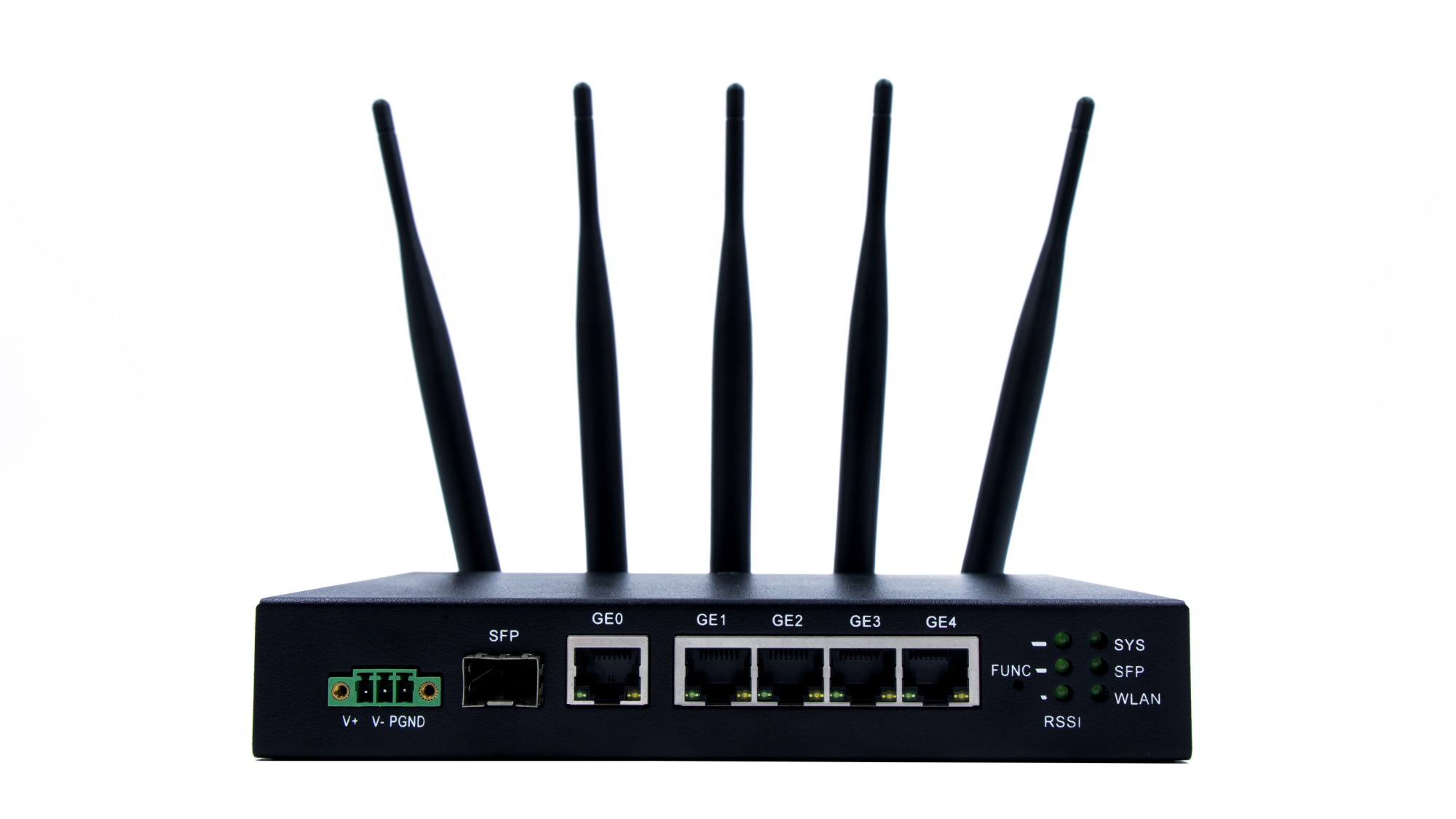

Toputel RG4000 Quint Ethernet Industrial Wireless WIFI LTE Router
Outline

Toputel RG4000 Quint Ethernet Industrial Wireless WIFI LTE Router,integrating 4G/WIFI/Routing/Switching/Security and other network application technologies, compatible with 4G/3.5G/3G/2.5G network, configuring 5*1000M ethernet ports and 1*1000M SFP optical port, 2*Cellular Antennas, supports direct docking with GPON OLT, Supports 802.11 b/g/n WIFI.






Main Features

 Main Features

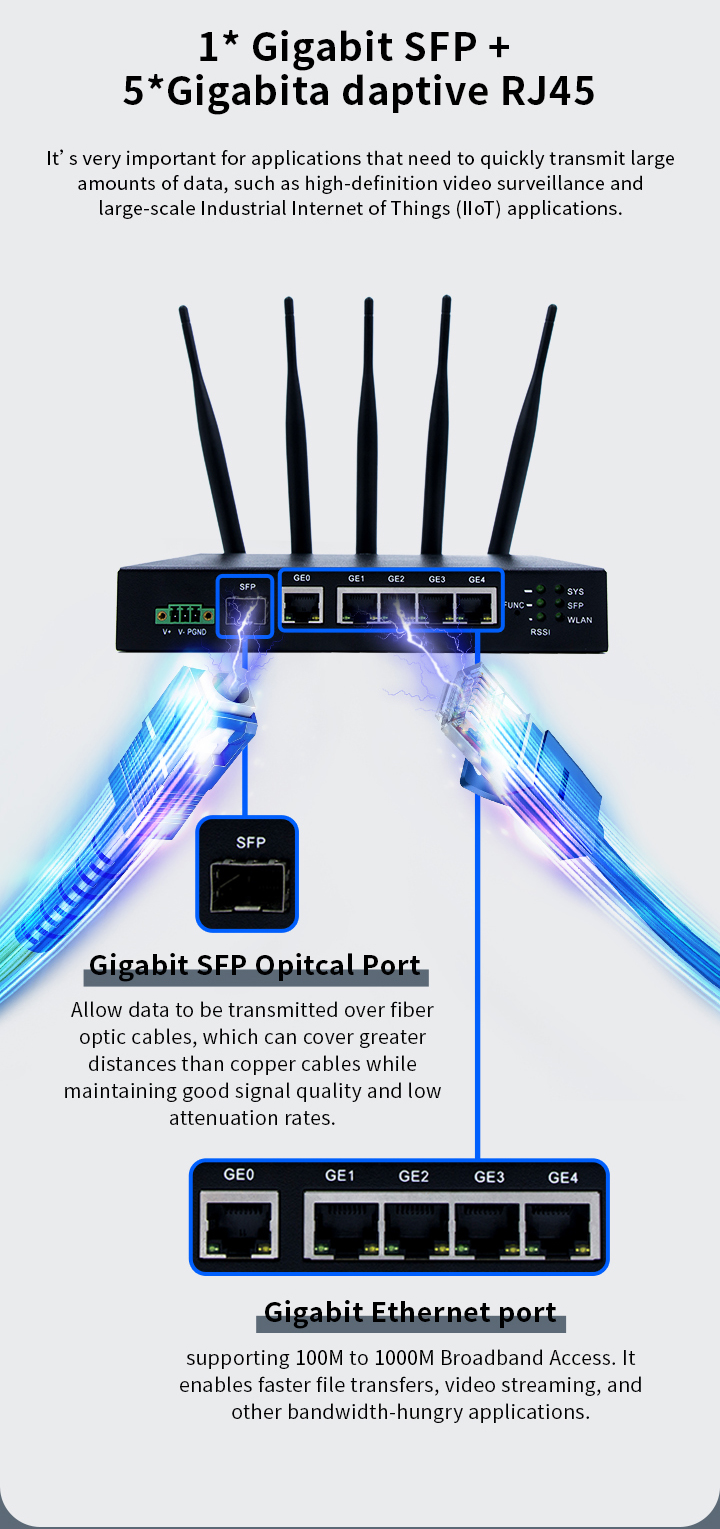

  1. Supports 5*10/100/1000M ethernet ports,WAN/LAN can be configured freely

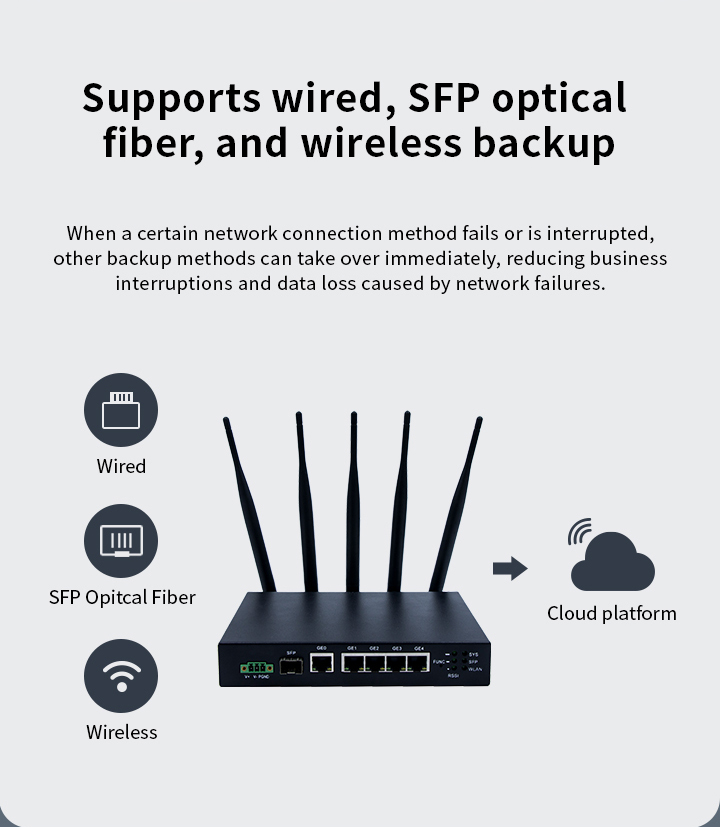

  2. Supports 1 or 2 of 100/1000m SFP optical port, which provides direct access to the optical network and enables full switching with ethernet ports. can also directly insert the GPON module to interconnect with GPON OLT as an ONU

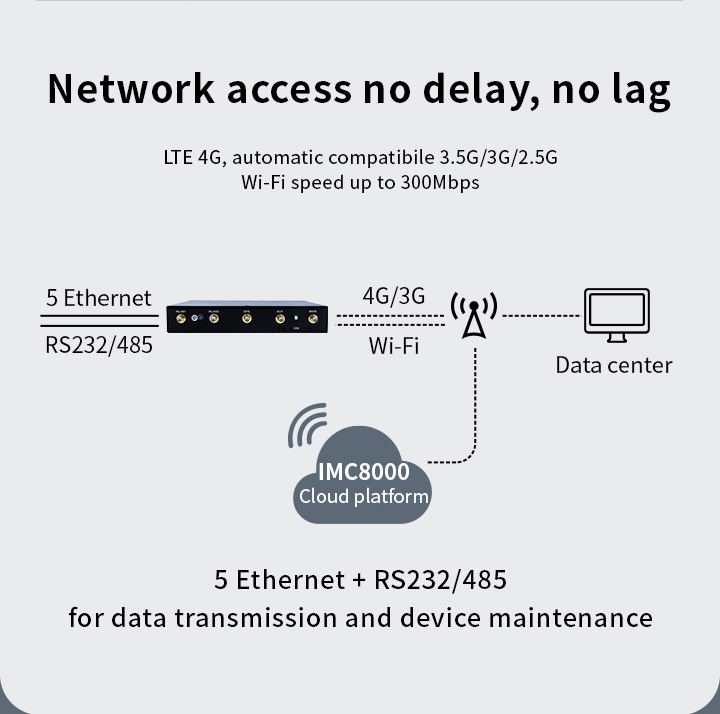

  3. Compatible 4G/3.5G/3G/2.5G network
  4. Supports multiple protocols: TCP/IP, UDP, HTTP, TELNET, ICMP, DHCP, PPPOE, DNS, DDNS, etc
  5. Supports static routes and RIP/OSPF routing protocols
  6. Supports ACL and NAT functions
  7. Supports QoS protocols such as priority mapping, traffic policing, traffic shaping, congestion management, and rate limiting
  8. The router with RS232/RS485 interface supports IEC-60870-5- 101/104, Modbus protocol
  9. Supports the HQoS mechanism that provides hierarchical scheduling based on multi-level queues and distinguishes services and users, and optimizes the transmission of video streams
  10. Supports firewall, packet filtering, and URL filtering
  11. Supports VPN functions such as GRE, L2TP, IPSEC, PPTP,  EOIP, OPENVPN
  12. Supports 802.1Q VLAN and QinQ function
  13. Supports link detection functions such as DLDP, and can quickly switch to the backup link based on the detection result
  14. Supports logging
  15. Supports port mirroring

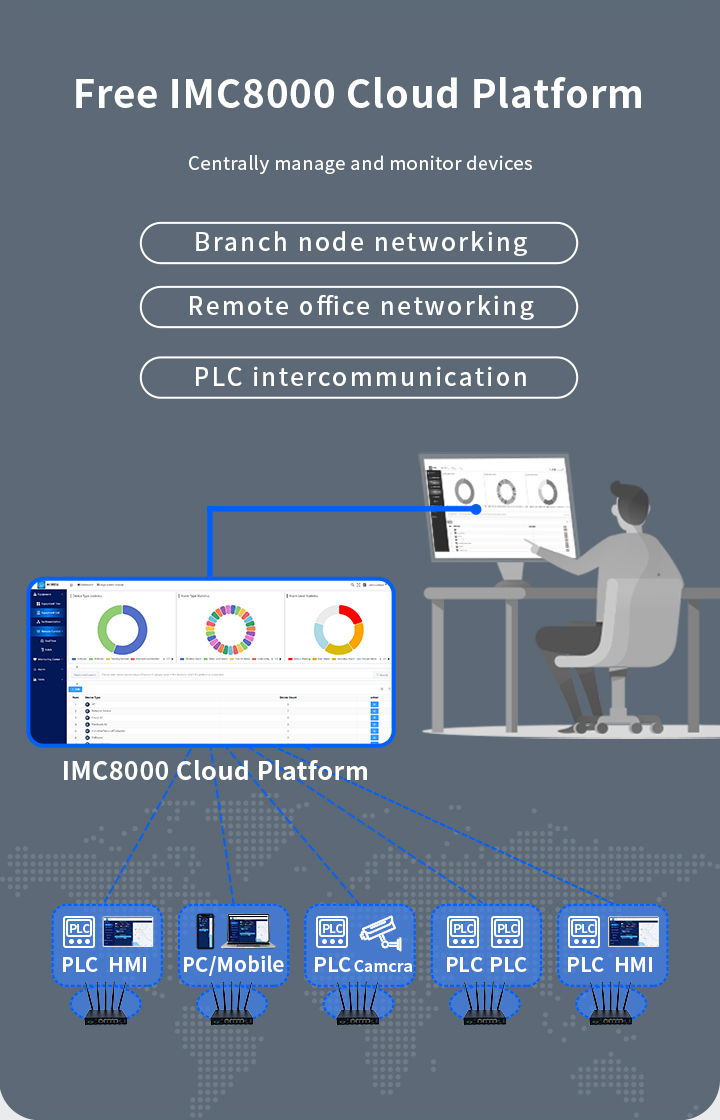

  16. Supports CLI, WEB, and SNMP/TR069 centralized NMS
  17. Supports version upgrade and rollback
Technical Specification
Model RG4000-V8 RG4000-V8W RG4000  RG4000-H  RG4000-S RG4000-SW RG4000-E
Pic.
Fixed port RG4000-V8 fixed ports
8*10/100/1000M ethernet ports
2*1000M SFP ports
1*Console port
1*SIM Card Slot port
2*4G antenna ports
1*GPS antenna ports
optional);
1*FUNC button
1*USBport
1*standard 3-core power port

RG4000-V8W fixed ports
On basis of  RG4000-V8added 3*WIFI antenna ports
RG4000 fixed ports
5*10/100/1000M ethernet ports
1*100/1000M SFP port
1*SIM Card Slot port
2*4G antenna ports
2*WIFIantenna ports
1*GPS antenna ports (optional);
1*FUNCbutton
1*standard 3-core power port
1*SIM port (optional);
1*USB2.0  (optional);
1*RS232/RS485 (optional).

RG4000-H fixed ports
On basis of RG4000added 1*SIM port1*USB2.0port1*standard 3-core power port (1 main + 1 aux
RG4000-S fixed ports
5*10/100M ethernet ports
1*SIM Card Slot port
2*4G antenna ports
1*RS232/RS485 port
alternative);
1*FUNC button
1*USB port
1*standard 3-core power port

RG4000-SW fixed ports
On basis of  RG4000-Sadded 2*WIFI antenna ports

2*100M ethernet ports
1*WAN+1*LAN);
2*SIM Card Slot port
2*4G antenna ports
1*GPS portoptional);
1*RS232/RS485 serial port
alternative
1*relay output port
1*FUNCbutton
1*standard 3-core power port
Cellular Antennas 2 pcs
Network Type Support entire networkTDD-LTEFDD-LTETD-SCDMAUMTSEVDOEDGECDMA1xGPRS
WIFI - 802.11 a/n/ac866Mbps
3*3 MIMO
802.11 b/g/n300Mbps,dual tunnels - 802.11 b/g/n300Mbps,dual tunnels -

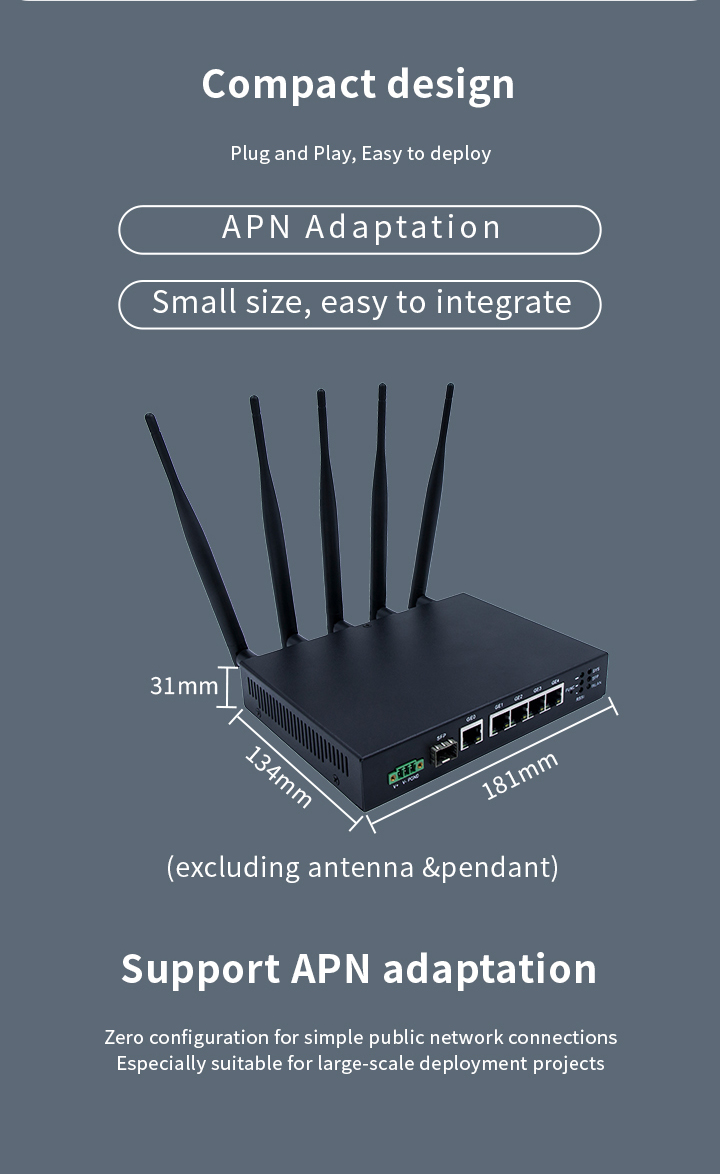

Dimension 271*154*33mm (excluding antenna & pendant) 181*134*31mm
(excluding antenna &pendant)
91*111*32mm
(excluding antenna )
Power Consumption ≤18W ≤15W ≤10W
Voltage Input DC12V 9V-48V 9V-16V  9V-16V

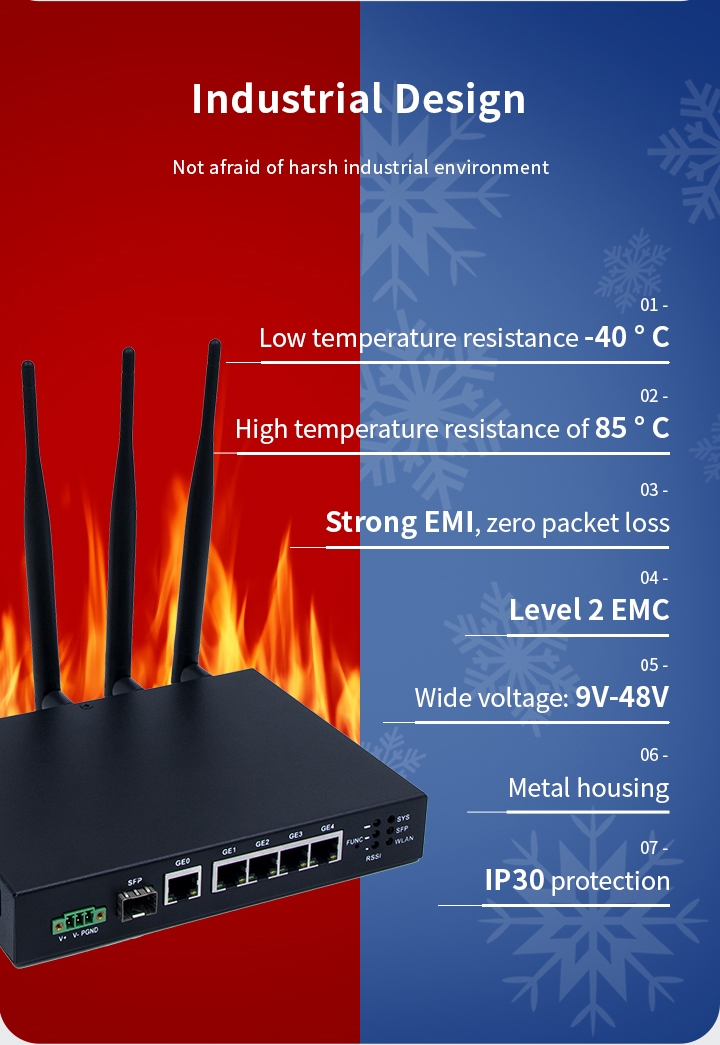

Housing High strength metal housing
IP Degree IP30
Operating humidity 1095%RH
Operating temp. -20+75°C -40+85°C
Storage Temp. -40+85°C
GPON ONU Supported when GPON optical module is inserted in the optical port -
Mounting desktopwall-mounteddin-rail
