Home > Network Switches > Campus Switches > 24 Ports

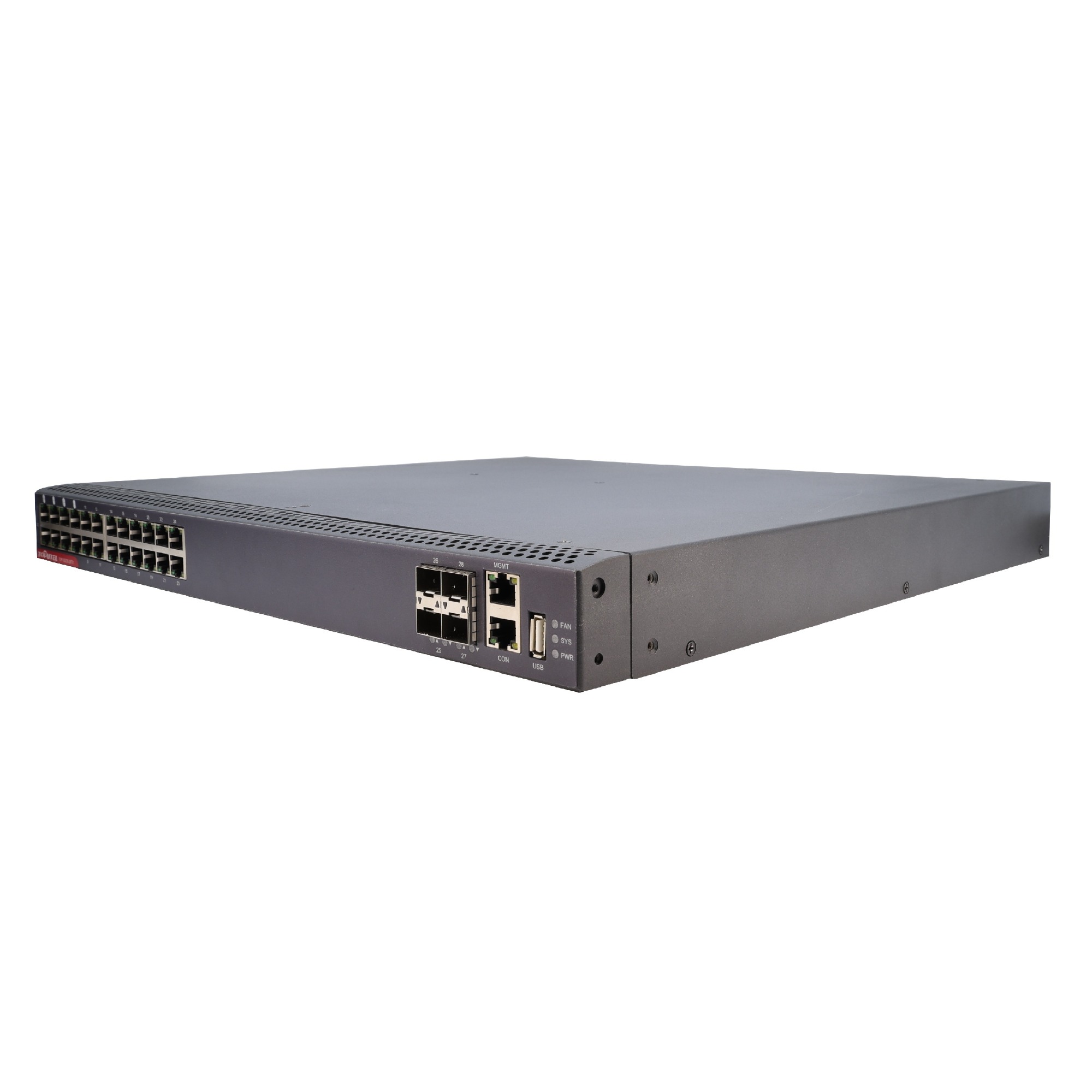

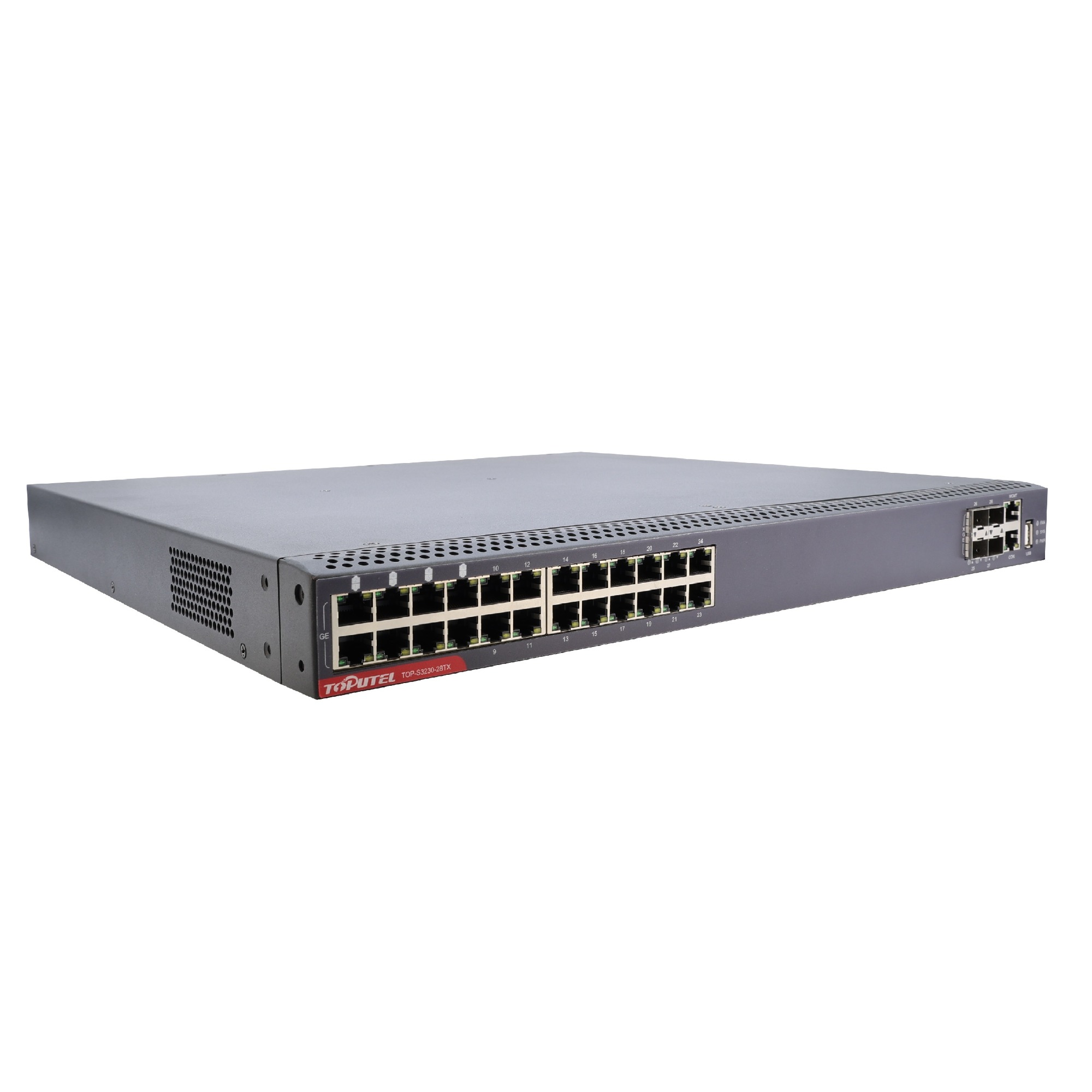

24-Port Gigabit Layer3 Managed network Switch | Hot-Swappable Redundant PSU & 10G Uplinks | TOP-S3230-28TX
24-Port Gigabit Layer3 Managed network Switch | Hot-Swappable Redundant PSU & 10G Uplinks | TOP-S3230-28TX 24-Port Gigabit Layer3 Managed network Switch | Hot-Swappable Redundant PSU & 10G Uplinks | TOP-S3230-28TX 24-Port Gigabit Layer3 Managed network Switch | Hot-Swappable Redundant PSU & 10G Uplinks | TOP-S3230-28TX 24-Port Gigabit Layer3 Managed network Switch | Hot-Swappable Redundant PSU & 10G Uplinks | TOP-S3230-28TX 24-Port Gigabit Layer3 Managed network Switch | Hot-Swappable Redundant PSU & 10G Uplinks | TOP-S3230-28TX

24-Port Gigabit Layer3 Managed network Switch | Hot-Swappable Redundant PSU & 10G Uplinks | TOP-S3230-28TX

Product model : TOP-S3230-28TX，
24 x 1GE  ports,
4 x 10GE SFP+ ports for uplink,
Layer3 managed network switch,
Two options: US or China chip. The device cost difference is significant.

Gigabit access to campus networks / data center servers
Request Quote Need technical support
Description FAQ
Description

TOP-S3230-28TX is Layer3 Gigabit access switches with Dual redundant PSU

24-Port Gigabit Ethernet Layer3 Managed Access Switch  TOP-S3230P-28TX  featurs with hot-swappable dual redundant power modules, ensuring  99% power supply stability.  It supports VLAN segmentation and port mirroring for simplified management and maintenance, and also supports LACP (link aggregation, improving uplink redundancy). Additionally, its 10 Gigabit uplink ports enable faster data transmission.


Market demand for this switch is substantial.
thanks to its affordable pricing and wide applicability across diverse scenarios, for instance:
● Medium-sized enterprise office network
   Limited budget but requiring Gigabit access, it connects devices like computers and printers to enable internal data transmission and resource sharing.
● Internet cafe network
   High bandwidth is required, transmission is limited to under 100 meters, and PoE is not needed.
● Data center servers
   Gigabit access network, 10-Gigabit bandwidth uplink






Product Features

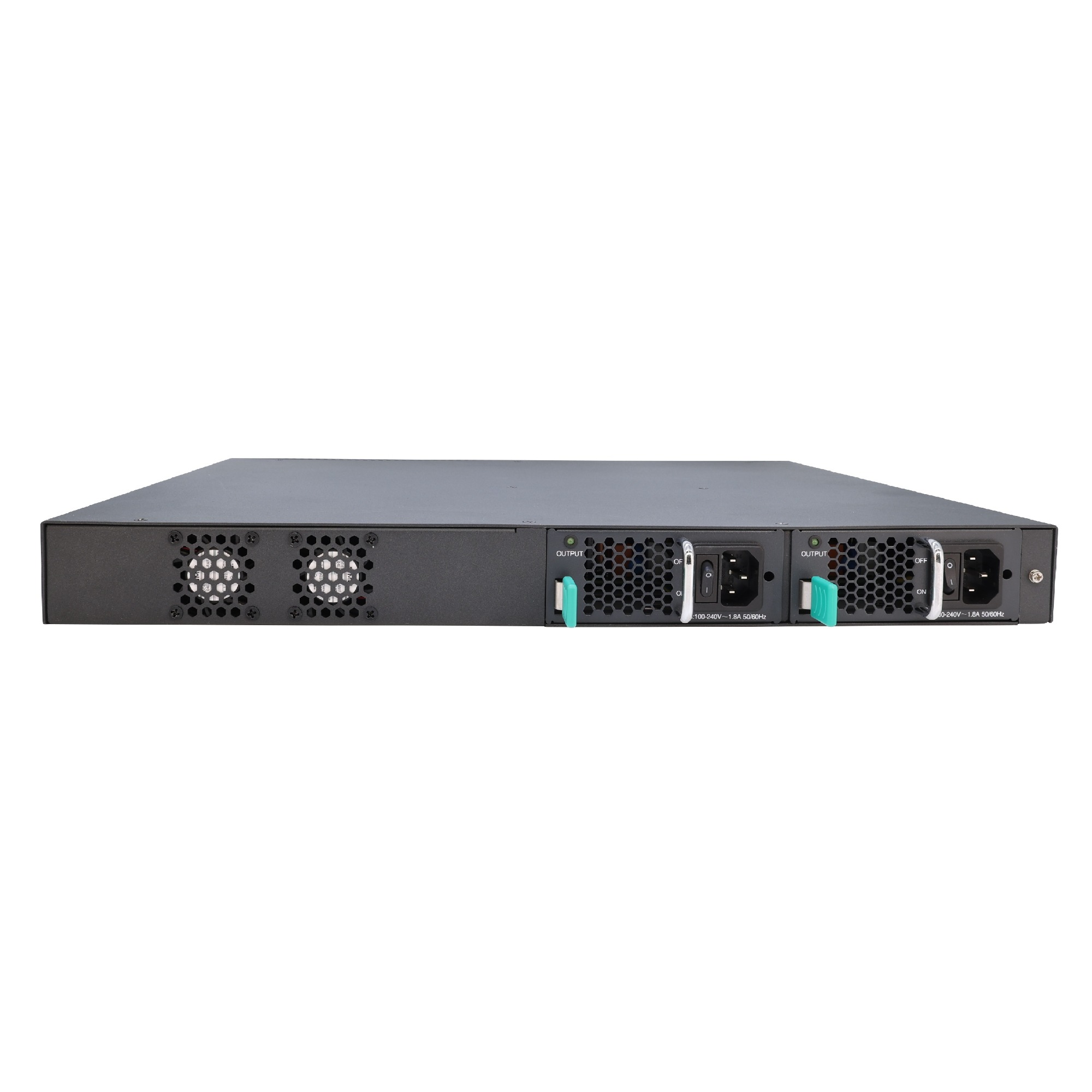

● Hot-swappable dual modular PSU, AC and/or DC power supply, supporting 1+1 redundancy
● Multiple network security strategies, real-time monitoring, to ensure stable network operation
● Full support for IPv4/IPv6 layer 2 and 3 protocols
● Multiple network management methods, simple and easy network maintenance





Product Specification

Product Name TOP-S3230-28TX Series
Layer3 Network Switches
Performance Parameters
Packet forwarding rate (PFR) 150Mpps
Switching capacity(SC) 120 Gbps
Processor Dual-core 1.1GHz
RAM Memory 1GB of DRAM
Flash 512MB
Hardware specifications

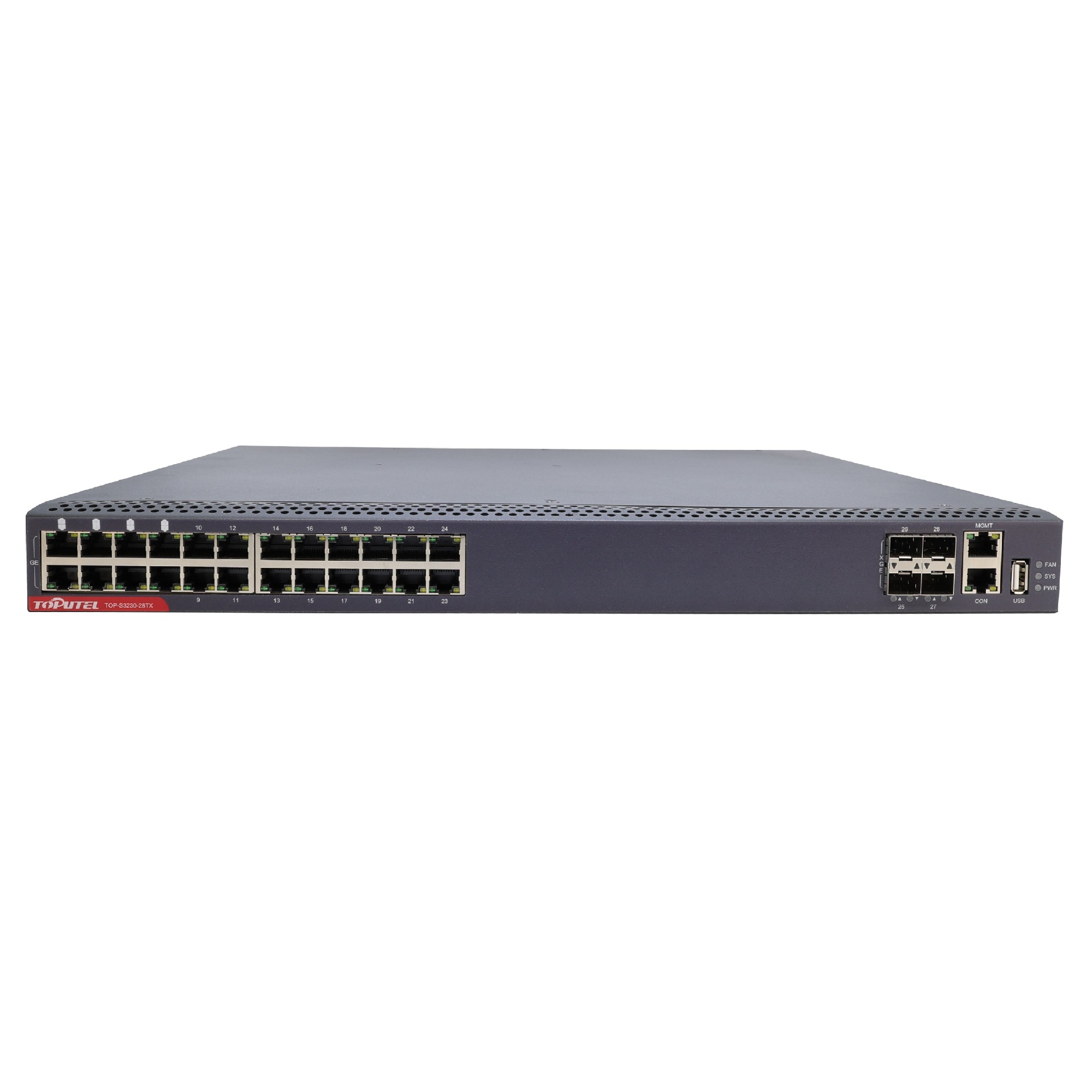

Physical port 24x 100/1000M electrical interfaces, 4 x 10G SFP+ optical interfaces
Management interface 1 x console configuration port, 1 x RJ45 network management port
USB  interface 1
Dimensions (W×D×H) 440*4 14.5 *44mm
Host power consumption (MAX) 73 W ( non-PoE version )
400W ( PoE version )
power supply Input voltage (AC): 100V ~ 240V, 50Hz ~ 60Hz
Input voltage (DC): -40～-57V
temperature Operating temperature: -10℃～55℃
Storage temperature: -40°C to 70°C
humidity Operating humidity: 10% ~ 90%, non-condensing
Storage humidity: 5% to 95% non-condensing
MTBF time 100,000 hours
MAC capacity 64K​
VLAN 4K
Service port lightning protection capability 7KV
Software Features
Link layer protocol and technologies LAN Supports MAC address learning limit; static MAC configuration; black hole MAC
Dynamic and static ARP, proxy ARP, gratuitous ARP
Ethernet, Ethernet II, VLAN, 802.3x, 802.1p, 802.1q
VLAN based on port , MAC, protocol, IP subnet
Support VLAN Mapping and Voice VLAN
QinQ, Flexible QinQ
STP/RSTP/MSTP
LACP (IEEE802.3ad)
Many-to-one port mirroring, remote port mirroring ERSPAN, flow mirroring
Network Protocol Routing Static routing
RIP v1/v2, RIPng
OSPF, OSPFv3
BGP, BGP4+
Equal-cost routing, routing policy
Multicast IGMP v1/v2/v3 , MLD v1/v2
IGMP Snooping , MLD v1/v2 Snooping
PIM-DM、PIM-SM、PIM-SDM、PIM-SSM
IP DHCP Server、DHCP Client、DHCP Relay、DHCP Snooping、Option 82
DHCPv6 Server、DHCPv6 Client、DHCPv6 Relay
DNS
FTP Server、FTP Client
Ping、Trace
IP Accounting、NTP
IPv6 IPv6 basic：Ipv6 ND，Ipv6 PMTU，Ipv6 FIB，Ipv6 ACL
IPv6 tunnel technology: IPv6 manual tunnel, GRE tunnel, 6to4 tunnel, ISATAP tunnel
Network security Port Port security and port isolation
ARP ARP Guard, DAI, Static ARP Bundling, ARP Proxy, Free ARP
ACL standard MAC ACL, extended MAC ACL , IPv6 ACL
Safety protection Control plane protection, CPU protection
DDOS attack prevention ICMP Flood interception, Smurf attack interception, Fraggle attack interception, LAND attack interception, SYN Flood attack interception
Certification Local authentication, Radius, Tacacs+, AAA
QoS Traffic classification Based on port, MAC address, IP address, IP priority, DSCP priority, TCP/UDP port number, protocol type, etc.
Traffic policing CAR
Congestion Management SP , WRR , SP+WRR
Congestion Avoidance RED, WRED
Link reliability Support BFD for BGP/IS-IS/OSPF/VRRP, etc.
Support Keepalive Gateway
Support VRRP
Data Center Features Vxlan Technology Vxlan cross-data center interconnection
OAM Device Management Port Line Detection (VCT)
Network Management SNMP v1/v2/v3 , MIB , SYSLOG
System Management Console port login management, Telnet (VTY) remote management, SSH management, WEB management
Network Quality Assurance (SLA) ICMP ECHO , ICMP-PATH-ECHO , ICMP-PATH-JITTER , JITTER , UDPECHO , FLOW-STATISTICS and other protocol tests
Support network delay, jitter, packet loss rate and other tests

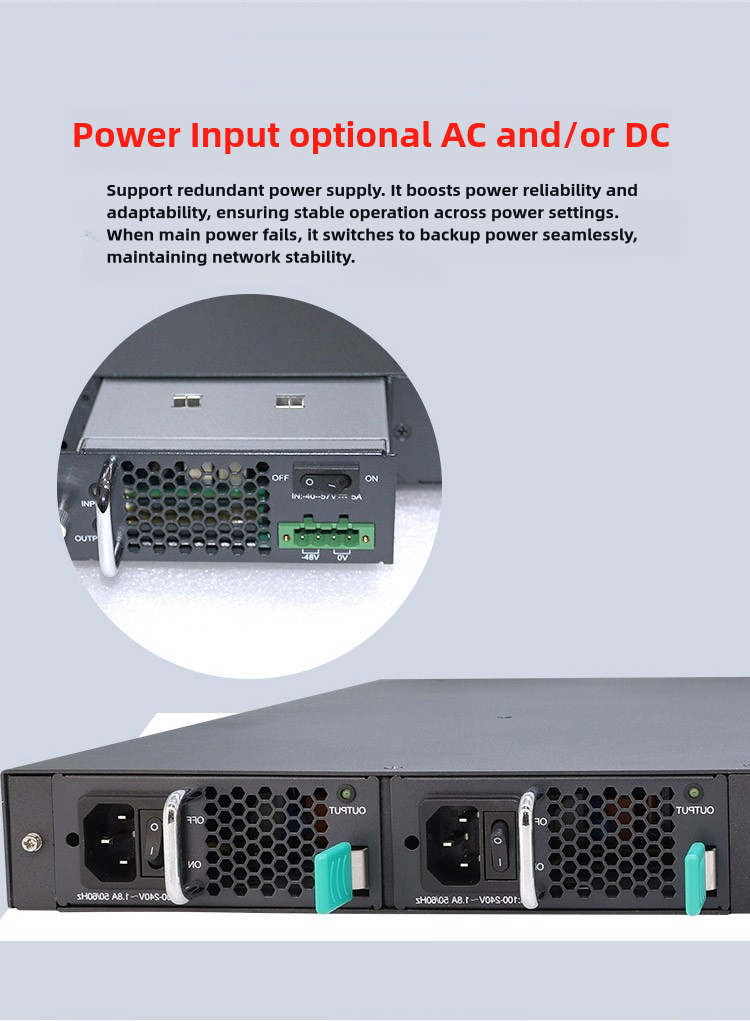

Pluggable dual modular PSU redundancy, supporting AC andor DC input

Advanced Network Capabilities support IPV4/PV6 Layer 2 and Layer 3 protocolSupport Spanning tree, VLAN, multicast and multiple routing protocolHardware support iPV4/iPV6 dual stack and tunnel technologyLayer 3 wire speed forwarding IPV6

Wide application scenarios Toputel Network switchesAdapts to complex environmentsWide application scenarios campus intelligence,Enterprise EfficiencyHospital ReliabilityData center speed campus Hotel Enterprise Park Data center

network switches Typical networking and centralized Network Management Supports SNMP V1/2/V3, MIB, SYSLOG

Multiple Projects, Multiple Wins , Toputel company network switches prove its worth by winning many tenders with telecom operators

FAQ
Q
What is the price?
A
  • Our prices will be adjusted according to raw material cost and other market factors. Please kindly contact us for the latest price list.
Q
What is your MOQ?
A
  • No MOQ for sample. Generally, the larger the quantity, better the unit price and freight will be
Q
​​​​​​​What is your Trade terms?
A
  • Trade terms EXW as default. More trade terms such as FOB, FCA etc for optional. We need to make official export declaration for the goods
Q
Which payment method is accepted?
A
  • For small batch, customer can order the product from our website directly.
    For big batch, we accept the payment term by T/T. 30% downpayment, and 70% of the balance paid before shipment.
More
Q
​​​​​​​What's the lead time?
A
  • Sample order: 5-14 days
  • The bulk order: about  2-4 weeks, depends on the raw material leadtime, especially up to the chipset.
Q
How about the shipment?
A
  • By Express, such as DHL, Fedex, TNT, UPS, EMS etc
  • By Sea
  • By Air
  • By railway
  • Forwarder
  • We will help to select the most economical way for your reference
Q
What certification you obtained for your products?
A
  • Some products win approval of CE, ROHS, Weee etc. If you have specific approval requirements, please kindly feel free to contact us.
Q
How long is the product warranty period?
A
  • Warranty period is 1 year, calculated from the date of delivery. During the warranty period, we will provide replacement parts for free for the product quality problems caused by its own design failure.
