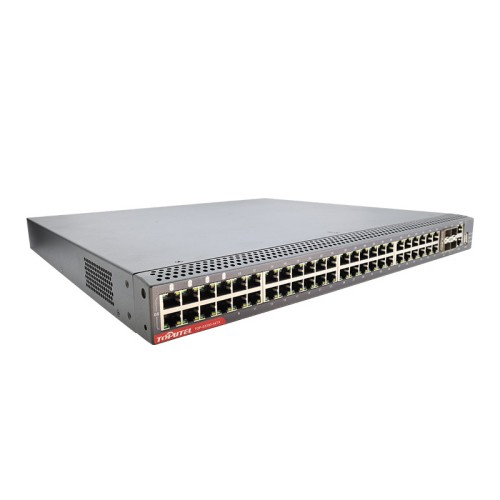

TOP-S5350-54TX Stackable 48-Port 10GE Layer3 Network Switch
TOP-S5350-54TX Stackable 48-Port 10GE Layer3 Network Switch TOP-S5350-54TX Stackable 48-Port 10GE Layer3 Network Switch TOP-S5350-54TX Stackable 48-Port 10GE Layer3 Network Switch

TOP-S5350-54TX Stackable 48-Port 10GE Layer3 Network Switch

48*1000M RJ45 port, 4* 10GE optical port,
1*USB port, 1* Micro USB port ,
1*Console configuration port, 1*RJ45 network management port,

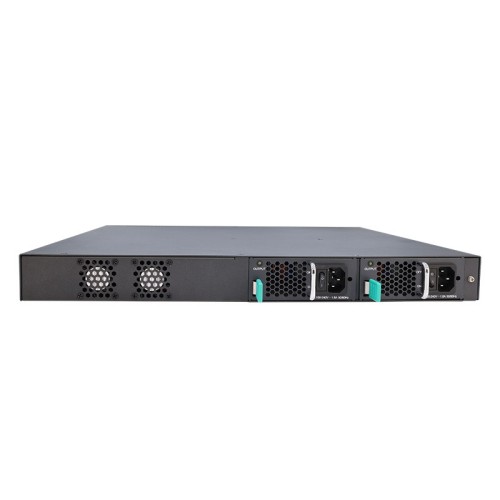

AC/DC redundant dual power supplies
Request Quote Need technical support
Description FAQ
Description

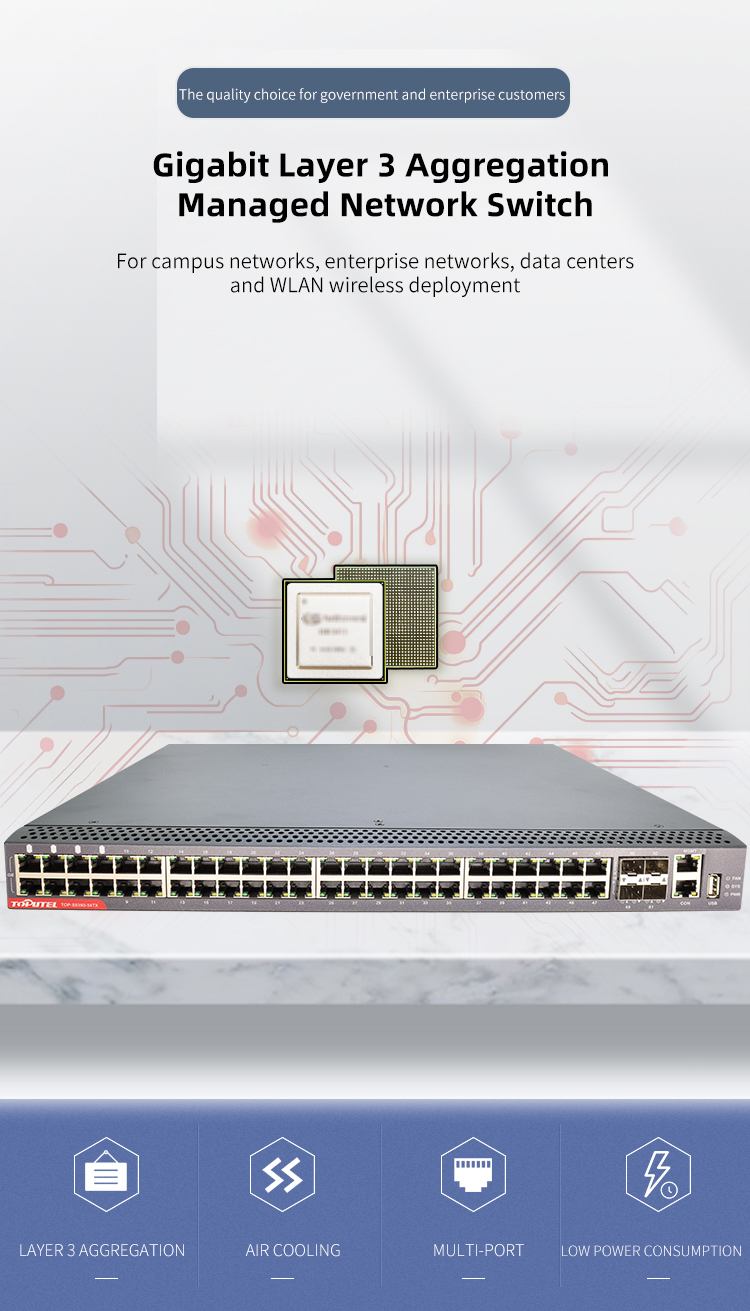

It is mainly aimed at the aggregation of campus networks/enterprise networks, high-quality Gigabit desktop access, server access in data centers, 802.11n Wlan wireless deployment access and other scenarios, providing stable, reliable and secure high-performance IPv4/IPv6 L2/L3 layer switching services.

TOP-S5350-54TX layer 3 switch provides 48*10/100/1000M RJ45 port, 4* 10GE optical port, 1*USB port, 1* Micro USB port , 1*Console configuration port, 1*RJ45 network management port, and supports AC/DC redundant dual power supplies.

Feature

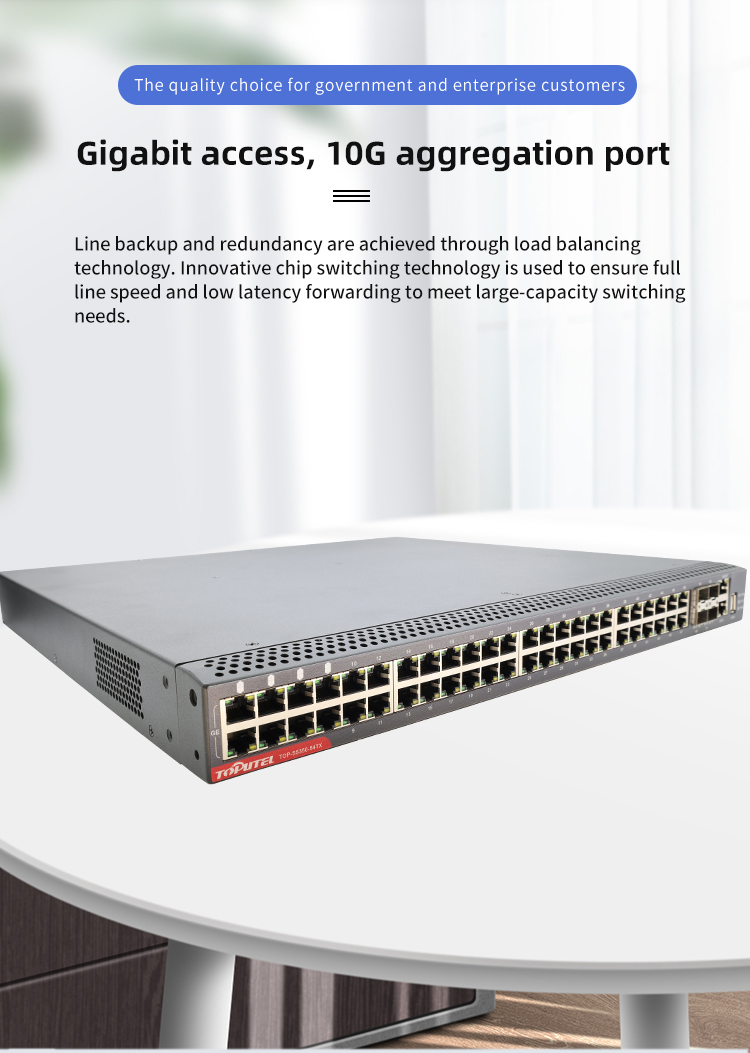

  1. High-density Gigabit access, 10G aggregation port design
  2. Unique PDI function
  3. Comprehensive and rich security control strategy

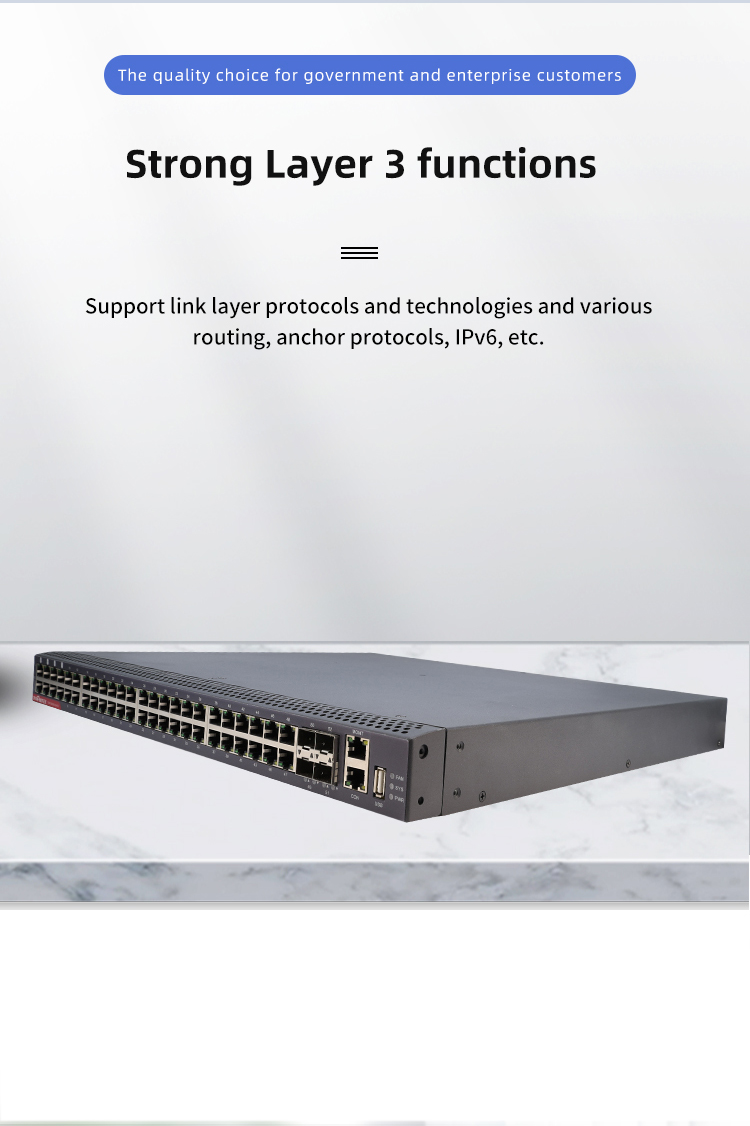

  4. Fully support IPv4/IPv6 Layer 2 and 3 protocols

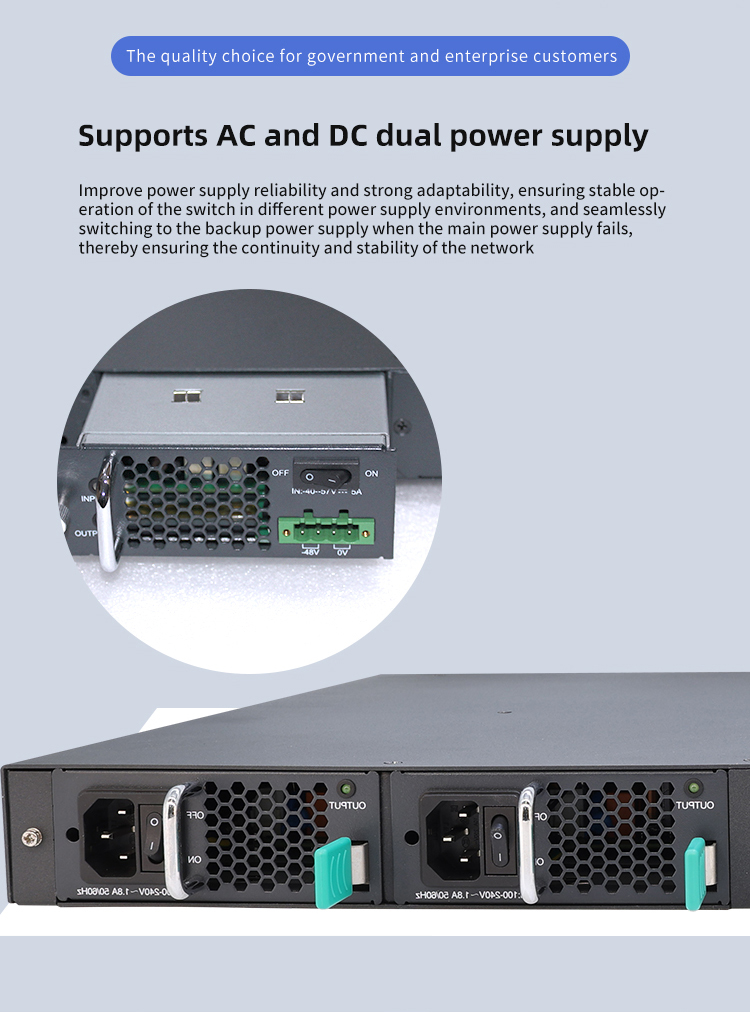

  5. Modular power supply design, supporting AC and DC redundant dual power supplies


Specifications

Model TOP-S5350-54TX Layer 3 switch
Hardware
Fixed Port 48*10/100/1000M RJ45, 4*10G SFP+ optical
Management Port 1*Console port, 1*RJ45 port, 1* USB port, 1*Reset button
USB storage Port
1

Dimensions
（W×D×H）		 440*420*44.2mm
Host power consumption（MAX） 73W
Power supply Input voltage（AC）：100V ~ 240V，50Hz ~ 60Hz
Input voltage（DC）：-40～-57V
Temperature Operating temperature：-10℃～55℃
Storage temperature：-40℃～  70℃
Humidity Working humidity: 10% ~ 90%, non-condensing
Storage humidity: 5% to 95% non-condensing
Mean time between failures 100,000 hours
MAC Capacity 64K
VLAN 4K
Lightning protection capability of service ports 7KV
Software
Link layer protocols and technologies LAN Support MAC address learning number limit; static MAC configuration; black hole MAC
Dynamic and static ARP, proxy ARP, gratuitous ARP
Ethernet，Ethernet II、VLAN、802.3x、802.1p、802.1q
Supports VLAN based on port, MAC, protocol, and IP subnet
Supports VLAN Mapping and Voice VLAN
QinQ, Flexible QinQ
STP/RSTP/MSTP
LACP（IEEE802.3ad）
Many-to-one port mirroring, remote port mirroring ERSPAN, flow mirroring
Network Protocol Routing Protocols Static Routing
RIP v1/v2、RIPng
OSPF、OSPFv3
BGP、BGP4+
Equal-cost routing, routing strategy
Multicast Protocol IGMP v1/v2/v3、MLD v1/v2
IGMP Snooping、MLD v1/v2 Snooping
PIM-DM、PIM-SM、PIM-SDM、PIM-SSM
IP Application DHCP Server、DHCP Client、DHCP Relay、DHCP Snooping、Option 82
DHCPv6 Server、DHCPv6 Client、DHCPv6 Relay
DNS
FTP Server、FTP Client
Ping、Trace
IP Accounting、NTP
IPv6 IPv6 basic functions: IPv6 ND, IPv6 PMTU, IPv6 FIB, IPv6 ACL
IPv6 tunnel technology: IPv6 manual tunnel, GRE tunnel, 6to4 tunnel, ISATAP tunnel
Network security Port Port security, port isolation
ARP ARP Guard, DAI, static ARP bundling, ARP Proxy, free ARP
ACL Standard IP ACL, extended IP ACL, standard MAC ACL, extended MAC ACL, IPv6 ACL
Safety protection Control plane protection, CPU protection
DDOS attack prevention ICMP Flood interception, Smurf attack interception, Fraggle attack interception, LAND attack interception, SYN Flood attack interception

Certification		 Local authentication, Radius, Tacacs+, AAA

QoS Traffic Classification Based on port, MAC address, IP address, IP priority, DSCP priority, TCP/UDP port number, protocol type, etc.
Traffic policing CAR
Congestion Management SP、WRR、SP+WRR
Congestion Avoidance RED、WRED
Link reliability Support BFD for BGP/IS-IS/OSPF/VRRP, etc.
Support Keepalive Gateway
Support VRRP
Data Center Features Vxlan Technology Vxlan cross-data center interconnection
OAM Device Management Port Line Detection (VCT)

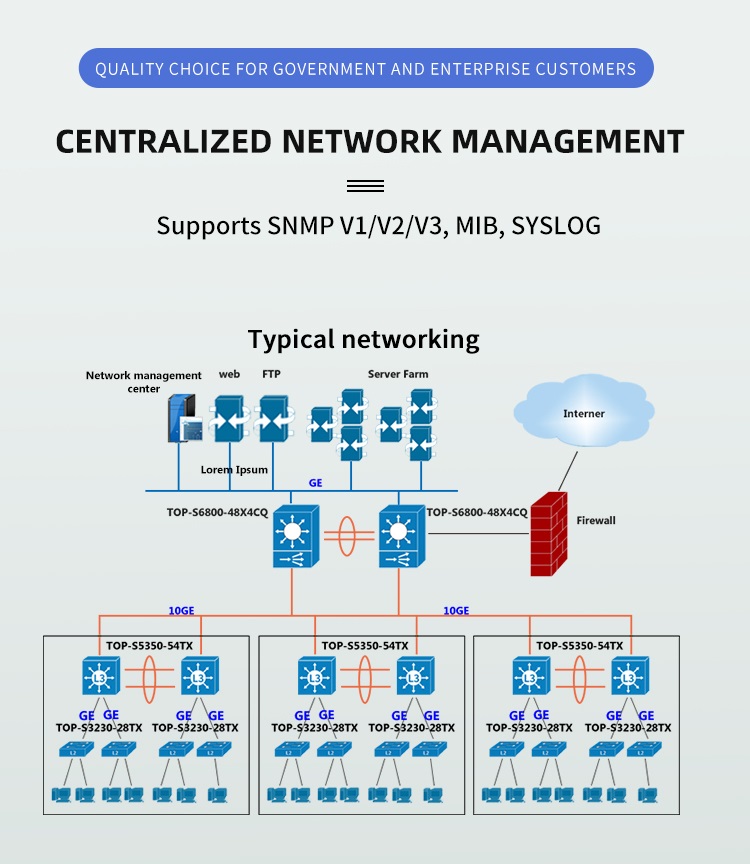

Network Management SNMP v1/v2/v3、MIB、SYSLOG
System Management Console port login management, Telnet (VTY) remote management, SSH management, WEB management
Network Quality Assurance (SLA) ICMP ECHO, ICMP-PATH-ECHO, ICMP-PATH-JITTER, JITTER, UDPECHO, FLOW-STATISTICS and other protocol tests
Support network delay, jitter, packet loss rate and other tests
