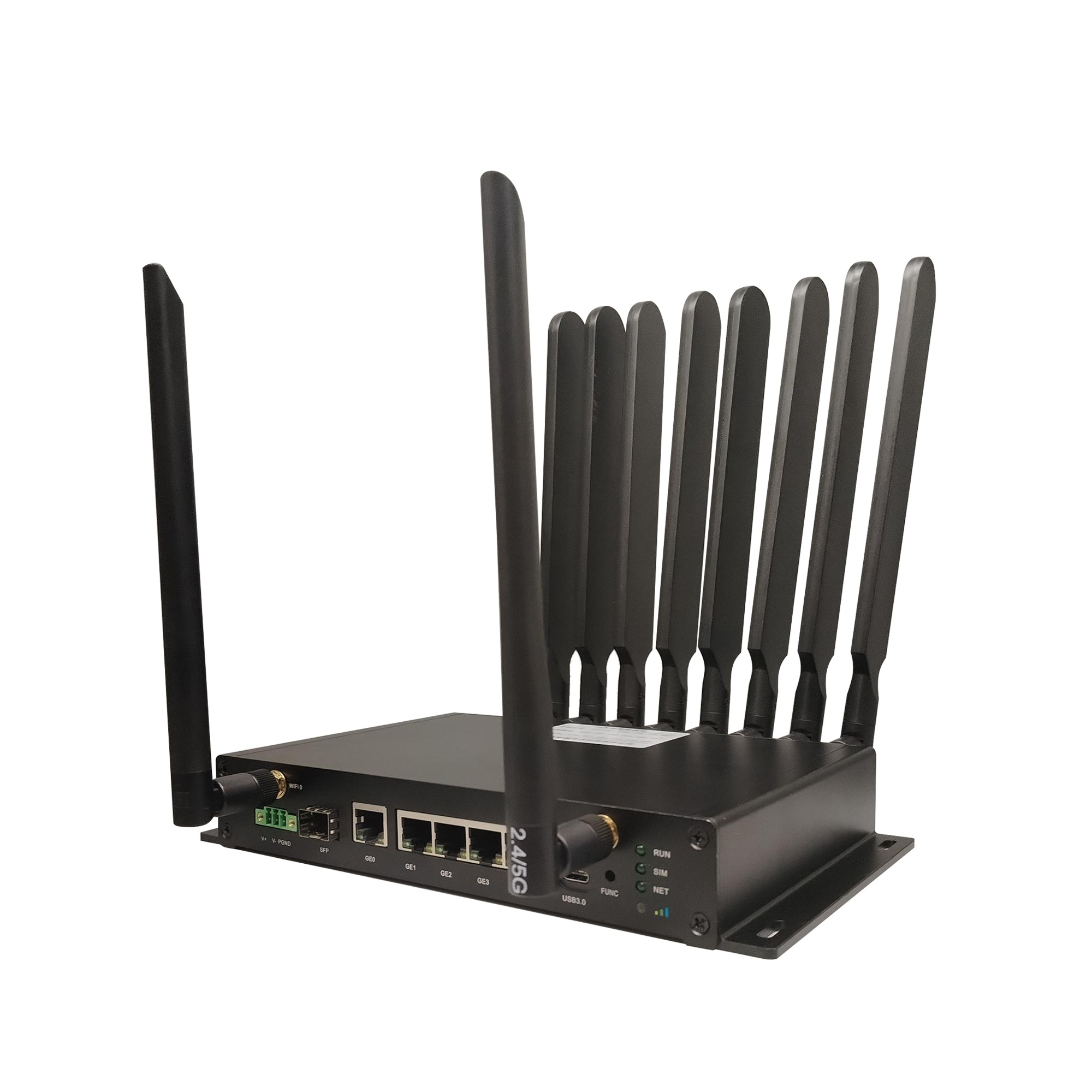

RG5000-H Gigabit 5G industrial Router with SFP Port

5*1000M ethernet port, 1*1000M SFP port,
2*SIM slots, 6*5G antenna ports,
1*GNSS antenna ports, 2*WIFI antenna ports,
1*USB3.0 port, 1*TF card port,
1*FUNC button, 1*RS232 port,
1*RS485 port, 1*standard 3-core power port
Description HD Image & Feature Technical Specification Applications FAQ
Description
RG5000-H 5*1000M ethernet + 1*1000M SFP optical port 5G Industrial Router

It use Qualcomm chip  OpenCPU Architecture,working temperature as wide as  -40~+85°C,  therefore more stable and reliable especially in harsh envirement.  Widely use in  IoT communication ( factory AGV, robots monitoring, unmanned vehicle for mining and farming), as welll as enterprise communication (WAN network failover).

Product features:
* 1x SFP optical port of Gigabit
* support Ethernet/Optical network WAN Failover to Cellular network,Secure Remote Connections
* 5G to WiFi
* support WiFi sensors and WiFi camera access to internet
* 1x RS485 and 1 x RS232 port, for Modbus polling IoT data
* support Modbus to MQTT, compatible to cloud platform
* 5G cellular module,  compatible with 4G LTE/3G network
* Dual SIM slot, avoid data transmission disconnect, auto-reconnect
* GPS optional , for tracking ships, trains, vehicles etc.
* provide free software for devices batch management, both on-premise and cloud deployment.
* support various VPN and customization
* Built-in firewall,  ensure network security
* particularly suitable for remote monitoring AGV, vehicles, robots that require fast response and low lentency.
HD Image & Feature

SFP Optical port , Secure Remote Connections , Ethernet WAN Failover to Cellular - 5G Industrial Router RG5000-H hardware rich interfaces- 5G Industrial Router RG5000-H

Router device size, placed in the car, control the unmanned vehicle - 5G Industrial Router RG5000-H GPS tracking ships Free software for devices management remotely- 5G Industrial Router RG5000-H SFP Optical port , Secure Remote Connections , Ethernet WAN Failover to Cellular - 5G Industrial Router RG5000-H 5G to WiFi6 router support WiFi sensors and WiFi camera access to internet - 5G Industrial Router RG5000-H RS485+RS232  Modbus to MQTT cloud- 5G Industrial Router RG5000-H Built-in firewall and support various VPN and customization- 5G Industrial Router RG5000-H packing list - 5G Industrial Router RG5000-H 5G Industrial Router RG5000-H  product application topology diagram
Technical Specification
●Supports 5 of  100/1000M Ethernet ports, WAN/LAN can be configured freely
●Supports 1 of 100/1000M SFP optical port, which provides direct access to the optical network and enables full switching with Ethernet ports. can also directly insert the GPON module to interconnect with GPON OLT as an ONU
●Compatible 5G/4G/3G network;
●Supports multiple protocols: TCP/IP, UDP, HTTP, TELNET, ICMP, DHCP, PPPOE, DNS, DDNS, etc;
●Supports static routes and RIP/OSPF routing protocols;
●Supports QoS protocols such as priority mapping, traffic policing, traffic shaping, congestion management, and rate limiting;
●Supports ACL and NAT functions;
●Supports the HQoS mechanism that provides hierarchical scheduling based on multi-level queues and distinguishes services and users, and optimizes the transmission of video streams;
●Supports firewall, packet filtering, and URL filtering;
●Supports VPN functions such as GRE, L2TP, IPSEC, PPTP,  OpenVPN and EOIP;
●Supports 802.1Q VLAN and QinQ function;
●Supports link detection functions for example DLDP, and can quickly switch to the backup link based on the detection result;
●Supports logging;
●Supports Port mirroring;
●Supports CLI, WEB, and SNMP/TR069 centralized NMS;
●Supports version upgrade and rollback;



Product model RG5000-H
Interfaces 5*10/100/1000M ethernet t ports
1*100/1000M SFP port;
2*SIM slots;
6*5G antenna ports;
1*GNSS antenna ports;
2*WIFI antenna ports;
1*USB3.0 port;
1*TF card port;

1*FUNC button
1*RS232 port;
1*RS485 port;

1*standard 3-core power port;
Network Type 5G NR NSA/SA:n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78/n79
LTE-FDD:B1/B3/B5/B7/B8/B18/B19/B20/B26/B28/B32
LTE-TDD:B34/B38/39/B40/B41/B42/B43
WCDMA:B1/B3/B5/B6/B8/B19
WIFI 802.11 b/g/n/ac/ax,1774.5Mbp
Device size 235*135*35mm (excluding antenna and pendant)
Power consumption ≤18W
Working temperature -30~+75°C
Power supply DC12V 1.5A
Housing High strength metal housing
Ingress Protection Rating IP30
Working humidity 5~95%RH
Mounting desktop、wall-mounted、din rail

Applications

 Application


FAQ
Q
What is the price?
A
  • Our prices will be adjusted according to raw material cost and other market factors. Please kindly contact us for the latest price list.
Q
What is your MOQ?
A
  • No MOQ for sample. Generally, the larger the quantity, better the unit price and freight will be
Q
​​​​​​​What is your Trade terms?
A
  • Trade terms EXW as default. More trade terms such as FOB, FCA etc for optional. We need to make official export declaration for the goods
Q
Which payment method is accepted?
A
  • For small batch, customer can order the product from our website directly.
    For big batch, we accept the payment term by T/T. 30% downpayment, and 70% of the balance paid before shipment.
More
Q
​​​​​​​What's the lead time?
A
  • Sample order: 5-14 days
  • The bulk order: about  2-4 weeks, depends on the raw material leadtime, especially up to the chipset.
Q
How about the shipment?
A
  • By Express, such as DHL, Fedex, TNT, UPS, EMS etc
  • By Sea
  • By Air
  • By railway
  • Forwarder
  • We will help to select the most economical way for your reference
Q
What certification you obtained for your products?
A
  • Some products win approval of CE, ROHS, Weee etc. If you have specific approval requirements, please kindly feel free to contact us.
Q
How long is the product warranty period?
A
  • Warranty period is 1 year, calculated from the date of delivery. During the warranty period, we will provide replacement parts for free for the product quality problems caused by its own design failure.
