Home > Routers > Industrial Grade Router > 4G Router

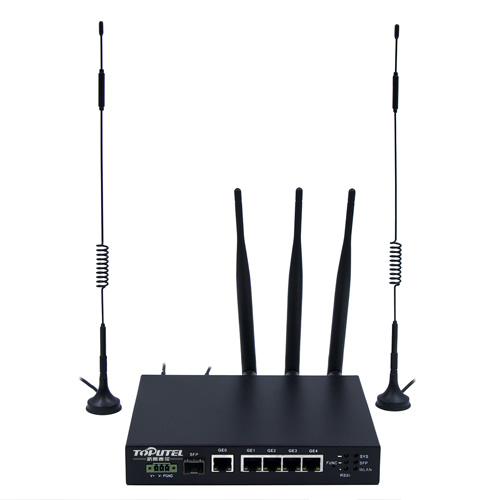

RG4000-H Dual-SIM Dual-Power Wireless LTE Industrial Router RG4000-H Dual-SIM Dual-Power Wireless LTE Industrial Router RG4000-H Dual-SIM Dual-Power Wireless LTE Industrial Router RG4000-H Dual-SIM Dual-Power Wireless LTE Industrial Router

RG4000-H Dual-SIM Dual-Power Wireless LTE Industrial Router

5*1000M ethernet；1*1000M SFP；
Dual *SIM Card Slot；2*4G antenna；
2*WIFIantenna；1*GPS（optional）；
1*FUNCbutton；1*USB2.0port
2*standard 3-core power port
Request Quote Need technical support
Description Main Features Technical Specification Applications FAQ
Description

Toputel RG4000-H Dual-SIM Dual-Power Port Wireless WIFI LTE Gateway
            Click picture to see the detailed application


Outline

Toputel RG4000-H Dual-SIM Dual-Power Port Wireless WIFI LTE router,integrating 4G/WIFI/Routing/Switching/Security and other network application technologies, compatible with 4G/3.5G/3G/2.5G network, configuring 5*1000M ethernet ports and 1*1000M SFP optical port, 2*Cellular Antennas, supports direct docking with GPON OLT, Supports 802.11 b/g/n WIFI.





Toputel RG4000-H Dual-SIM Dual-Power Port Wireless WIFI LTE Gateway
            Click picture to see the detailed application

Super Design
Flagship configuration, VPN link and industrial-grade design enable it to build high-speed and stable wire/wireless communication network easily.Supports digital data acquisition, provide users with wireless long- distance data transmission function by using public 4G/3G network.

Toputel RG4000-H Dual-SIM Dual-Power Port Wireless 4G Industrial Router
            Click picture to see the detailed application

Industrial-Grade Quality
Benefit from its industrial-grade design and strict selection of components, the device can withstand high & low temperature, work stably in complex operation condition such as outdoor and in moving vehicle, provide users with a highly reliable, cost-effective wireless security access network solutions. It is already widely applied in many scenarios such as intelligent manufacturing, smart city, intelligent transportation, energy management, security, self-service terminals, smart healthcare and the next generation of the IoT field.







Main Features

 Main Features

  1. Supports 5 of  10/100/1000M ethernet ports,WAN/LAN can be configured freely；
  2. Supports 1 of 1000M SFP optical port, which provides direct access to the optical network and enables full switching with ethernet ports. can also directly insert the GPON module to interconnect with GPON OLT as an ONU；
  3. Compatible 4G/3.5G/3G/2.5G network ；
  4. Supports multiple protocols: TCP/IP, UDP, HTTP, TELNET, ICMP, DHCP, PPPOE, DNS, DDNS, etc；
  5. Supports static routes and RIP/OSPF routing protocols；
  6. Supports ACL and NAT functions；
  7. Supports QoS protocols such as priority mapping, traffic policing, traffic shaping, congestion management, and rate limiting；
  8. The router with RS232/RS485 interface supports IEC-60870-5- 101/104, Modbus protocol
  9. Supports the HQoS mechanism that provides hierarchical scheduling based on multi-level queues and distinguishes services and users, and optimizes the transmission of video streams；
  10. Supports firewall, packet filtering, and URL filtering；
  11. Supports VPN functions such as GRE, L2TP, IPSEC, PPTP,  EOIP, OPENVPN；
  12. Supports 802.1Q VLAN and QinQ function；
  13. Supports link detection functions such as DLDP, and can quickly switch to the backup link based on the detection result；
  14. Supports logging；
  15. Supports port mirroring；
  16. Supports CLI, WEB, and SNMP/TR069 centralized NMS；
  17. Supports version upgrade and rollback；


Technical Specification
 Model RG4000-V8 RG4000  RG4000-H  RG4000-S RG4000-SW RG4000-E
Pic. RG4000-V8, RG4000-V8W
Fixed port RG4000-V8 fixed ports：
8*10/100/1000M ethernet ports；
2*1000M SFP ports；
1*Console port；
1*SIM Card Slot port；
2*4G antenna ports；
1*GPS antenna ports
（optional）；
1*FUNC button；
1*USBport；
1*standard 3-core power port

 		 RG4000 fixed ports：
5*10/100/1000M ethernet ports；
1*100/1000M SFP port；
1*SIM Card Slot port；
2*4G antenna ports；
2*WIFIantenna ports；
1*GPS antenna port（optional）；
1*FUNCbutton；
1*standard 3-core power port
1* extra SIM port (optional);
1*USB2.0  (optional);
1*RS232/RS485 (optional).

RG4000-H fixed ports：
On basis of RG4000，added 1*SIM port、1*USB2.0port；1*standard 3-core power port (1 main + 1 aux）		 RG4000-S fixed ports：
5*10/100M ethernet ports；
1*SIM Card Slot port；
2*4G antenna ports；
1*RS232/RS485 port
（alternative）；
1*FUNC button；
1*USB port；
1*standard 3-core power port

RG4000-SW fixed ports：
On basis of  RG4000-S，added 2*WIFI antenna ports
2*100M ethernet ports
（1*WAN+1*LAN）；
2*SIM Card Slot port；
2*4G antenna ports；
1*GPS port（optional）；
1*RS232/RS485 serial port
（alternative）；
1*relay output port；
1*FUNCbutton；
1*standard 3-core power port
Cellular Antennas 2 pcs
Network Type Support entire network：TDD-LTE、FDD-LTE、TD-SCDMA、UMTS、EVDO、EDGE、CDMA1x、GPRS
WIFI - 802.11 a/n/ac，866Mbps
3*3 MIMO		 802.11 b/g/n，300Mbps,dual tunnels - 802.11 b/g/n，300Mbps,dual tunnels -
Dimension 271*154*33mm (excluding antenna & pendant) 181*134*31mm
(excluding antenna &pendant)		 91*111*32mm
(excluding antenna )
Power Consumption ≤18W ≤15W ≤10W
Voltage Input DC12V 9V-48V 9V-16V  9V-16V
Housing High strength metal housing
IP Degree IP30
Operating humidity 10～95%RH
Operating temp. -20～+75°C -40～+85°C
Storage Temp. -40～+85°C
GPON ONU Supported when GPON optical module is inserted in the optical port -
Mounting desktop、wall-mounted、din-rail
Applications

 Application


Electricity Management: remote automatic meter reading, real-time monitoring and alarm of voltage and current data, city power grid and street lamp control;

Security: video surveillance, remote access control system monitoring,anti-theft device alarm;

Energy Management: data acquisition in coal, natural gas and oil fields, heating system regulation;

Traffic: monitoring and dispatching system of motor vehicle and bank armored vehicle, license plate capture monitoring system, vehicle violation monitoring;

Environmental protection: real-time data acquisition and automatic control of gas pressure regulating station, real-time monitoring and maintenance of tap water, sewage pipe, lock gate, pump station and water plant;

Finance: ATM and server room monitoring, mobile securities trading and information inquiry, POS system application;

Utility: water level flood control monitoring, natural disaster prediction system;

Media: mobile advertising automatic download system, wireless streaming media advertising management system;

Weather: temperature and humidity data remote acquisition and transmission, weather prediction;

Toputel RG4000-H Dual-SIM Dual-Power Port Wireless WIFI LTE Gateway Application scenarios
