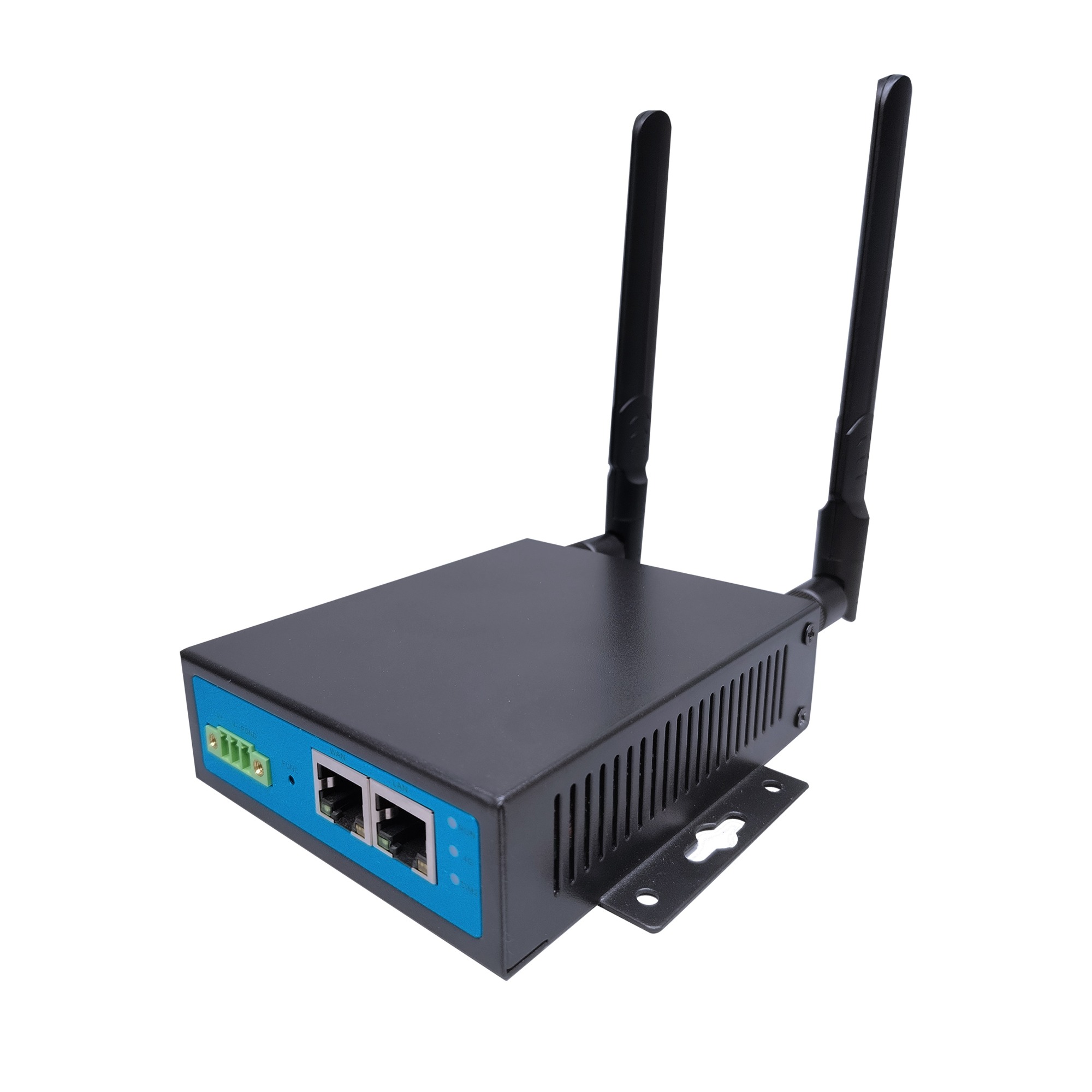

4G industrial router RG4000-E

2* 100Mbps Ethernet port,  Dual SIM card slot,
1* Relay output , 1* RS485 serial Port,
2* 4G antenna, 1* GPS Port (optional)
1* FUNC button, 1* 3-core power Port
Description HD Image + Main Features Technical Specification Applications FAQ
Description

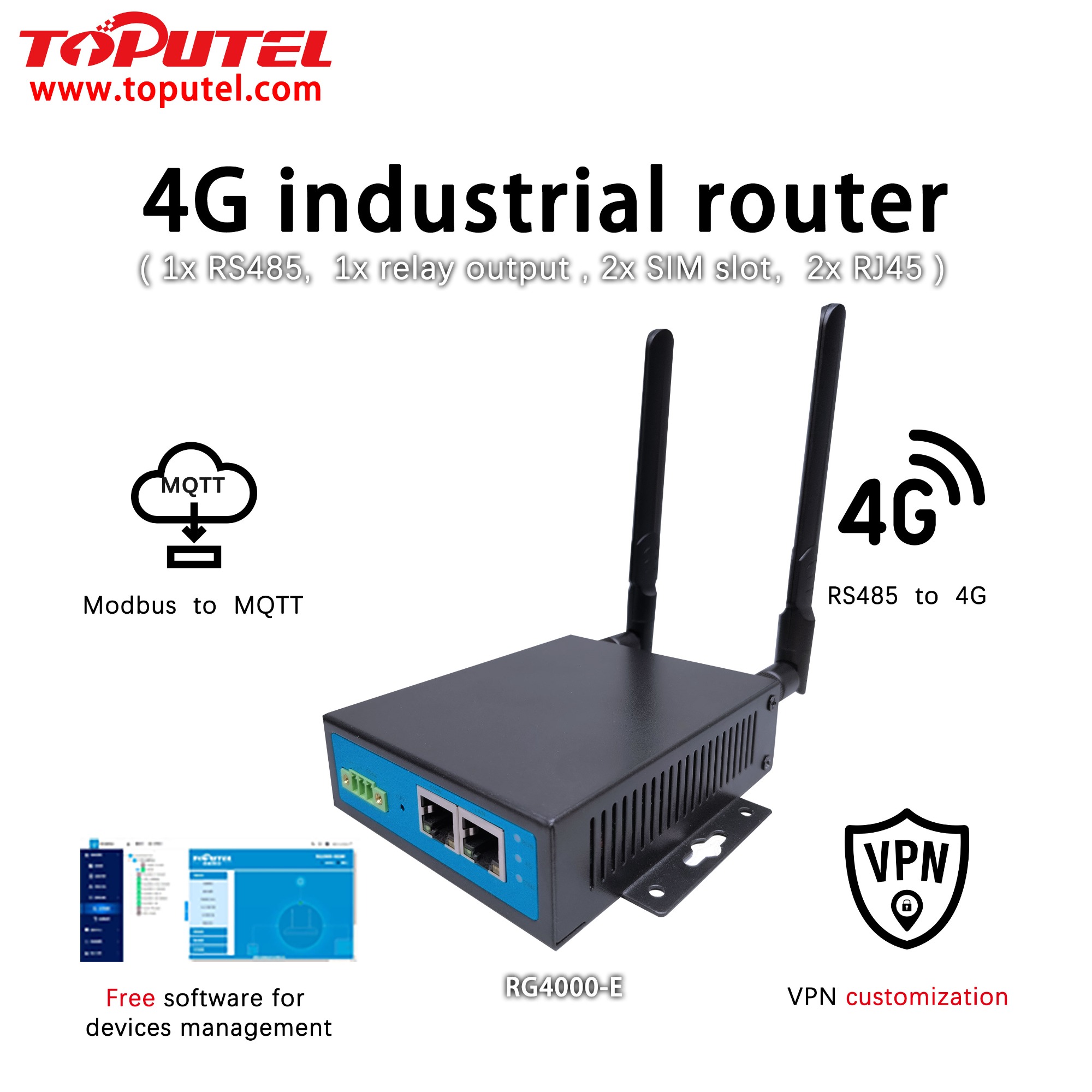

RG4000-E is 4G router for industrial IoT,  powerful but small size.

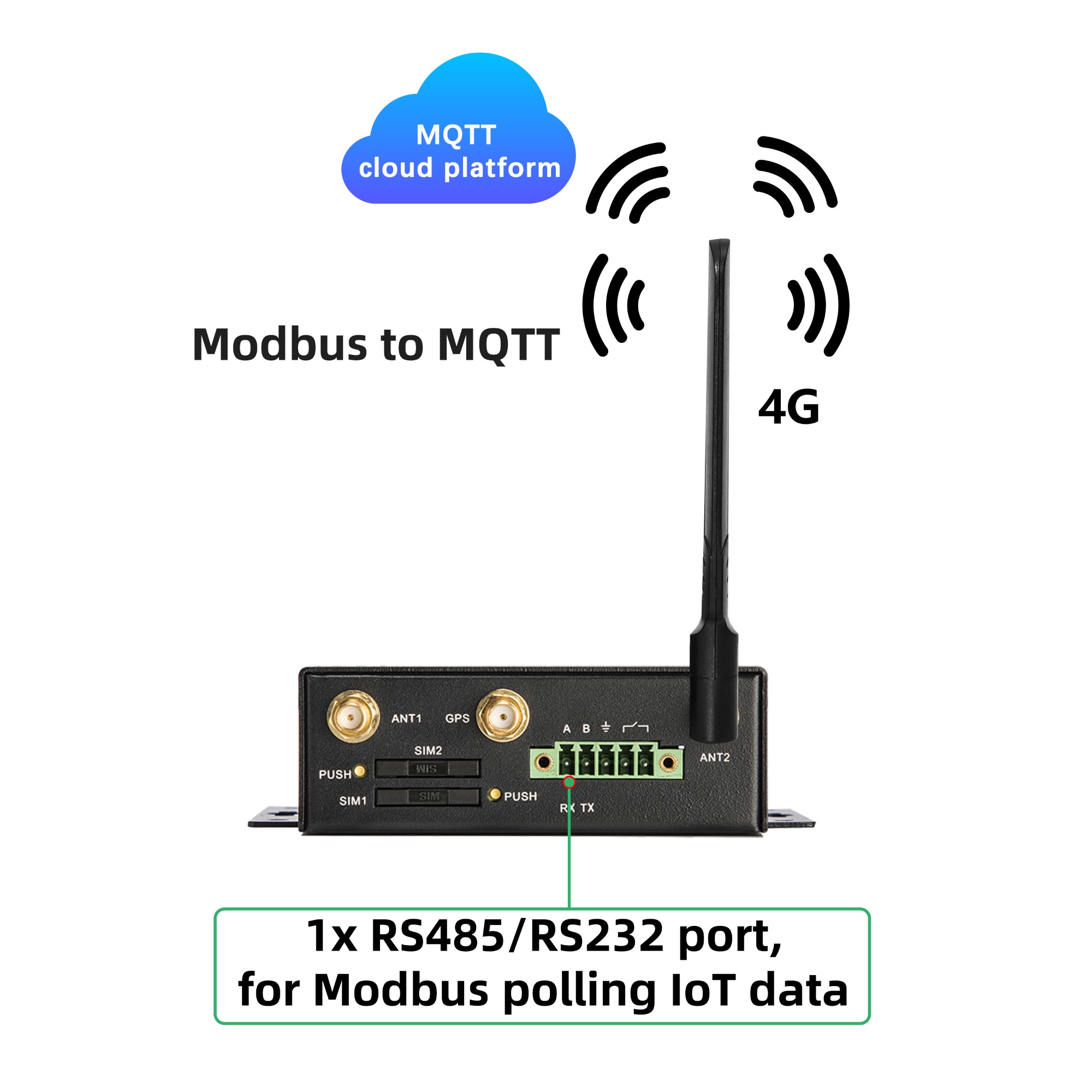

* 1x RS485/RS232 port, for Modbus polling IoT data
* support Modbus to MQTT,   compatible to cloud platform
* 1 x relay output

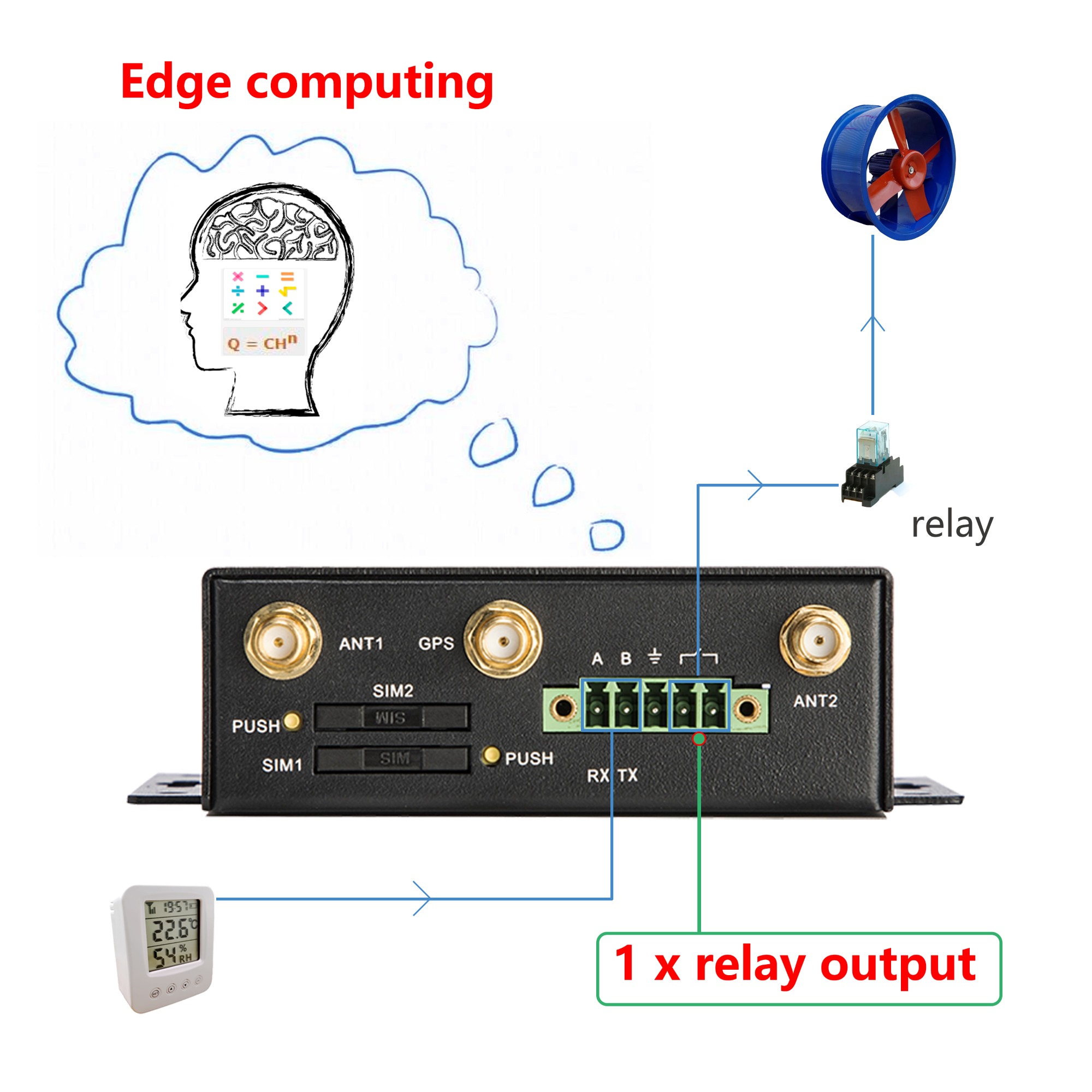

* support edge computing, allows  for local automation control
* 4G/LTE cellular module,  compatible with 3G/2G network

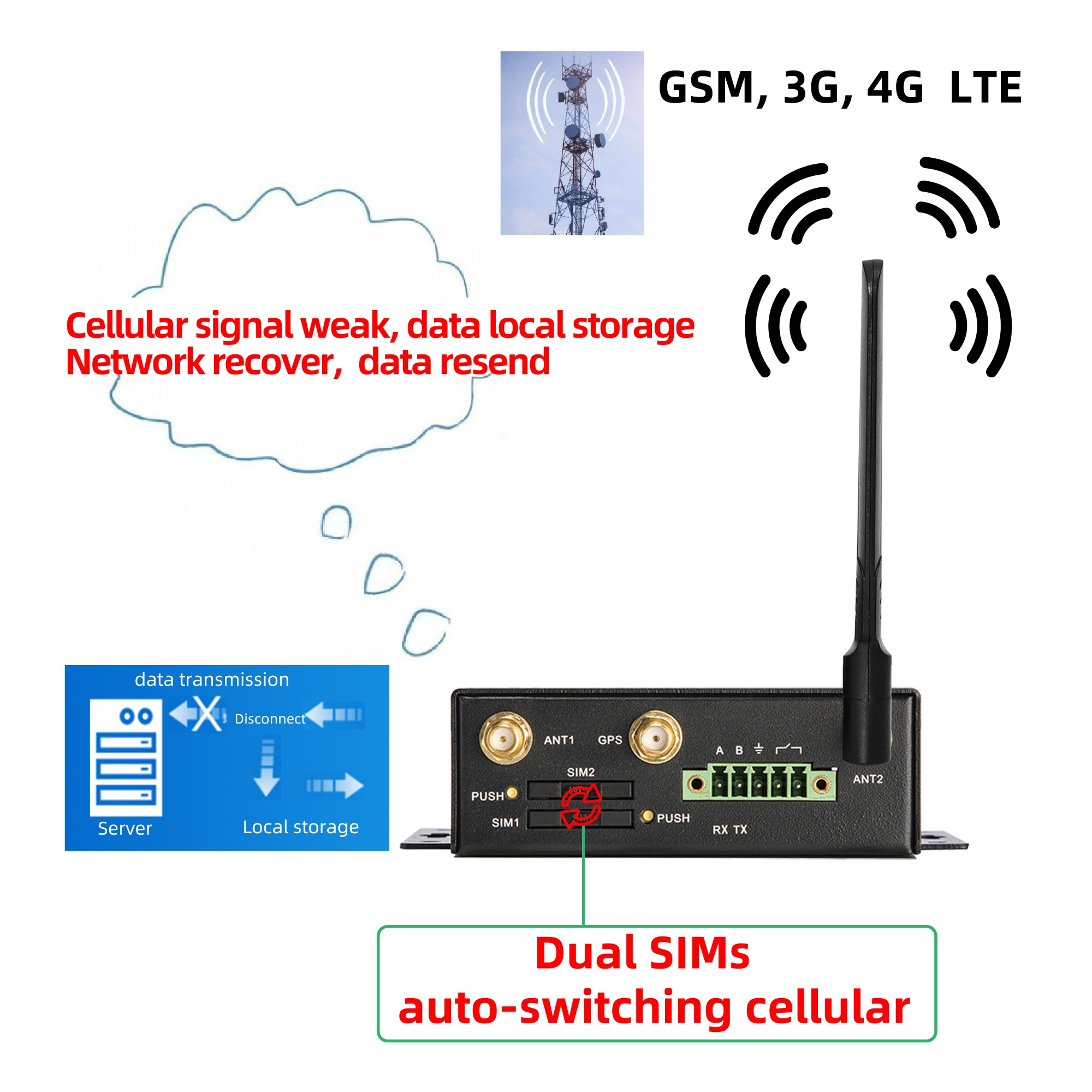

*  Dual SIM slot , avoid data transmission disconnect , auto-reconnect
* GPS optional , for tracking ships, trains, vehicles etc

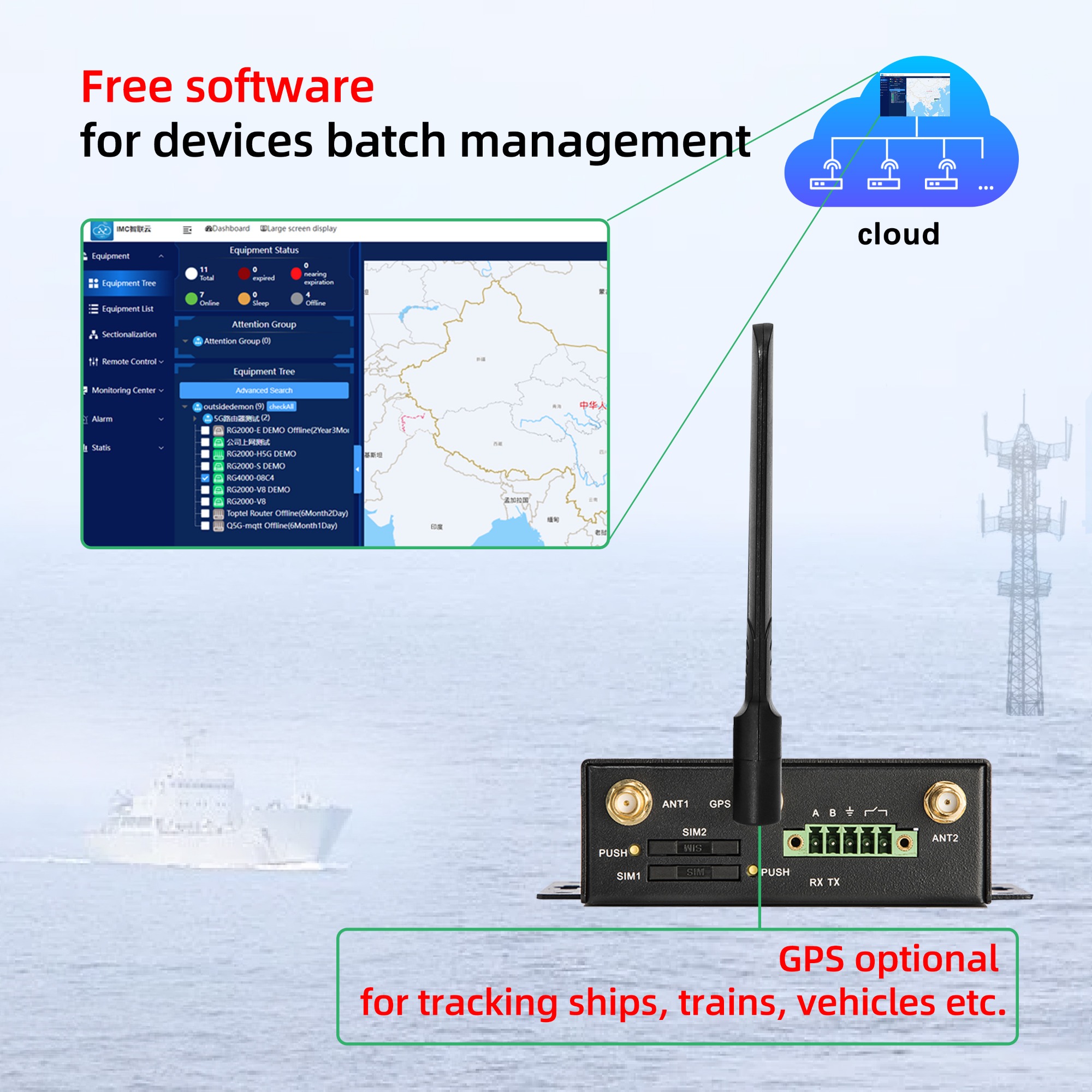

* provide free software for devices batch management, both on-premise and cloud deployment.

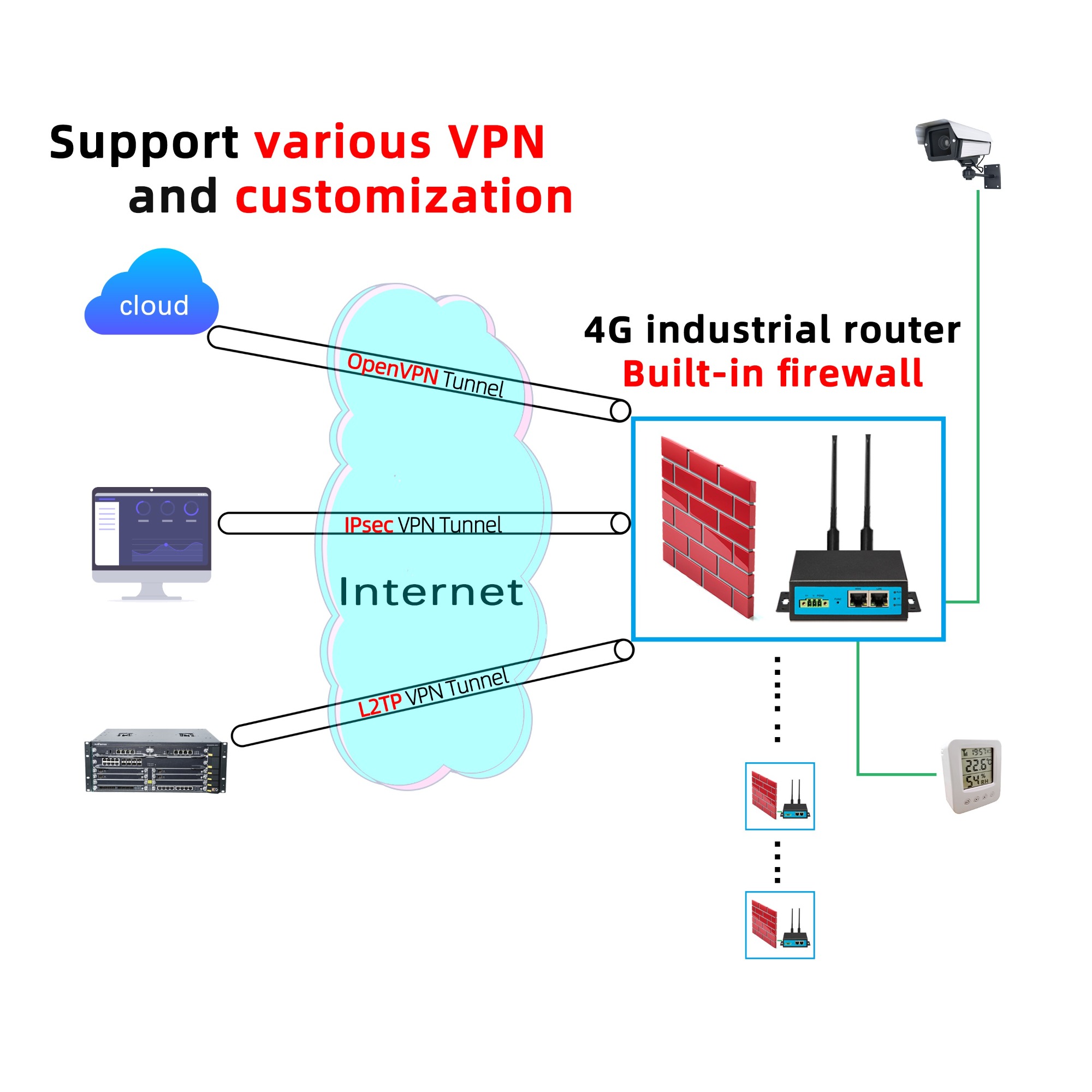

* support various VPN  (Virtual Private Network) and customization
* Built-in firewall,  ensure network security

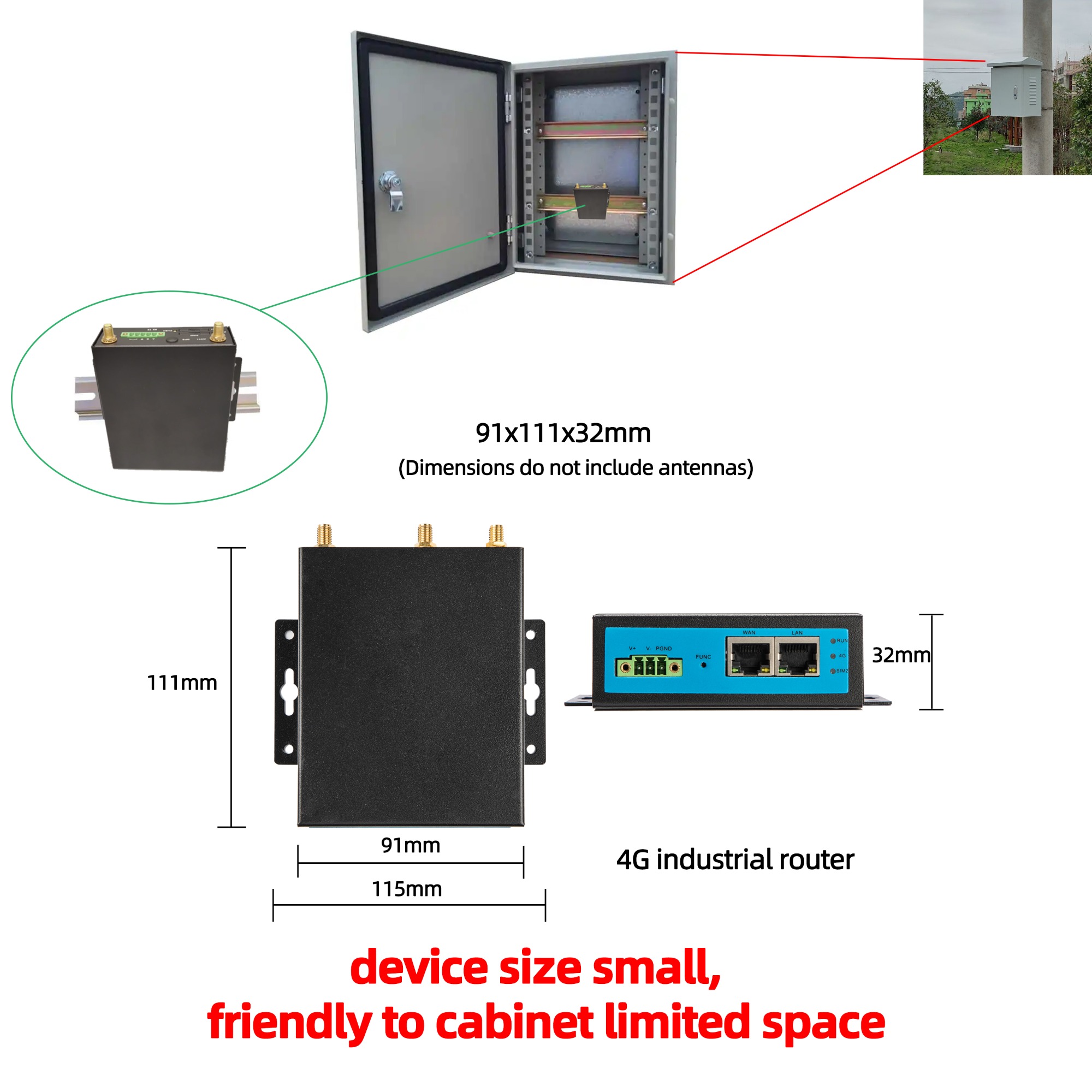

* router device size small,  friendly to cabinet limited space
* particularly suitable for remote monitoring such as outdoors tower, lighting poles, pump rooms etc.
HD Image + Main Features

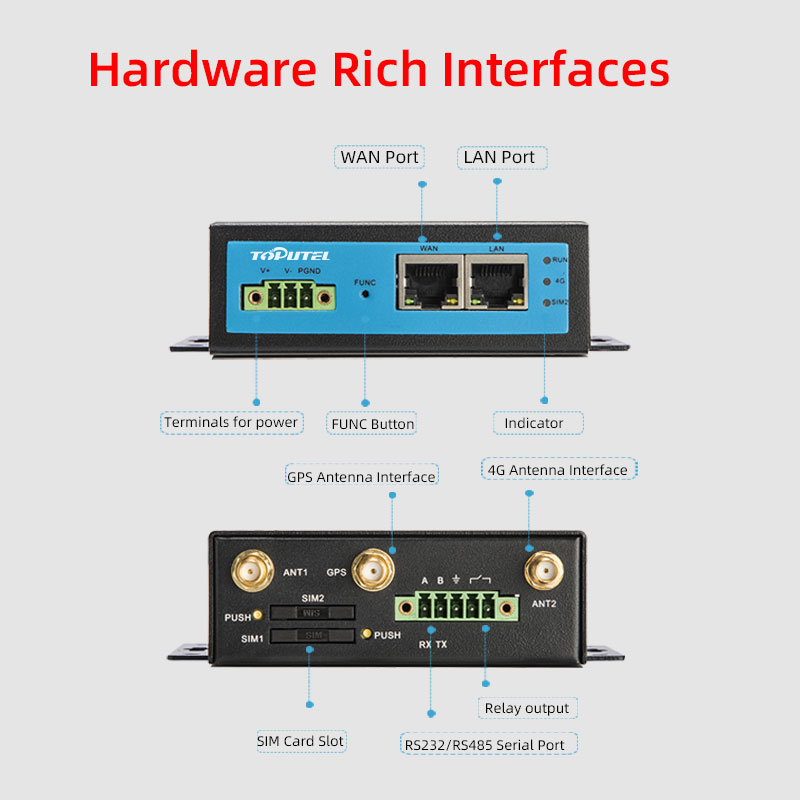

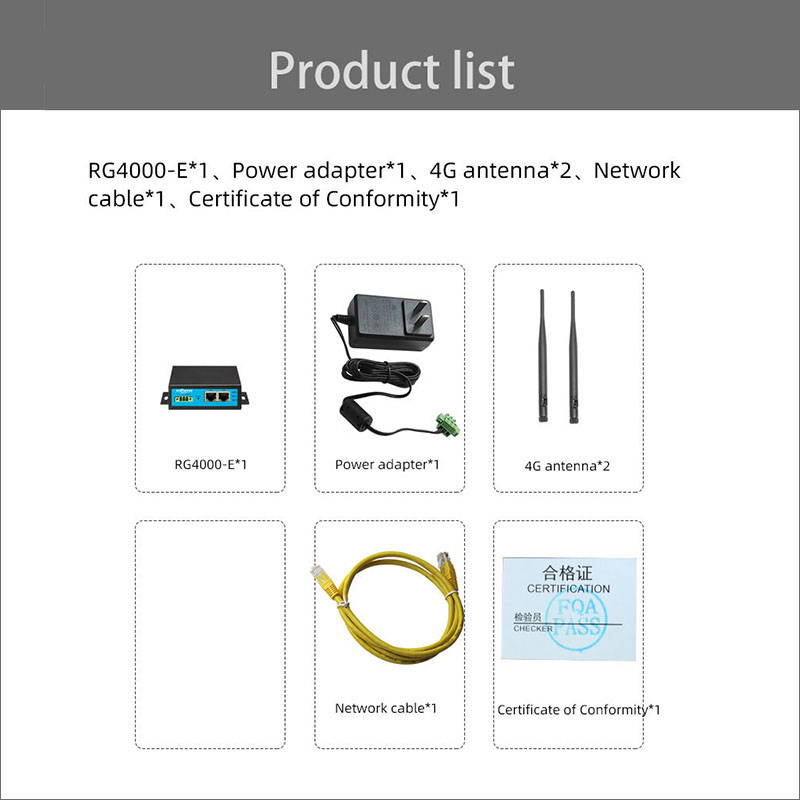

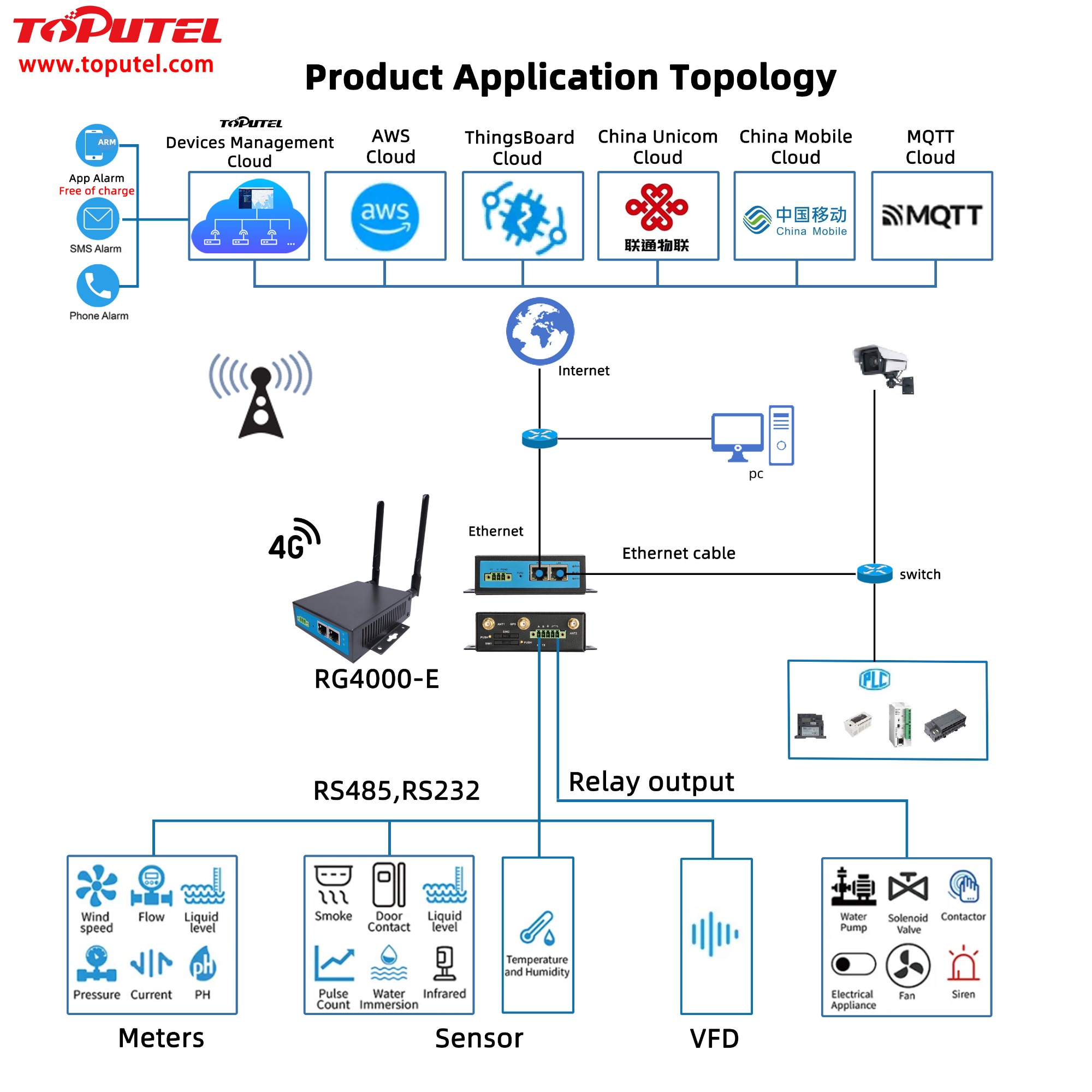

VPN customization Free software for devices management Modbus to MQTT, RS485 to 4G industrial router  RG4000-E 4G industrial router  RG4000-E with hardware rich interfacesRG4000-E industrial Router with size small,  friendly to cabinet limited spaceRS485  Modbus to MQTT cloud- 4G industrial router RG4000-Erelay output help edge computing make automation control - 4G industrial router  RG4000-EGPS tracking ships Free software for devices management remotely- 4G industrial router  RG4000-EDual SIMs  auto-switching cellular auto-reconnect server - 4G industrial router  RG4000-EBuilt-in firewall and support various VPN and customization - 4G industrial router  RG4000-Epacking list - 4G industrial router  RG4000-E4G industrial router product application topology diagram

Technical Specification
Support 2 Ethernet Ports of 10/100M, all ports support WAN/LAN; which can be divided arbitrarily
Compatible 4G/3.5G/3G/2.5G network
Support TDD-LTE, FDD-LTE, TD-SCDMA, UMTS, EVDO, EDGE, CDMA1x, GPRS.
Support various network protocols: TCP/IP, UDP, HTTP, TELNET, ICMP, DHCP, PPPOE, DNS, DDNS etc.
Support static routing and dynamic routing of RIP/OSPF/ISIS/BGP.
Support MPLS services, can be deployed in various solution scenarios.
Support MPLS LDP protocol.
Support PW3, VPLS and other L2VPN,  also L3VPN.
Support QoS: packets priority, traffic policing, traffic shaping,rate-limiting.
Support Centralized network management of CLI, WEB and SNMP/TR069.
Support ACL, NAT function.
Support firewall, packet filtering, URL filtering etc.
Support VPN functions: GRE, L2TP, PPTP, IPSEC, EOIP, VxLAN, MPLS L2/L3VPN etc.
Support 802.1Q VLAN, also QinQ.
Support link detective functions like DLDP etc,it can switch to back-up link quickly according to detective result.
Support port mirroring.
Support log function.
Support Watchdog.
Support IPRAN protocol family, can directly connect to IPRAN network.
Model RG4000-V8 RG4000-V8W RG4000  RG4000-H  RG4000-S RG4000-SW RG4000-E
Pic
Fixed port RG4000-V8 fixed ports:
8*1000M ethernet ports;
2*1000M SFP ports;
1*Console port;
1*SIM Card Slot port;
2*4G antenna ports
1*GPS antenna ports (optional);
1*FUNC button;
1*USBport;
1*standard 3-core power port

RG4000-V8W fixed ports:
Based on RG4000-V8,added 3*WIFI antenna ports
RG4000 fixed ports:
5*1000M ethernet ports;
1*100/1000M SFP port;
1*SIM Card Slot port;
2*4G antenna ports
2*WIFIantenna ports
1*GPS antenna ports
(optional),
1*FUNCbutton;
1*standard 3-core power port
1*SIM port (optional);
1*USB2.0  (optional);
1*RS232/RS485 (optional).

RG4000-H fixed ports
On basis of RG4000,added 1*SIM port、1*USB2.0port;1*standard 3-core power port (1 main + 1 aux)
RG4000-S fixed ports:
5*10/100M ethernet ports;
1*SIM Card Slot port;
2*4G antenna ports;
1*RS232/RS485
1*FUNC button;
1*USB port;
1*standard 3-core power port

RG4000-SW fixed ports:
On basis of  RG4000-S,added 2*WIFI antenna ports
2*100M ethernet port(1*WAN+1*LAN);
2*SIM Card Slot
2*4G antenna ports
1*GPS port (optional);
1*RS232/RS485
1*relay output port;
1*FUNCbutton
1*standard 3-core power port
Cellular Antennas 2 pcs
Network Type Support entire network:TDD-LTE、FDD-LTE、TD-SCDMA、UMTS、EVDO、EDGE、CDMA1x、GPRS
WIFI - 802.11 a/n/ac,866Mbps
3*3 MIMO
802.11 b/g/n,300Mbps,dual tunnels - 802.11 b/g/n,300Mbps,dual tunnels -
Dimension 271*154*33mm (excluding antenna & pendant) 181*134*31mm
(excluding antenna &pendant)
91*111*32mm
(excluding antenna )
Power Consumption ≤18W ≤15W ≤10W
Voltage Input DC12V 9V-48V 9V-16V  9V-16V
Housing High strength metal housing
IP Degree IP30
Operating humidity 5~95%RH
Operating temp. -20~+75°C -40~+85°C
Storage Temp. -40~+85°C
GPON ONU Supported when GPON optical module is inserted in the optical port -
Mounting desktop、wall-mounted、din-rail
