Home > Routers > Commercial Router > 5G CPE

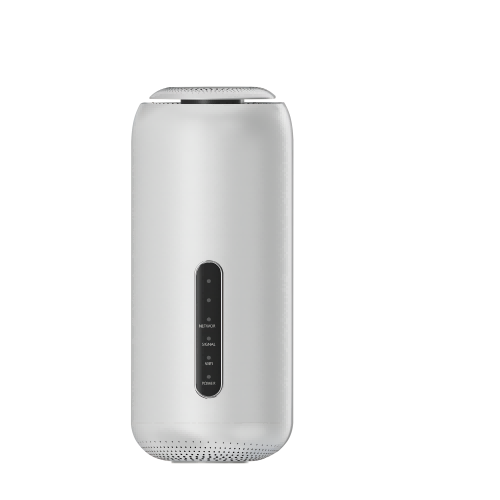

Wi-Fi6 AX3000 5G Router RG5000-W6V
Wi-Fi6 AX3000 5G Router RG5000-W6V Wi-Fi6 AX3000 5G Router RG5000-W6V Wi-Fi6 AX3000 5G Router RG5000-W6V Wi-Fi6 AX3000 5G Router RG5000-W6V Wi-Fi6 AX3000 5G Router RG5000-W6V Wi-Fi6 AX3000 5G Router RG5000-W6V Wi-Fi6 AX3000 5G Router RG5000-W6V Wi-Fi6 AX3000 5G Router RG5000-W6V Wi-Fi6 AX3000 5G Router RG5000-W6V Wi-Fi6 AX3000 5G Router RG5000-W6V

Wi-Fi6 AX3000 5G Router RG5000-W6V

4*1000M Ethernet, 2*external Nano SIM card slots,
1*built-in SMD E-SIM (optional), 1*RESET button,
1*WPS/MESH button, 1*DC power interface
1*USB interface (for debugging purposes only)
Request Quote Need technical support
Description HD Image + Main Features Technical Specification Applications FAQ
Description
RG5000-W6V 5G CPE AX 3000 Wi-Fi 6, eSim,  4 Gigabit Ethernet, Easy Mesh

*Support 4 Gigabit Ethernet port
*One-click Mesh networking
*2.4GHz +5GHz dual-band Wi-Fi6 AX3000, higher speeds, lower latency, wider coverage
*High-speed 5G, 5G downlink max to 2.5Gbps
*From 5G to Wi-Fi, Multiple device can share Ultra-Fast 5G.
*It integrates 5G/WIFI6/routing/ switching/ security technology etc
* Compatible with all type of 5G/4G SA/NSA networking, Covers mainstream frequency bands around the world
*Built-in 4 cellular antennas, 5*WIFI built-in antennas; Annular layout without occlusion, Make sure the signal is captured
*Support OFDMA, allowing your network to access more users, handle dozens of devices at the same time
*APP remote management
*5G/wire broadband dual uplink
*It will be widely used in commercial office, smart home, smart education, smart city, smart security, smart medical, smart retail, smart media and other industries.
HD Image + Main Features
Dual band WiFi 6 AX3000 5G CPE
5G to WiFi6 Enterprise Router RG5000-W6V 5G downlink Max 2.5Gbps Wi-Fi6 3000Mbps
4 Gigabit RJ45 Gigabit 5G CPE RG5000-W6V support OFDMAxMU-MIMO MESH Networking Compatible with 5G4G SA NSA

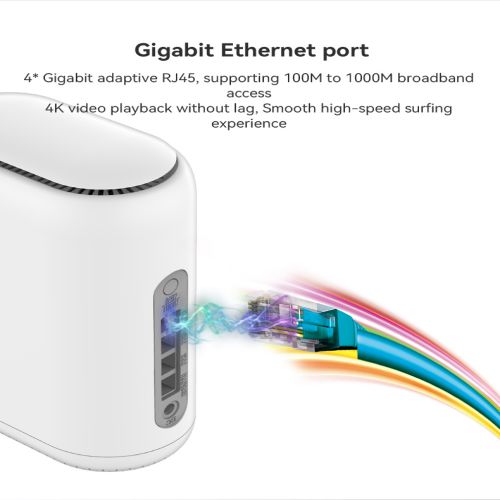

5G CPE RG5000-W6V with 4 Gigabit Ethernet port, supporting 100M to 1000M broadbandaccess, 4K video playback without lag
Wi-Fi6 AX3000 5G CPE RG5000-W6V 2.4G&5.8G dual-band Dual concurrent up to 3000Gbps,with a capacity of 32 units
Gigabit 5G to WiFi6 Enterprise Router 5G CPE RG5000-W6V support One-click mesh networking through multiple devices

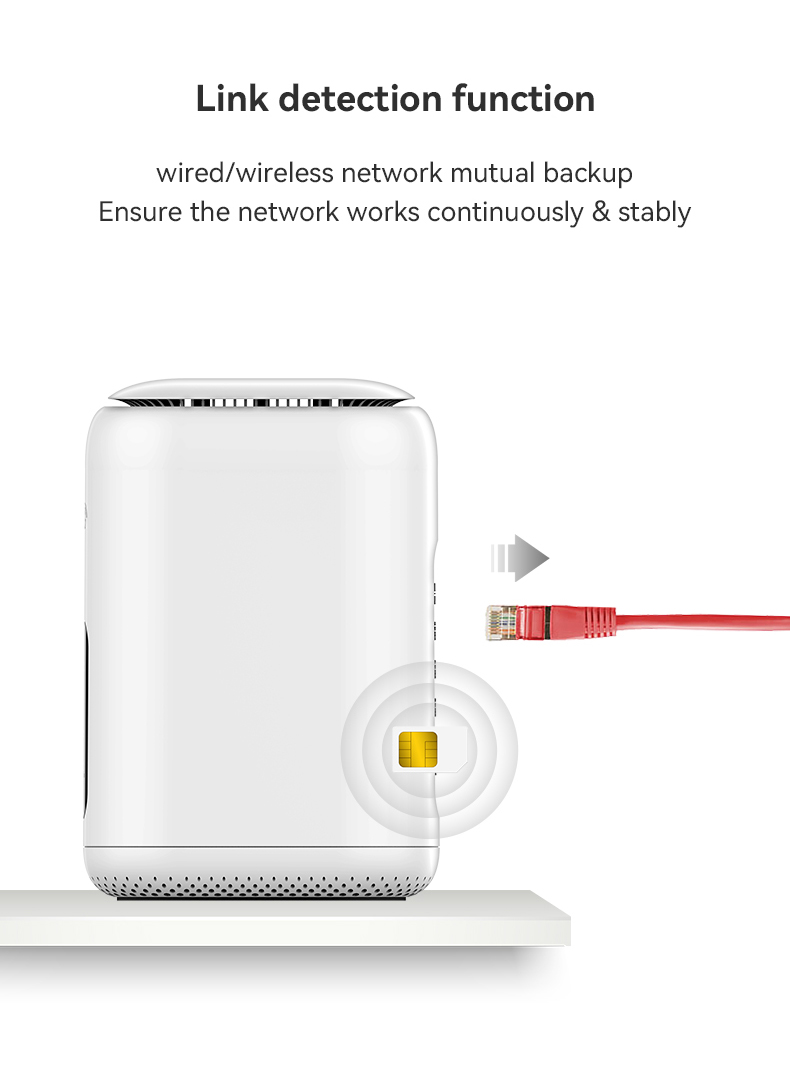

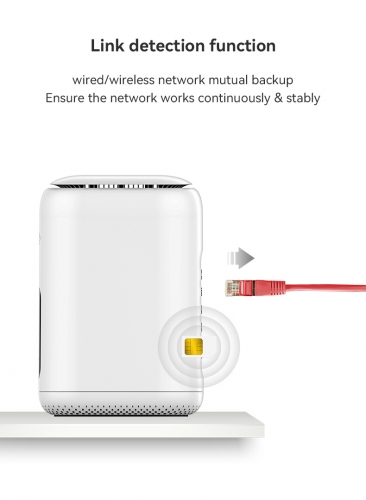

Gigabit 5G to WiFi6 Enterprise Router 5G CPE RG5000-W6V support Link detection function

5G Gigabit Enterprise Router RG5000-W6V Download speed up to 1Gbps

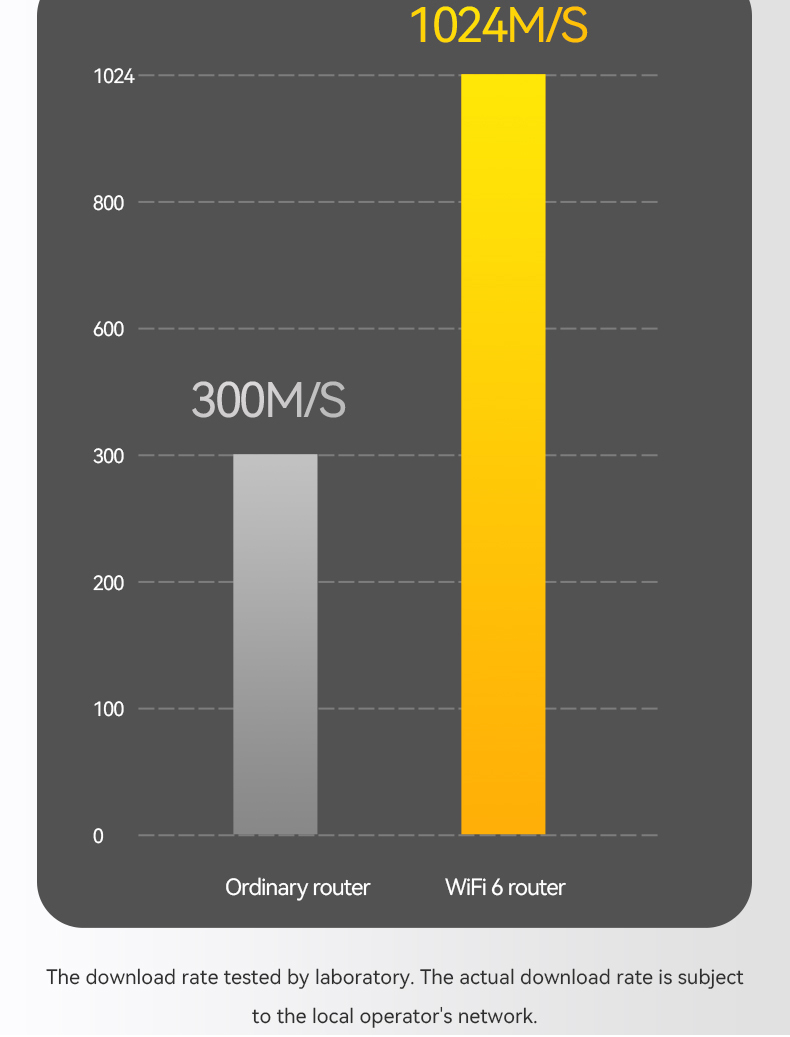

WiFi 6 Router RG5000-W6V Download speed up to 1024Mbps

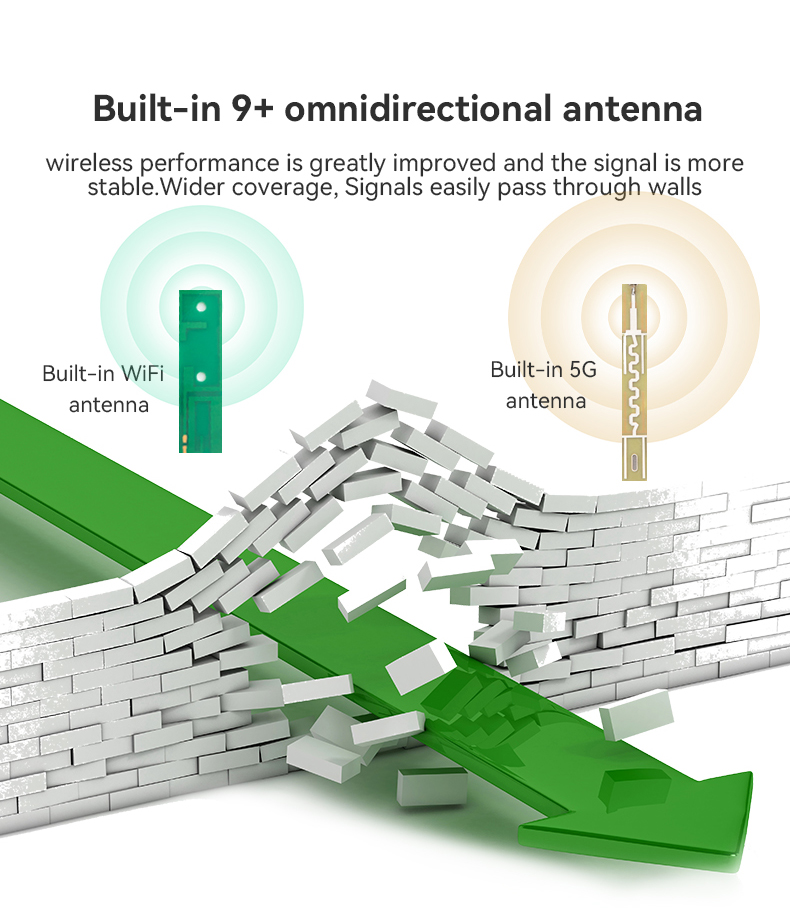

Gigabit 5G CPE RG5000-W6V with Built-in 9 omnidirectional antenna Wider coverage
5G to WiFi6 Enterprise Router RG5000-W6V support OFDMA Multiple devices works stably at the same time without lagging

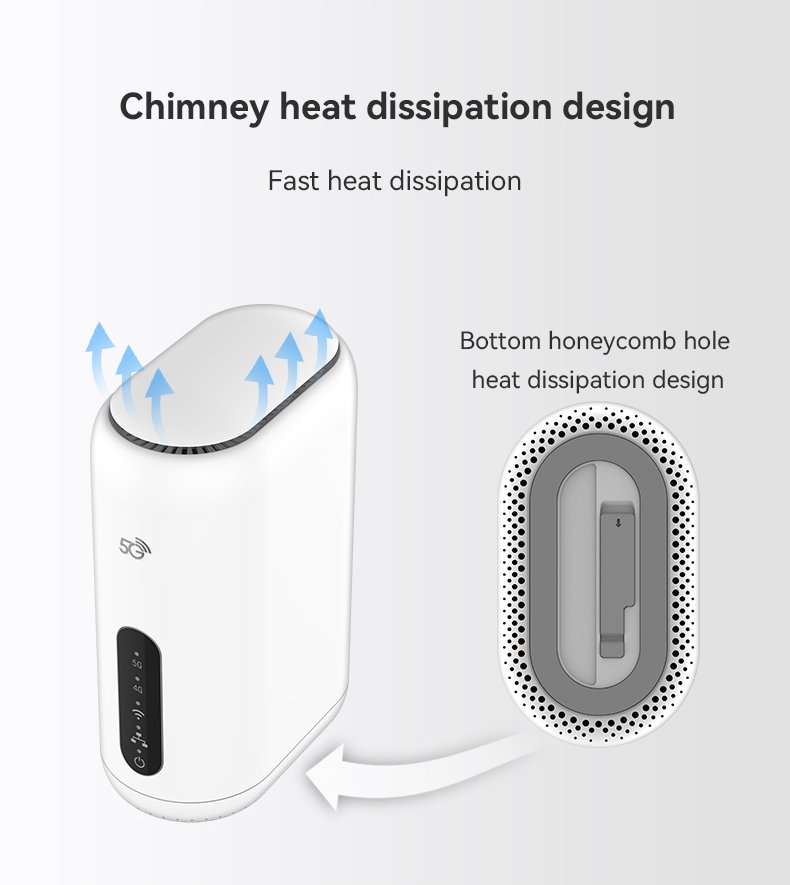

Gigabit 5G CPE RG5000-W6V Chimney heat dissipation design for Fast heat dissipation

5G CPE wireless router RG5000-W6V With Dual Sim Card Slot Application scenarios

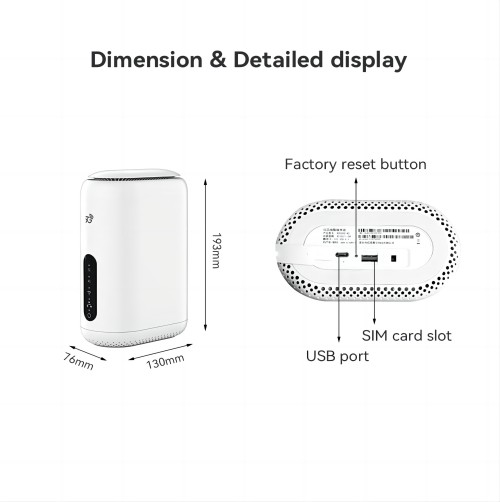

5G Router RG5000-W6V hardware interfaces
Toputel Technology Company Profile




Technical Specification
Supports 4 Gigabit Ethernet interfaces;
Compatible with all 5G/4G networks;
Supports 2.4G/5G dual-band Wi-Fi6 AX3000;
Supports one-click MESH networking and WPS functions;
Supports TWT scheduled wake-up mechanism, which can reduce Wi-Fi wireless terminal power consumption.
Supports multiple protocols: TCP/IP, UDP, HTTP, TELNET, ICMP, DHCP, PPPOE, DNS, DDNS, etc.;
Support static routing and policy routing;
Support ACL and NAT functions;
Supports firewall, packet filtering, URL filtering and other functions;
Supports configuration of VPN functions such as GRE, L2TP, IPSEC, VXLAN, etc.;
Support wired/wireless network mutual backup;
Supports link detection function and can quickly switch to the backup link based on the detection results;
Support logging function;
Support CLI, WEB and SNMP/TR069 centralized network management;
Support version upgrade and rollback functions;



Model RG5000-W6V
Fixed port 4*10/100/1000M Ethernet ports;
2*external Nano SIM card slots;
1*built-in SMD E-SIM (optional);
1*RESET button;
1*WPS/MESH button;
1*USB interface (for debugging purposes only);
1*DC power interface.
Antenna 5*WIFI built-in antennas;
4*5G built-in antennas;
Dimension 130*76*193mm(L*W*H)
power input DC12V 1.5A
Power consumption ≤18W
Operating temperature -10～+50°C
Working humidity 10～95%RH
storage temperature -40～+85°C
WIFI information
Technical standard IEEE 802.11 A/B/G/N/AC/AX
frequency band 2.412GHz-2.484GHz,
5.17-5.33GHz, 5.735GHz-5.835GHz
Rate 2.4G：2x2 MU-MIMO MU-OFDMA 576Mbps，
5.8G：2x2 MU-MIMO MU-OFDMA 2402Mbps
Maximum number of accesses 64（2.4G）+64（5G）
Modulation 802.11A/G: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11N: MCS O～7
802.11AC: MCS O～9
802.11AX: MCS O～11
cellular information RG5000-W6V-150 RG5000-W6V-160 RG5000-W6V-151
Module solution Qualcomm X55(R15) Qualcomm X62(R16)  Unisoc 510(R15)
5G NSA N41/78/79 N41/78/79 N41/78/79
5G SA N1/28/41/78/79 N1/28/41/78/79 N1/28/41/78/79
LTE-FDD B1/3/5/8 B1/3/5/8 B1/3/5/8
LTE-TDD B34/B8/39/40/41 B34/B8/39/40/41 B34/B8/39/40/41
WCDMA B1/8 B1/8 B1/8
Cellular rate RG5000-W6V-150 RG5000-W6V-160 RG5000-W6V-151
5G SA Sub-6 2.1Gbps (DL);
900Mbps (UL)		 2.4Gbps (DL);
900Mbps (UL)		 1.6Gbps (DL);
230Mbps (UL)
5G NSA Sub-6 2.5Gbps (DL);
550Mbps (UL)		 3.3Gbps (DL);
555Mbps (UL)		 1.6Gbps (DL);
150Mbps (UL)
LTE 600Mbps (DL);
200Mbps (UL)		 1.4Gbps (DL)
200Mbps (UL)		 600Mbps (DL);
150Mbps (UL)
WCDMA 42Mbps (DL);
5.76Mbps (UL)		 42 Mbps (DL);
5.76 Mbps (UL)		 42 Mbps (DL);
5.76 Mbps (UL)
