Home > Routers > Industrial Grade Router > 5G Router

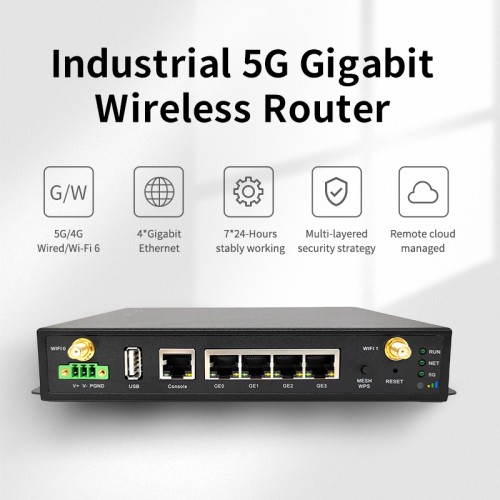

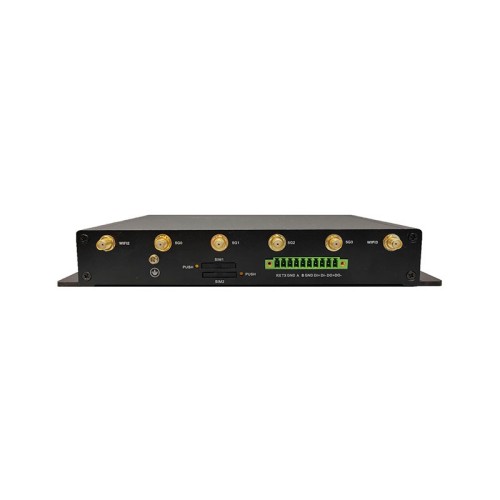

RG5000-W6M-EA RS232 RS485 DI DO Dual Sim 5G Router
RG5000-W6M-EA RS232 RS485 DI DO Dual Sim 5G Router RG5000-W6M-EA RS232 RS485 DI DO Dual Sim 5G Router RG5000-W6M-EA RS232 RS485 DI DO Dual Sim 5G Router RG5000-W6M-EA RS232 RS485 DI DO Dual Sim 5G Router RG5000-W6M-EA RS232 RS485 DI DO Dual Sim 5G Router RG5000-W6M-EA RS232 RS485 DI DO Dual Sim 5G Router

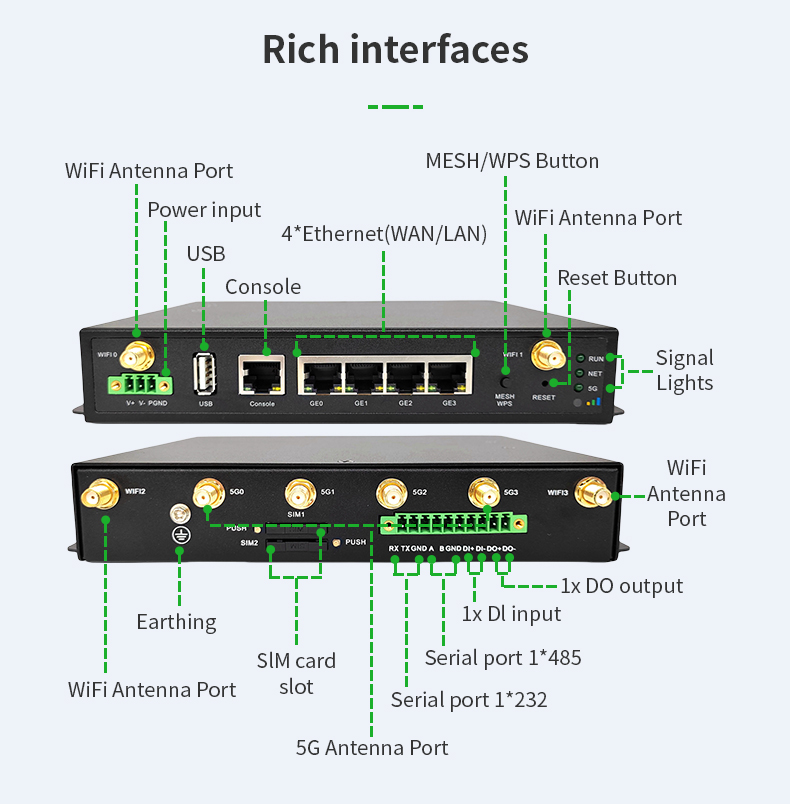

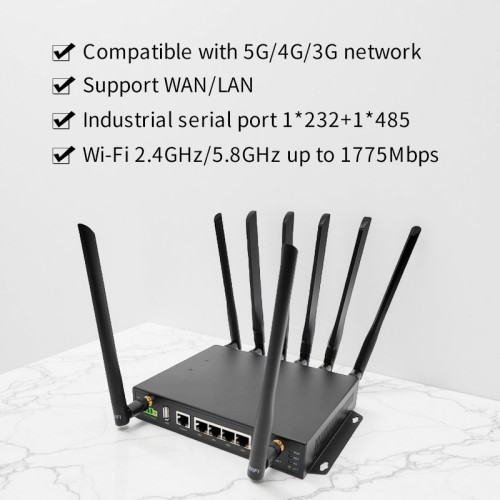

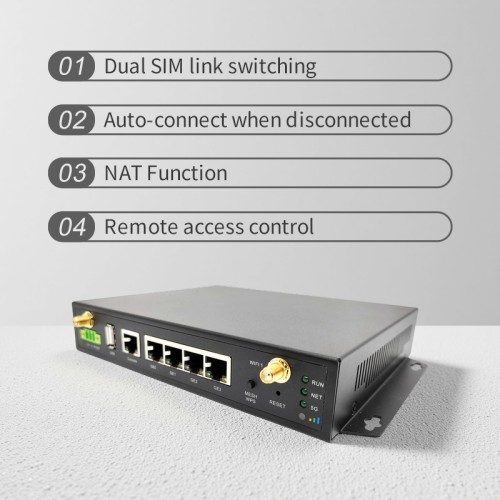

RG5000-W6M-EA RS232 RS485 DI DO Dual Sim 5G Router

4*1000M Ethernet; 2*SIM card slots;
4*5G antenna; 4*WIFI antenna;
1*USB; 1*Console;
1*RESET; 1*MESH/WPS;
1*RS232;1*RS485;
1*DI; 1*DO;
1 standard 3-core power interface;
Request Quote Need technical support
Description HD Image & Feature Technical Specification Applications FAQ
Description

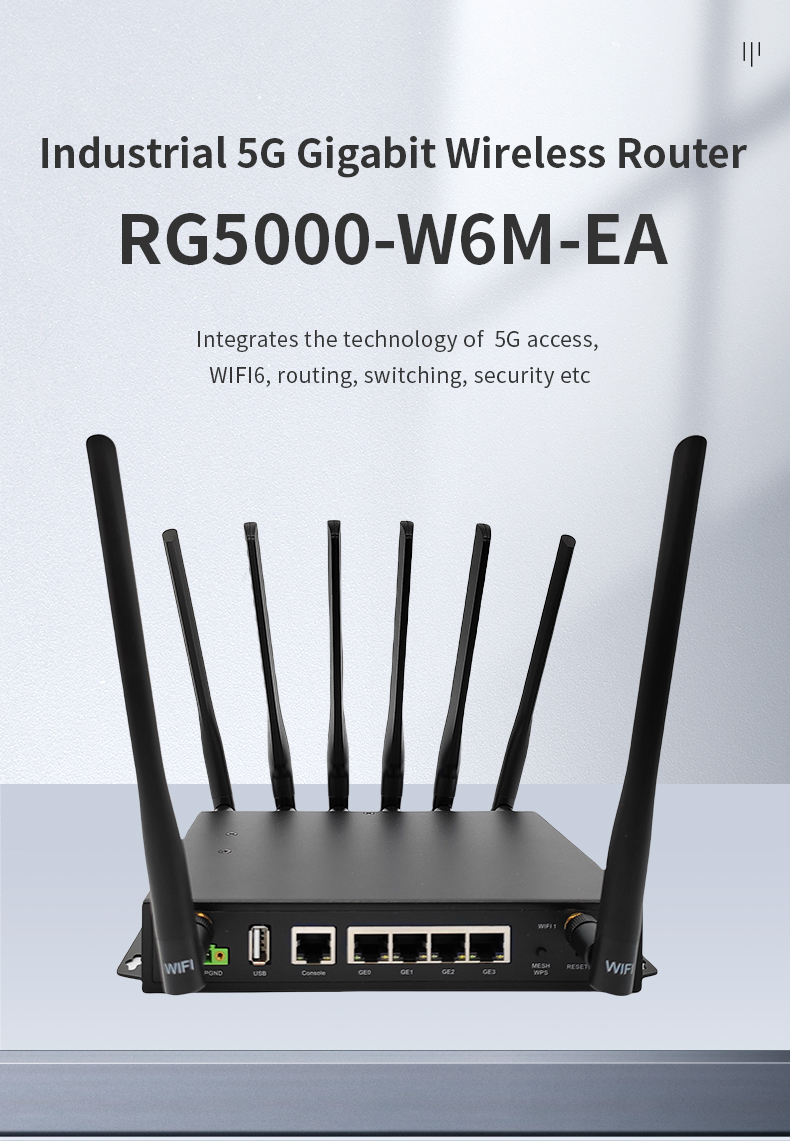

Metal Dual Band Dual Sim 5G Industrial Router Wifi6 Firewall Virtual Private Network 5G LTE Router with RS232 RS485 DI DO USB


It integrates the technology such as 5G access, WIFI6, routing, switching, security etc.
It compatible with 5G/4G networks, it comes with 4 Gigabit Ethernet, supports 802.11a/b/g/n/ac/ax WIFI, and 2.4/5.8G dual-band.The OFDMA function provides strong protection for wireless access networks by providing greater connection capabilities to connect more devices.

It can be widely used in finance, transportation, security, water conservancy, environmental protection, electricity, postal services, meteorology, energy, next-generation Internet of Things and other industries.
HD Image & Feature




Technical Specification
Technical Features：

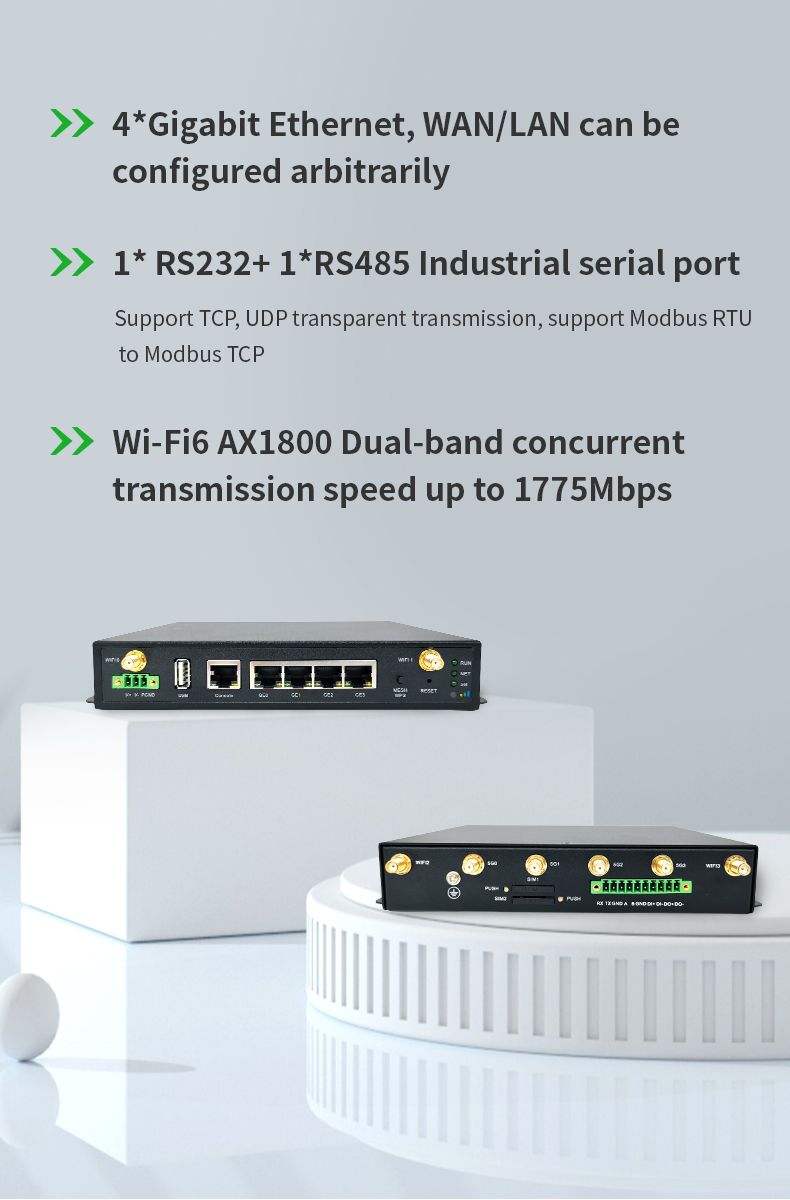

  1. Supports 4*10/100/1000M Ethernet interfaces, and WAN/LAN can be configured arbitrarily;
  2. Compatible with 5G/4G networks;
  3. Supports 802.11a/b/g/n/ac/ax WIFI, 2.4G/5.8G dual-band;
  4. Supports one-key MESH networking function and WPS function;

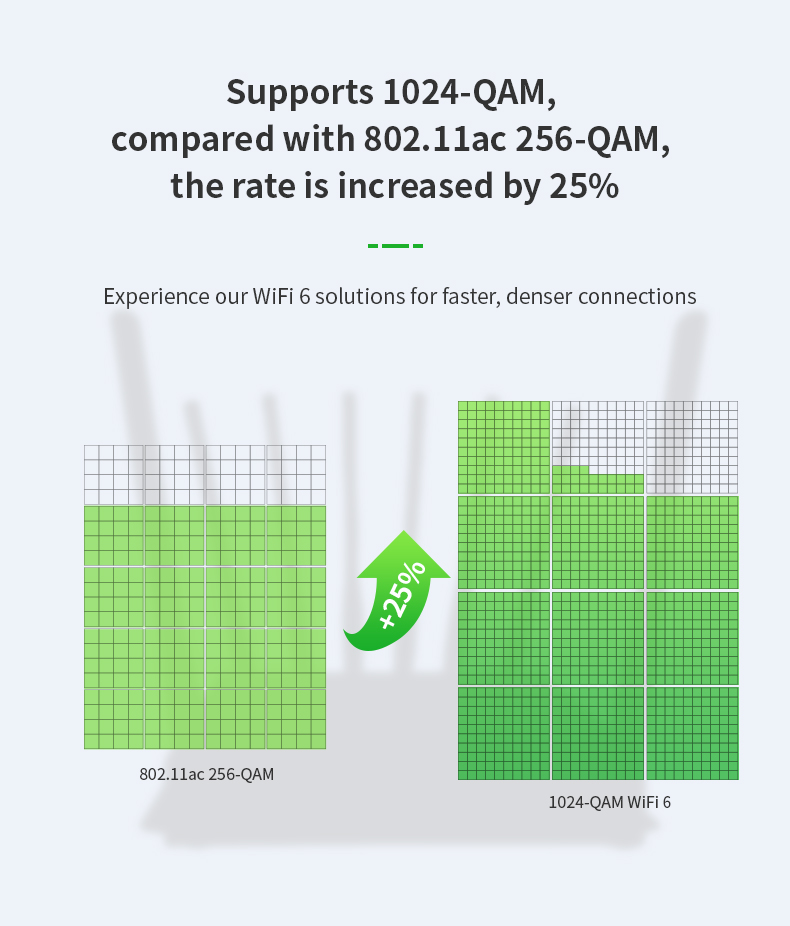

  5. Supports 1024-QAM, compared with 802.11ac 256-QAM, the rate is increased by 25%;
  6. Support OFDMA, separate a single spectrum into multiple units, and enable different devices to share a transmission stream, thereby improving efficiency and reducing latency;
  7. Support multiple protocols: TCP/IP, UDP, HTTP, TELNET, ICMP, DHCP, PPPOE, DNS, DDNS, etc.;
  8. Support static routing and policy routing;
  9. Support RIP/OSPF routing protocol;
  10. Support ACL, NAT function;
  11. Support firewall, packet filtering, URL filtering and other functions;
  12. Support configuration of VPN functions such as GRE, L2TP, IPSEC, EOIP, VXLAN,ZeroTier etc.;
  13. Support DLDP link detection function, and can quickly switch to the backup link according to the detection results;
  14. Support log function;
  15. Support CLI, WEB and SNMP/TR069 centralized network management;
  16. Support version upgrade and rollback function.


Specification

Model RG5000-W6M-EA
Fixed Port 4*10/100/1000M Ethernet interfaces;
2*SIM card slots;
4*5G antenna interfaces;
4*WIFI antenna interfaces;
1*USB interface;
1*Console port;
1*RESET button;
1*MESH/WPS button;
1*RS232 interface;
1*RS485 interface;
1*DI interface;
1*DO interface;
1 standard 3-core power interface;
5G/4G 5G NR NSA：N1/3/7/28/38/40/41/77/78
5G NR SA：N1/3/5/7/8/20/28/38/40/41/66/77/78
LTE-FDD：B1/2/3/4/5/7/8/20/ 28/66
LTE-TDD：B38/40/41
WCDMA：B1/2/5/8
WIFI IEEE 802.11ax/n/b/g 2.4GHz - 574Mbps
IEEE 802.11ax/ac/n/a 5GHz - 1201Mbps

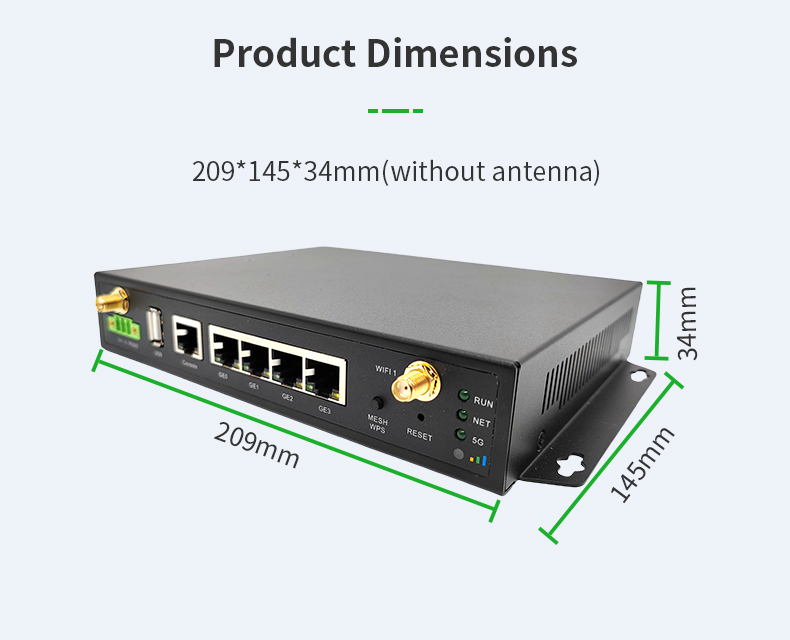

Dimensions 209*145*34mm(without antenna)
power input DC12V 1.5A
 Power consumption ≤18W

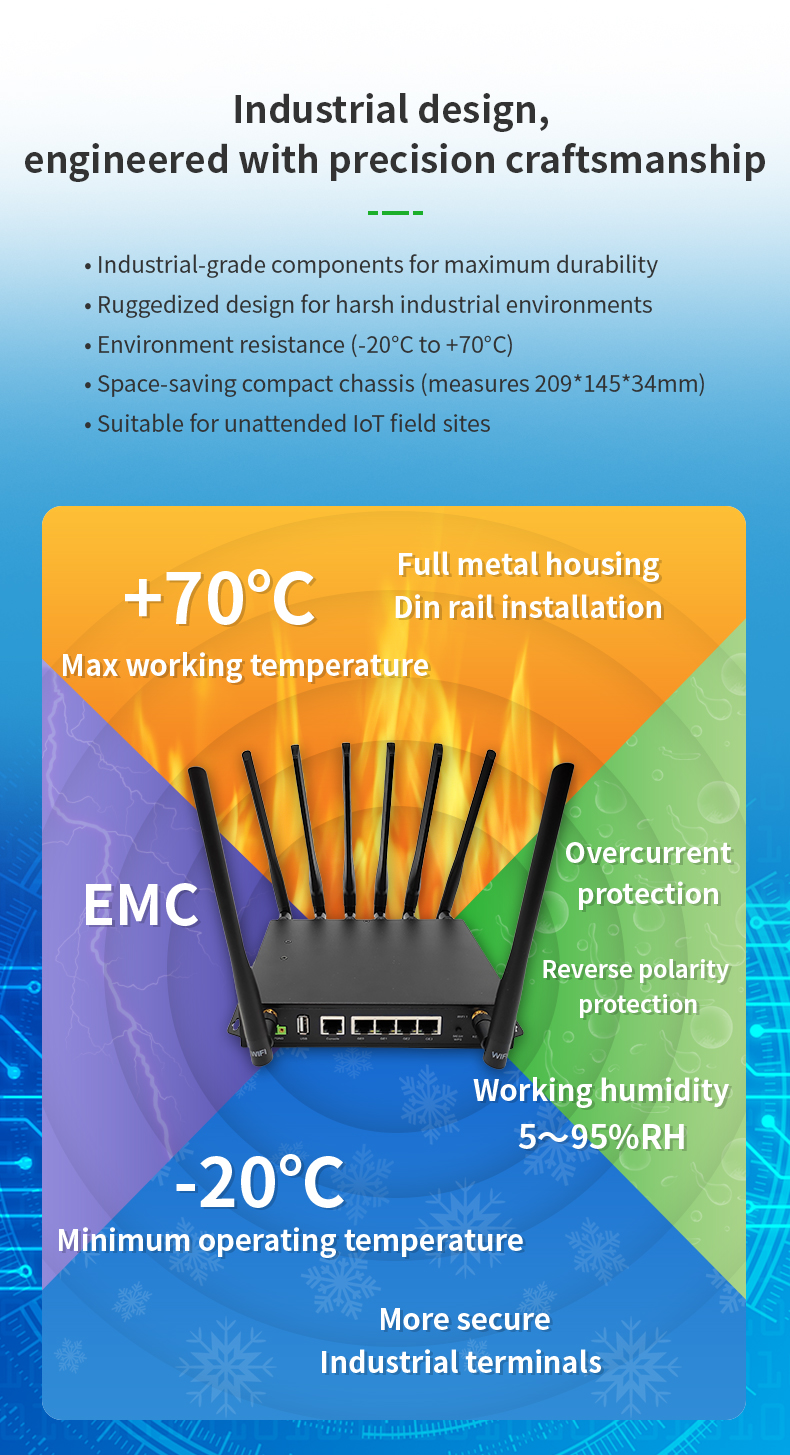

Structural design -20～+70°C
Operating temperature -40～+85°C
Working humidity 5～95%RH
storage temperature Desktop, wall-mounted, rail-mounted

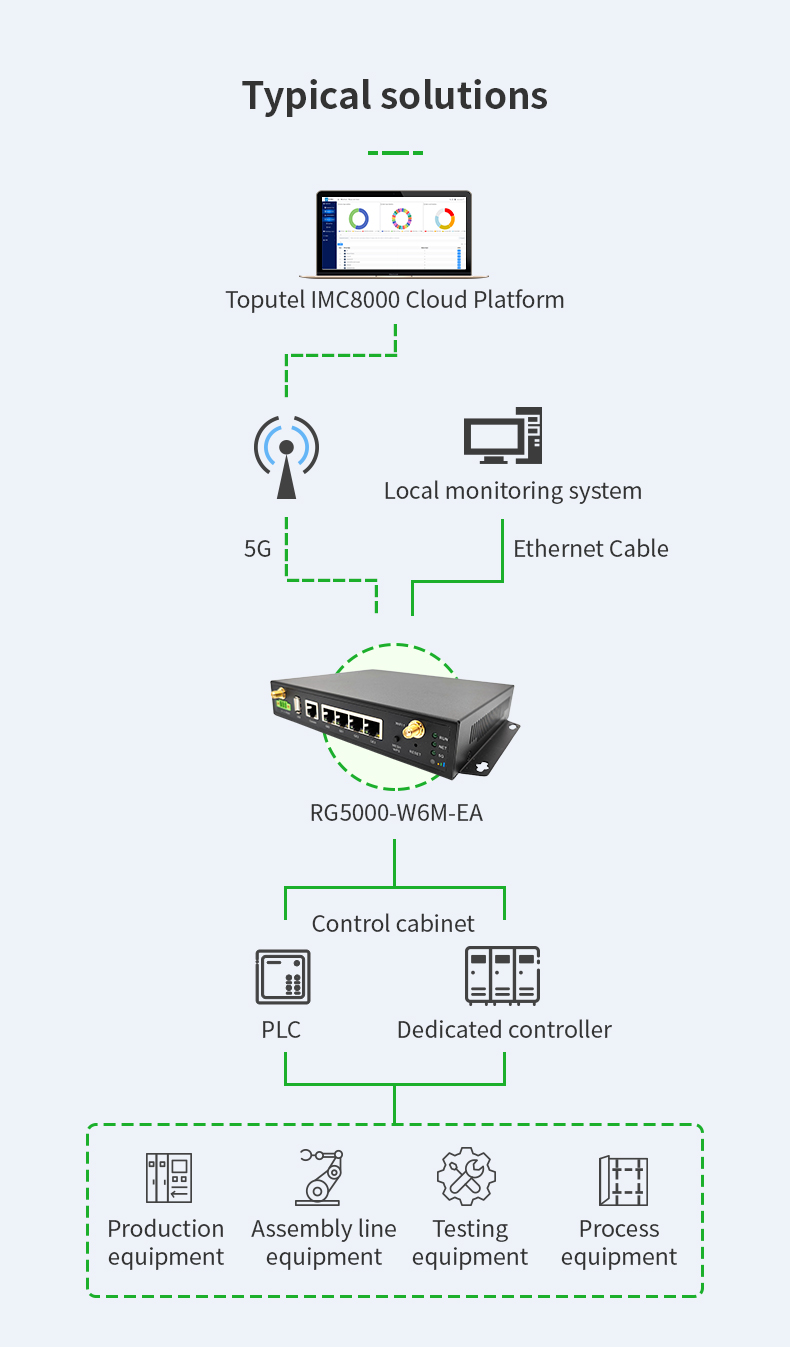

Applications




FAQ
Q
What is the price?
A
  • Our prices will be adjusted according to raw material cost and other market factors. Please kindly contact us for the latest price list.
Q
What is your MOQ?
A
  • No MOQ for sample. Generally, the larger the quantity, better the unit price and freight will be
Q
​​​​​​​What is your Trade terms?
A
  • Trade terms EXW as default. More trade terms such as FOB, FCA etc for optional. We need to make official export declaration for the goods
Q
Which payment method is accepted?
A
  • For small batch, customer can order the product from our website directly.
    For big batch, we accept the payment term by T/T. 30% downpayment, and 70% of the balance paid before shipment.
More
Q
​​​​​​​What's the lead time?
A
  • Sample order: 5-14 days
  • The bulk order: about  2-4 weeks, depends on the raw material leadtime, especially up to the chipset.
Q
How about the shipment?
A
  • By Express, such as DHL, Fedex, TNT, UPS, EMS etc
  • By Sea
  • By Air
  • By railway
  • Forwarder
  • We will help to select the most economical way for your reference
Q
What certification you obtained for your products?
A
  • Some products win approval of CE, ROHS, Weee etc. If you have specific approval requirements, please kindly feel free to contact us.
Q
How long is the product warranty period?
A
  • Warranty period is 1 year, calculated from the date of delivery. During the warranty period, we will provide replacement parts for free for the product quality problems caused by its own design failure.
