4G Industrial Outdoor Router | IP65 Waterproof & Aluminum Enclosure for Harsh Industrial Networking | RG4000-S4H

2*1000M Ethernet, its WAN port supporting PoE power receiving;
2*Plug-in SIM card slots;
1*RS485; 1*RS232;
2*4G antenna interface;
2*WIFI antenna interface;
1*DC power interface;
3*indicator (RUN, NET, 4G)
Description HD Image & Feature Technical Specification Applications FAQ
Description
RG4000-S4H is an industrial 4G WiFi router, particularly designed for outdoors use.

It boasts an IP65 ingress protection rating with waterproof and dustproof design, and features an aluminum enclosure suitable for harsh industrial network environments. Widely used in various outdoor equipment data access to the Internet, such as video surveillance (solar street lights, lighting poles, base stations, towers), as well as remote control of unmanned vehicles (mining and agricultural unmanned vehicles, patrol robots etc.)


Product features:
* 4G cellular modem,  compatible with 3G
* Dual SIM slot, avoid data transmission disconnect, auto-reconnect
* 4G to WiFi6
* support WiFi sensors and WiFi camera access to internet
* WiFi6 support 1800Mbps
* Excellent wireless transmission capacity, support up to 64pcs WiFi devices, WiFi transmission distance up to 50M
* Support PoE power receiving
* Not only power adapter,  you can power the router device by PoE too.
* GPS optional , for tracking ships, trains, vehicles etc.
* provide free software for devices batch management, both on-premise and cloud deployment.
* support various VPN and customization
* Built-in firewall,  ensure network security
* Ingress Protection Rating IP65, waterproof and dustproof
* particularly suitable for  various outdoors equipments and engineering vehicles
* Product Material : PC+ABS Plastic Top Cover + Cast Aluminum Base



HD Image & Feature
AX1800 Outdoor ODU WiFi 6 2.4G/5.8G RG4000-S4H
RG4000-S4H Outdoor 4G industrial router Dual SIM to WiFi6 waterproof IP66 VPN customization Free software for device management PoE

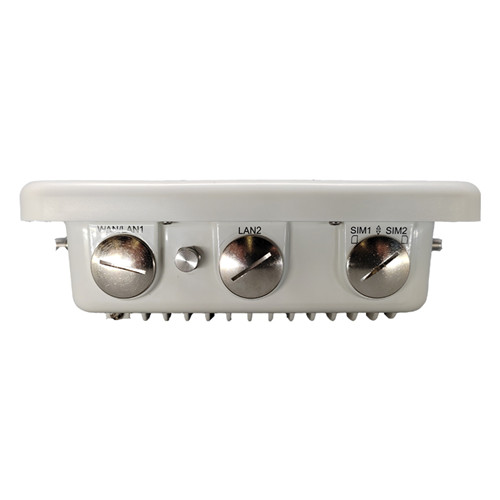

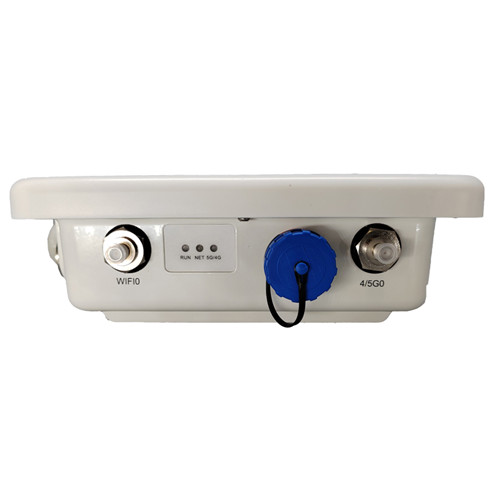

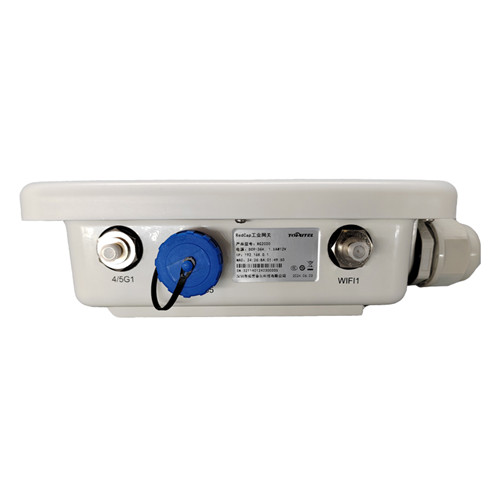

hardware interfaces- Outdoor 4G Industrial Router RG4000-S4H
Router device size, placed on light-pole for video surveillance + solar data collection  - Outdoor 4G Industrial Router RG4000-S4H
Interfaces waterproof design, WAN network failover to cellular- 4G Industrial Router RG4000-S4H

4G to WiFi6  router Long range 50 meter,  Max 64 WiFi devices access, speed 1800Mbps
Support PoE power receiving  Power adaptor Two optional to power on the router device-  - Outdoor 4G Industrial Router RG4000-S4H
Dual SIMs  auto-switching cellular auto-reconnect server - 3G, 4G LTE, Outdoor Industrial Router RG4000-S4H
Built-in firewall and support various VPN and customization- 4G Outdoor Industrial Router RG4000-S4H
packing list - Outdoor 4G Industrial Router RG4000-S4H
5G Industrial Router RG5000-OD with RS232 or 485  product application topology diagram
Technical Specification
  1. With 2*Gigabit Ethernet, of which the WAN port supports PoE power supply;
  2. 4G cellular module,  compatible with 4G LTE/3G/2G
  3. Dual SIM slot, avoid data transmission disconnect, auto-reconnect
  4. 4G to WiFi6
  5. Excellent wireless transmission capacity, max support 64pcs WiFi devices, WiFi transmission distance up to 50M
  6. Supports 4G/3G/2G;
  7. Supports 802.11a/b/g/n/ac/ax 1800Mbps WIFI, 2.4G/5.8G dual-band;
  8. Supports multiple protocols: TCP/IP, UDP, HTTP, TELNET, ICMP, DHCP, PPPOE, DNS, DDNS, etc.;
  9. Supports static routing and policy routing;
  10. Supports RIP/OSPF routing protocols;
  11. Supports ACL, NAT functions;
  12. Supports firewall, packet filtering, URL filtering and other functions;
  13. Supports configuration of VPN functions such as GRE, PPTP, L2TP, IPSEC, OpenVPN, VXLAN, ZeroTier, etc.;
  14. Supports link detection function, and can quickly switch to the backup link according to the detection results;
  15. Supports log function;
  16. Supports CLI, WEB and SNMP/TR069 centralized network management;
  17. Supports version upgrade and rollback function.

Model RG4000-S4H
Fixed Port 2*10/100/1000M Ethernet ports, where the WAN port supports PoE power;
2*Plug-in SIM card slots;
1*SMD SIM card (optional);
1*RS485 port;
1*RS232 port;
2*4G antenna ports;
2*WIFI antenna ports;
1*DC power port;
3*indicator lights (RUN, NET, 5G/4G).
4G/3G LTE-FDD: B1/B3/B7/B8/B20/B28A;
LTE-TDD: B38/B40/B41;
WCDMA: B1/B8;
GSM: B3/B8
WIFI 802.11 a/b/g/n/ac/ax1800Mbps
Dimension 189*189*68mm (excluding antenna and pendant)
Power consumption ≤18W
Power input (1) DC9-36V, typical value 12V 1.5A;
(2) PoE power supply, typical value 0.5A@48V.
Structural design High-strength metal housing
Protection level IP66
Operating temperature -30+75°C
Working humidity 595%RH
Storage temperature -40+85°C
Installation Wall-mounted, pole-mounted
Applications

  1. Outdoor 4G Industrial Router RG4000-S4H- Video monitoring areaOutdoor 4G Industrial Router RG4000-S4H- Smart manufacturingOutdoor 4G Industrial Router RG4000-S4H- Smart retailsOutdoor 4G Industrial Router RG4000-S4H-  Smart logistics and warehousingRG4000-S4H-  Infrastructures operating condition data acquisition and digital transformation
FAQ
Q
What is the price?
A
  • Our prices will be adjusted according to raw material cost and other market factors. Please kindly contact us for the latest price list.
Q
What is your MOQ?
A
  • No MOQ for sample. Generally, the larger the quantity, better the unit price and freight will be
Q
​​​​​​​What is your Trade terms?
A
  • Trade terms EXW as default. More trade terms such as FOB, FCA etc for optional. We need to make official export declaration for the goods
Q
Which payment method is accepted?
A
  • For small batch, customer can order the product from our website directly.
    For big batch, we accept the payment term by T/T. 30% downpayment, and 70% of the balance paid before shipment.
More
Q
​​​​​​​What's the lead time?
A
  • Sample order: 5-14 days
  • The bulk order: about  2-4 weeks, depends on the raw material leadtime, especially up to the chipset.
Q
How about the shipment?
A
  • By Express, such as DHL, Fedex, TNT, UPS, EMS etc
  • By Sea
  • By Air
  • By railway
  • Forwarder
  • We will help to select the most economical way for your reference
Q
What certification you obtained for your products?
A
  • Some products win approval of CE, ROHS, Weee etc. If you have specific approval requirements, please kindly feel free to contact us.
Q
How long is the product warranty period?
A
  • Warranty period is 1 year, calculated from the date of delivery. During the warranty period, we will provide replacement parts for free for the product quality problems caused by its own design failure.
Less
