48-Port All-Optical SFP Network Switch | Hot-Swappable Redundant PSU & 10G Uplinks | TOP-S5800-52SX

Description Applications FAQ

Description

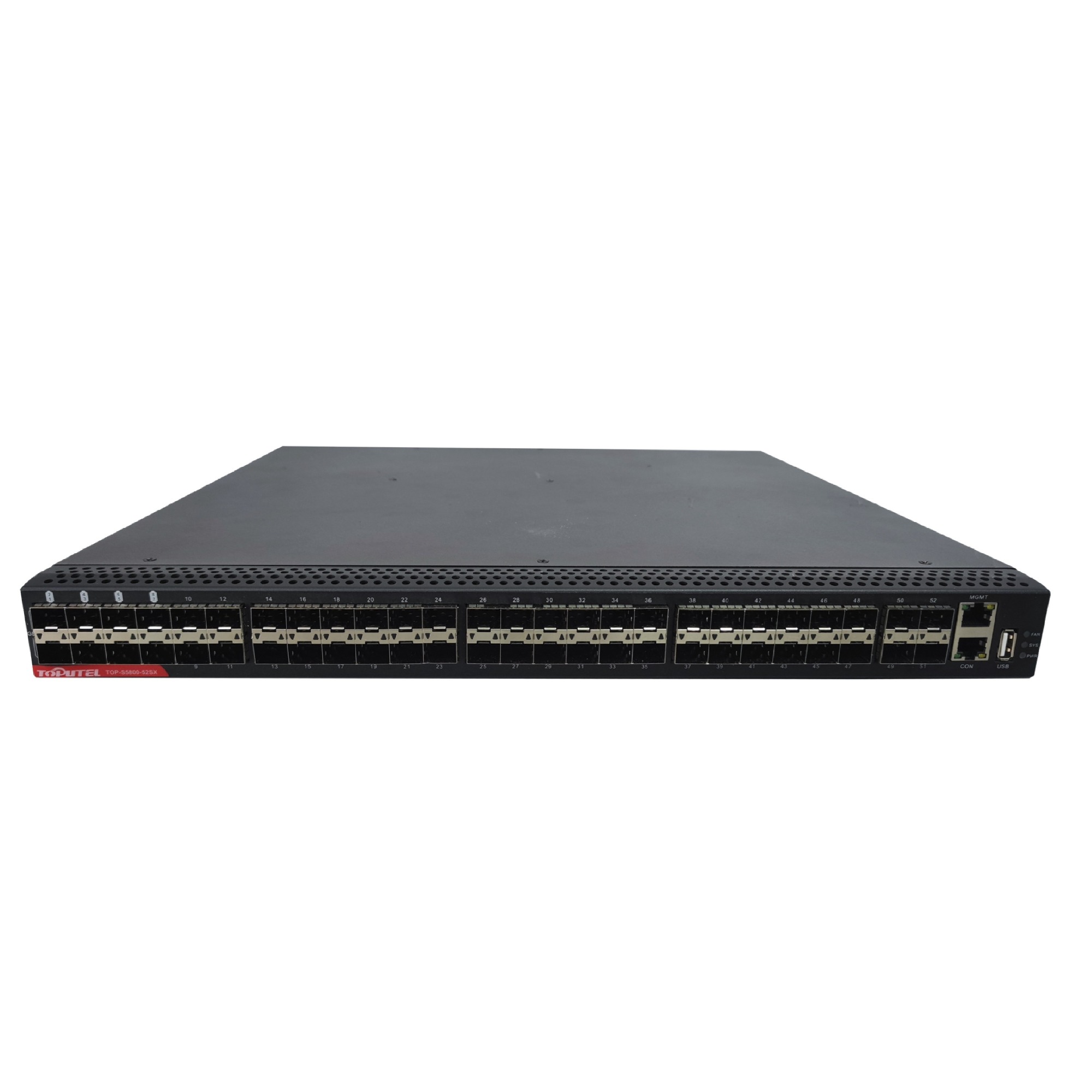

TOP-S5800-52SX is totally optical switch with 48-port Gigabit SFP

Layer3 managed network switch TOP-S5800-52SX，features with All-Optical Ports and Redundant Dual PSU Modules hot-swappable.
10 Gigabit high-bandwidth uplinks, good for long-distance transmission.
It can be used as aggregation device or access device, depending on the scenario. Key applications include:
● Large campus (core/aggregation layer, large optical coverage).
● Small and medium-sized data centers (rack-mounted, low-latency).
● Cross-regional networks（data aggregation + long-distance transmission）
For more detailed descriptions, please refer to the "Applications" tab.

Product Features

● All-Optical ports: 48 x SFP ports, 4 x10 Gigabit SFP+ ports for uplink , suitable for long-distance transmission networking

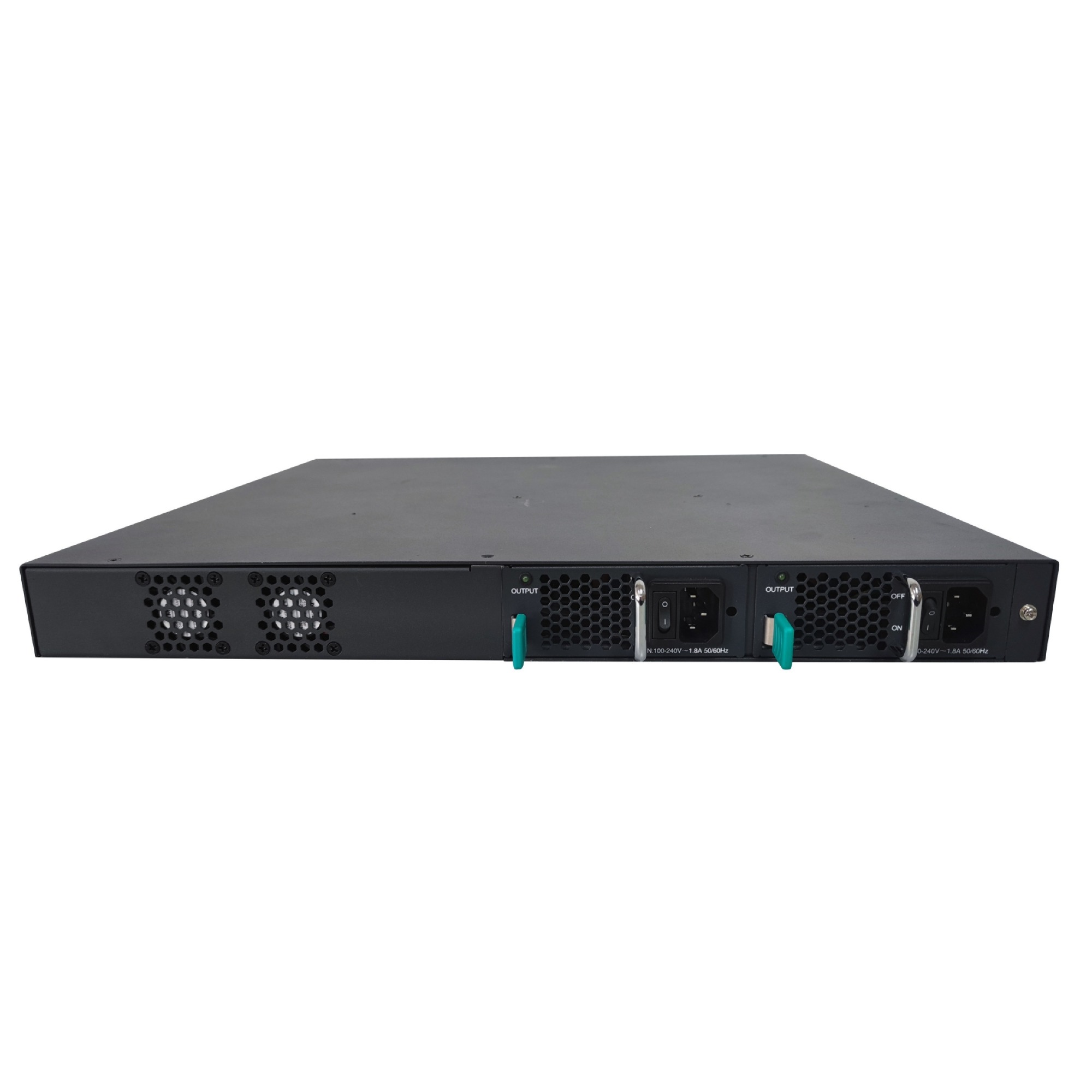

● Hot-swappable dual modular PSU, AC and/or DC power supply, supporting 1+1 redundancy
Power Supply: 1+1 Redundant PSU Architecture (Dual Pluggable Power Supply Modules), Hot-swappable
● Multiple network security strategies, real-time monitoring, to ensure stable network operation
● Full support for IPv4/IPv6 layer 2 and 3 protocols
● Multiple network management methods, simple and easy network maintenance

Product Specification

Product Model		TOP-S5800-52SX
Performance Parameters
Packet forwarding rate (PFR)		150Mpps
Switching capacity(SC)		120 Gbps
Chipset model		NF5180
Processor		Dual-core 1.1GHz
RAM Memory		1GB of DRAM
Flash		512MB
Hardware specifications
Physical Ports		48 x Gigabit SFP optical Ports, 4 x 10G SFP+ optical Ports for uplink
Management Interface		1 x Console configuration port, 1 x RJ45 network management port , 1 x USB configuration port, 1 Reset button
USB interface		1
Dimensions (W×D×H)		440 x 415 x 44 mm
Power consumption (MAX)		73 Watt
Power supply		2 x pluggable PSU modules Input voltage (AC): 100V ~ 240V, 50Hz ~ 60Hz Input voltage (DC): -40～-57V ( not factory default, need to pay additional cost)
Temperature		Working temperature: -10℃～55℃
		Storage temperature: -40℃ to 70℃
Humidity		Working humidity: 10% ~ 90%, non-condensing
		Storage humidity: 5% to 95%, non-condensing
MTBF time		100,000 hours
MAC Capacity		64K
VLAN		4K
Lightning protection capability of service ports		7KV
Software Features
Link layer protocol and technologies	Local area network	Support MAC address learning number limit; static MAC configuration; black hole MAC
		Dynamic and static ARP, proxy ARP, gratuitous ARP
		Ethernet, Ethernet II, VLAN, 802.3x, 802.1p, 802.1q
		Support VLAN based on port , MAC, protocol, IP subnet Support VLAN Mapping and Voice VLAN
		QinQ, Flexible QinQ
		STP/RSTP/MSTP
		LACP (IEEE802.3ad)
		Many-to-one port mirroring, remote port mirroring ERSPAN, flow mirroring
Network Protocol	Routing Protocols	Static Routing
		RIP v1/v2, RIPng
		OSPF, OSPFv3
		BGP, BGP4+
		IS-IS Routing Protocol
		Equal-cost routing, routing strategy
	Multicast Protocol	IGMP v1/v2/v3、MLD v1/v2
		IGMP Snooping、MLD v1/v2 Snooping
		PIM-DM、PIM-SM、PIM-SDM、PIM-SSM
	IP application	DHCP Server、DHCP Client、DHCP Relay、DHCP Snooping、Option 82
		DHCPv6 Server、DHCPv6 Client、DHCPv6 Relay
		DNS
		FTP Server、FTP Client, TFTP Client
		Ping、Trace
		IP Accounting、NTP
	IPv6	IPv6 Basic Functions: IPv6 ND (Neighbor Discovery), IPv6 PMTU (Path MTU Discovery), IPv6 FIB (Forwarding Information Base)，IPv6 ACL
		IPv6 Tunnel Technologies: Manual Tunnel, GRE Tunnel, 6to4 Tunnel, ISATAP Tunnel Hardware-backed IPv4/IPv6 Dual Stack, Layer 3 Wire-speed Forwarding
Network security	port	Port security, port isolation
	ARP	ARP Guard, DAI, Static ARP Bundling, ARP Proxy, Free ARP
	ACL	Standard IP ACL, extended IP ACL, standard MAC ACL, extended MAC ACL , IPv6 ACL
	Safety protection		Control plane protection, CPU protection
	DDOS attack prevention		ICMP Flood interception, Smurf attack interception, Fraggle attack interception, LAND attack interception, SYN Flood attack interception
	Certification		Local authentication, Radius, Tacacs+, AAA
QoS	Traffic Classification		Based on port, MAC address, IP address, IP priority, DSCP priority, TCP/UDP port number, protocol type, etc.
	Traffic policing		CAR
	Congestion Management		SP , WRR , SP+WRR
	Congestion Avoidance		RED, WRED
	Link reliability		Support BFD for BGP/IS-IS/OSPF/VRRP, etc.
			Support Keepalive Gateway
			Support VRRP
Data Center Features	Vxlan Technology		Vxlan cross-data center interconnection (not available yet, pending)
OAM	Device Management		Port Line Detection (VCT) (not available yet, pending)
	Network Management		SNMP v1/v2/v3 , MIB , SYSLOG
	System Management		Console port login management, Telnet (VTY) remote management, SSH management, WEB management
	Network Quality Assurance (SLA)		ICMP ECHO , ICMP-PATH-ECHO , ICMP-PATH-JITTER , JITTER , UDPECHO , FLOW-STATISTICS and other protocol tests
			Support network delay, jitter, packet loss rate and other tests

Pluggable dual modular PSU redundancy, supporting AC andor DC input

Advanced Network Capabilities support IPV4/PV6 Layer 2 and Layer 3 protocolSupport Spanning tree, VLAN, multicast and multiple routing protocolHardware support iPV4/iPV6 dual stack and tunnel technologyLayer 3 wire speed forwarding IPV6

Wide application scenarios Toputel Network switchesAdapts to complex environmentsWide application scenarios campus intelligence,Enterprise EfficiencyHospital ReliabilityData center speed campus Hotel Enterprise Park Data center

network switches Typical networking and centralized Network Management Supports SNMP V1/2/V3, MIB, SYSLOG

Multiple Projects, Multiple Wins , Toputel company network switches prove its worth by winning many tenders with telecom operators

Applications

48-port SFP optical switches are particularly suitable for

● Large-Scale Campuses
Serves as an aggregation switch to connect access-layer switches across multiple buildings, making it ideal for large-scale campuses with multiple buildings and branches. It enables unified network management and stable data transmission across the entire campus.

● Small-to-Medium Data Centers
Deployed as a top-of-rack (ToR) access switch, it supports fiber-optic connectivity for multiple servers in data centers. This configuration meets the low-latency transmission requirements of servers and storage devices, ensuring efficient data exchange and business continuity.

● Cross-Regional Network Construction
Leverages dual advantages of long-distance transmission and data aggregation, specifically designed to overcome the 100-meter transmission limit of traditional Ethernet cables...

Typical Applications

● For large industrial manufacturing enterprises with multiple factories distributed across regions (with inter-factory distances up to several kilometers), the 48-port SFP optical switch enables cross-regional network deployment. It allows real-time transmission of product defect images captured by industrial cameras to the quality inspection center of the main factory, and synchronizes inventory changes in warehousing areas to the main factory’s management system—effectively avoiding production disruptions caused by data asynchronization.

● In urban infrastructure development, the 48-port SFP optical switch can also connect municipal facility monitoring devices across different areas, realizing unified aggregation and management of cross-regional data for smarter urban operations.

FAQ

What is the price?

Our prices will be adjusted according to raw material cost and other market factors. Please kindly contact us for the latest price list.

What is your MOQ?

No MOQ for sample. Generally, the larger the quantity, better the unit price and freight will be

What is your Trade terms?

Trade terms EXW as default. More trade terms such as FOB, FCA etc for optional. We need to make official export declaration for the goods

Which payment method is accepted?

For small batch, customer can order the product from our website directly.
For big batch, we accept the payment term by T/T. 30% downpayment, and 70% of the balance paid before shipment.
